| product or component type |

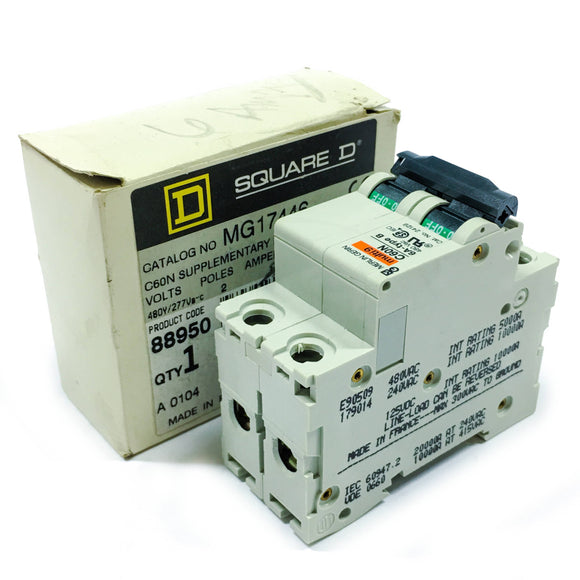

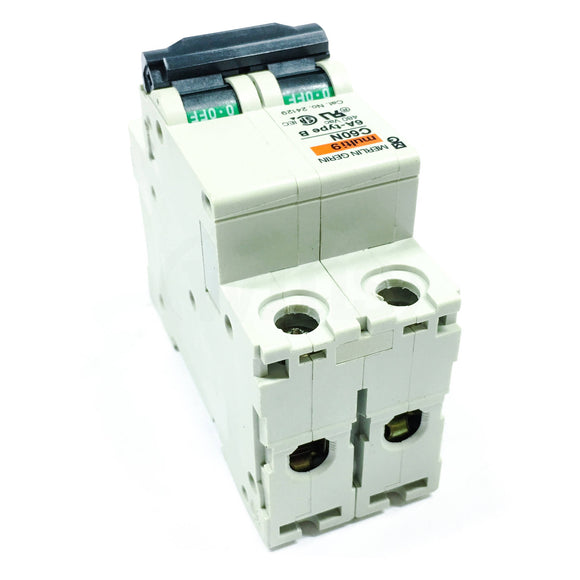

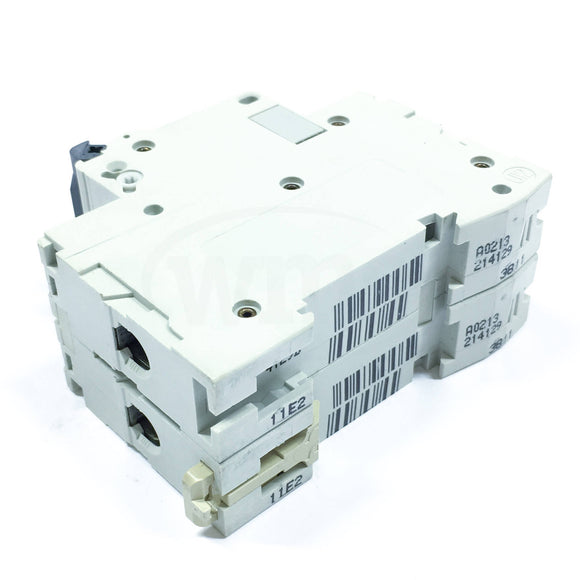

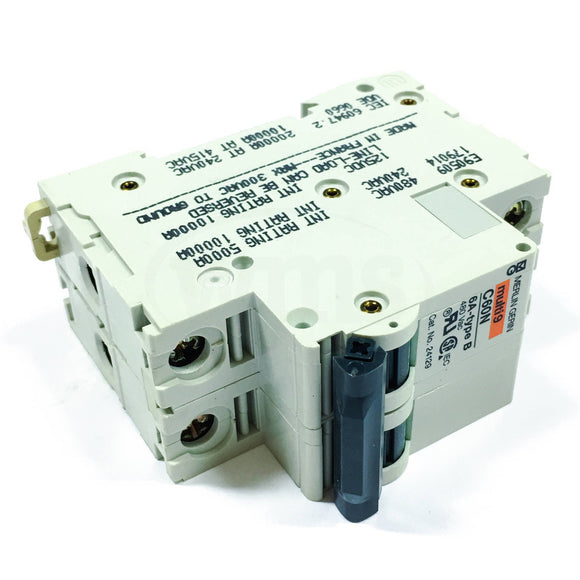

Miniature circuit-breaker |
|
|---|---|---|
| range |
Multi 9 |
|
| product name |
Multi 9 C60 |
|
| device short name |
C60 UL1077 |
|
| device application |
Distribution |
|
| number of protected poles |
2 |
|
| [In] rated current |
15 Aat 77 °F (25 °C) |
|
| network type |
DC AC |
|
| trip unit technology |
Thermal-magnetic |
|
| suitability for isolation |
Yes conforming to EN/IEC 60947-2 |
|
| System Voltage |
125 V DC 240 V AC 440 V AC 415 V AC |
|
|---|---|---|
| mounting mode |
Clip-on |
|
| poles description |
2P |
|
| breaking capacity |
AIR 10 kA at 240 V AC conforming to UL 1077 AIR 10 kA at 125 V DC conforming to UL 1077 Icu 6 kA at 440 V AC conforming to EN/IEC 60947-2 Icu 10 kA at 415 V AC conforming to EN/IEC 60947-2 Icu 20 kA at 240 V AC conforming to EN/IEC 60947-2 Icu 6 kA at 440 V AC conforming to GB 14048.2 Icu 10 kA at 415 V AC conforming to GB 14048.2 Icu 20 kA at 240 V AC conforming to GB 14048.2 AIR 5 kA at 480Y/277 V AC conforming to UL 1077 AIR 10 kA at 240 V AC conforming to CSA C22.2 AIR 5 kA at 480Y/277 V AC conforming to CSA C22.2 AIR 10 kA at 125 V DC conforming to CSA C22.2 Icu 10 kA at 125 V DC conforming to EN/IEC 60947-2 Icu 10 kA at 125 V DC conforming to GB 14048.2 |
|
| network frequency |
50/60 Hz |
|
| curve code |
C |
|
| magnetic tripping limit |
8.5 x In +/- 20% AC 12 x In +/- 20% DC |
|
| limitation class |
3 conforming to EN/IEC 60947-2 |
|
| [Ui] rated insulation voltage |
500 V AC conforming to EN/IEC 60947-2 |
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN/IEC 60947-2 |
|
| contact position indicator |
Yes |
|
| control type |
Toggle |
|
| local signalling |
ON/OFF indication |
|
| mounting support |
DIN rail |
|
| 9 mm pitches |
4 |
|
| height |
3.19 in (81 mm) |
|
| width |
1.42 in (36 mm) |
|
| depth |
2.87 in (73 mm) |
|
| product weight |
0.49 lb(US) (0.22 kg) |
|
| colour |
Grey |
|
| mechanical durability |
20000 cycles |
|
| electrical durability |
10000 cycles |
|
| provision for padlocking |
Padlockable |
|
| connections - terminals |
Tunnel type terminal, top or bottom rigid wire(s) 0...0.04 in² (2.5...25 mm²) max (AWG 14...AWG 4) |
|
| wire stripping length |
0.55 in (14 mm) top or bottom |
|
| tightening torque |
22.12 lbf.in (2.5 N.m) top or bottom |
|
| standards |
UL 1077 GB 14048.2 EN/IEC 60947-2 CSA C22.2 No 235 |
|
|---|---|---|
| product certifications |
CSA CCC IEC UR |
|
| IP degree of protection |
IP40 modular enclosure conforming to IEC 60529 IP20 conforming to IEC 60529 |
|
| pollution degree |
3 conforming to EN/IEC 60947-2 |
|
| overvoltage category |
IV |
|
| tropicalisation |
2 conforming to IEC 60068-1 |
|
| relative humidity |
95 % 131 °F (55 °C) |
|
| operating altitude |
6561.68 ft (2000 m) |
|
| ambient air temperature for operation |
-22...158 °F (-30...70 °C) |
|
| ambient air temperature for storage |
-40...176 °F (-40...80 °C) |
|
| Category |
00908 - C60N SUPPLEMENTARY PROTECTORS |
|
|---|---|---|
| Discount Schedule |
DE2 |
|
| GTIN |
00785901889502 |
|
| Nbr. of units in pkg. |
1 |
|
| Package weight(Lbs) |
0.52000000000000002 |
|
| Returnability |
|
|
| Country of origin |
FR |
|
