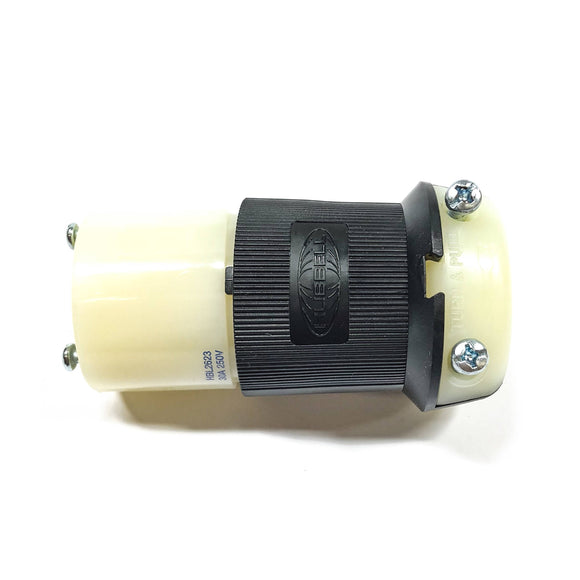

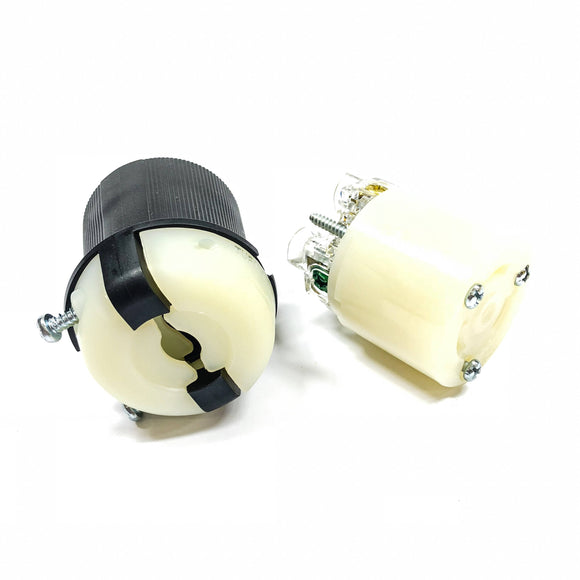

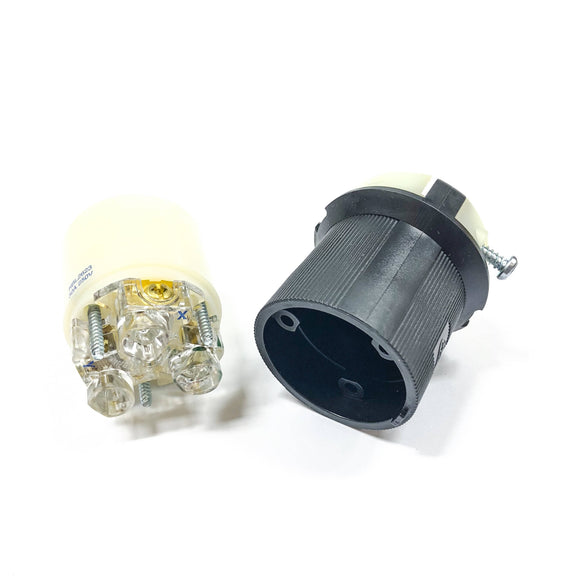

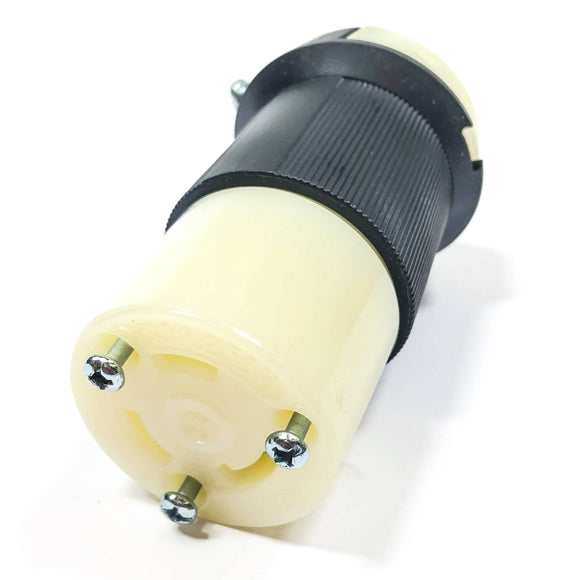

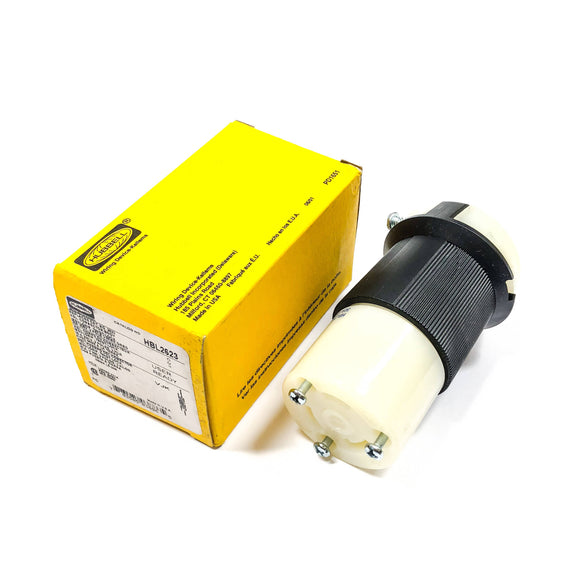

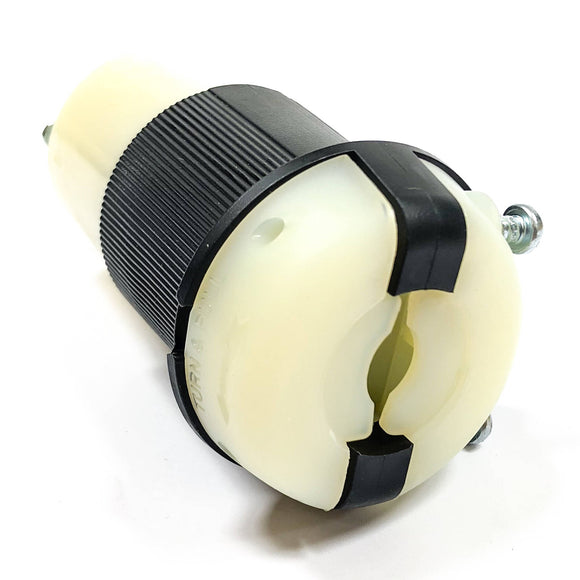

Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 30A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-30R, Screw Terminal, Black and White Nylon.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Product Details
General
| Application | Heavy Duty Industrial |
| Color | Black, White |
| Cord Range | 0.360"-0.930" (9-24) |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Insulation | Insulated Body |
| Item Type | 30A Grounding Insulgrip® Connector |
| Material | Nylon |
| Material - Mounting Hardware | Cord Mounted |
| Number Of Poles | 2-Pole |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Type | Connector Body |
| UPC | 783585038865 |
Dimensions
| Display Size | Standard |
| Height | 3.86 in |
| Length | 2.26 in |
| Weight | 0.25 lb |
| Width | 2.26 in |
Electrical Ratings
| Amperage Rating | 30 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 30 A |
| Current Rating | 30 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Single Phase |
| Voltage Rating | 250 VAC |
| Voltage Rating Description | 250 VAC |
Conductor Related
| Cable Range | 0.360 - 0.930 in |
| Number Of Wires | 3-Wire |
| Wire Size | #16 AWG to #8 AWG |
Certifications and Compliance
| Industry Standard(s) |
|
| Nema Rating | L6-30R |
Logistics
| Carton Quantity | 30 |
