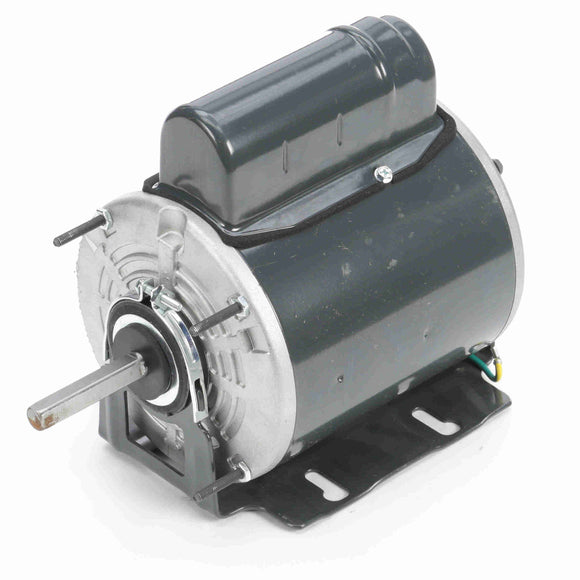

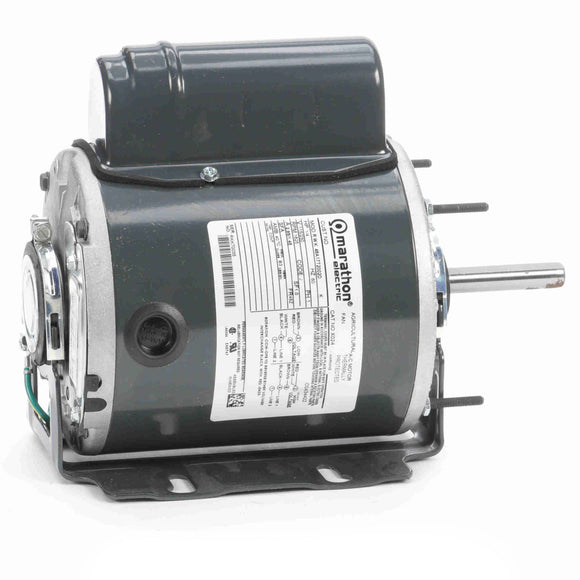

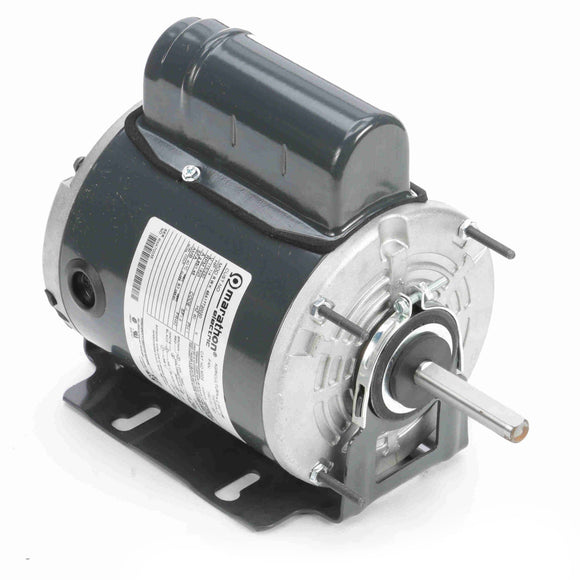

Features
Features
- Extended thru-bolts
- Fully gasketed
- 48/56 Frame mounting holes
- Continuous duty
- Automatic reset thermal protector
- 1/2” dia. x 2-1/2” long shaft with two flats, 90º apart
General Specifications
General Specifications
| Model : | 048A17T2002 | Catalog No : | X024 |
| Part Description : | 1/4,1625,TENV,48Z,1/60/115/230 | Category : | Single Phase |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.25 HP | Output KW : | 0.19 kW |
| Frequency : | 60 Hz | Voltage : | 115/230 V |
| Current : | 3.0/1.5 A | Speed : | 1625 RPM |
| Service Factor : | 1 | Phase : | 1 |
| Efficiency : | 65.3 % | Duty : | Continuous |
| Insulation Class : | B | Design Code : | NO DESIGN CODE |
| KVA Code : | J | Frame : | 48Z |
| Enclosure : | Totally Enclosed Air Over | Overload Protector : | Automatic Lock Rotor Only |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 43 |
Technical Specifications
Technical Specifications
| Electrical Type : | Permanent Split Capacitor | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Resilient Base - Extended Studs | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | Single Special Extension |
| Overall Length : | 10.09 in | Frame Length : | 5.50 in |
| Shaft Diameter : | 0.500 in | Shaft Extension : | 2.56 in |
| Assembly/Box Mounting : | F1 Only | UPC : | 722856027993 |
| Weight : | 18.00 LB |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 8.40 | 6.76 | 34 | 1.46 | 0.25 | |||
| Locked-Rotor | 8.34 | 7.72 | 34 | 1.46 | 0.25 | |||
| Break-Down | 5.27 | 40.60 | 1,450 | 1.06 | 0.25 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 0.94
- 0.105
- 0.0
- 48.6
- 1,800
- 0.0
- 0.00
- 25 %
- 1.02
- 0.149
- 32.0
- 63.5
- 1,786
- 0.0
- 3.01
- 50 %
- 1.14
- 0.191
- 49.3
- 72.8
- 1,776
- 0.0
- 5.97
- 75 %
- 1.29
- 0.237
- 59.4
- 79.9
- 1,765
- 0.0
- 8.98
- 100 %
- 1.47
- 0.286
- 65.3
- 84.6
- 1,752
- 0.0
- 12.00
- 125 %
- 1.68
- 0.338
- 69.4
- 87.5
- 1,738
- 0.0
- 15.20
- 150 %
- 1.92
- 0.394
- 71.4
- 89.2
- 1,722
- 0.0
- 18.40
- 175 %
- 2.18
- 0.455
- 72.1
- 90.7
- 1,704
- 0.0
- 21.70
- 200 %
- 2.49
- 0.522
- 71.6
- 91.1
- 1,683
- 0.0
- 25.00
