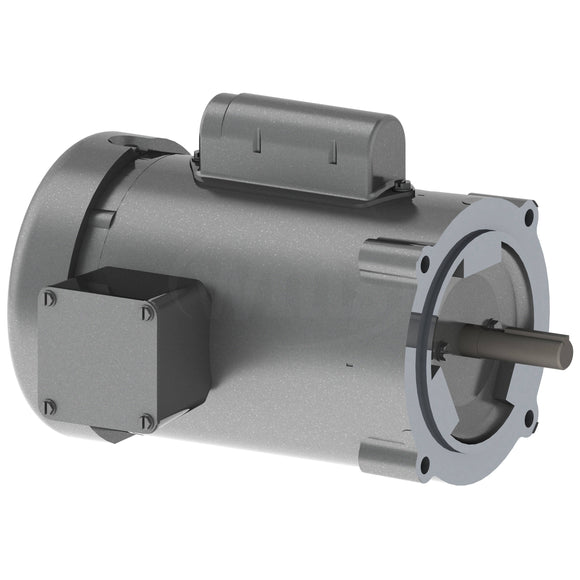

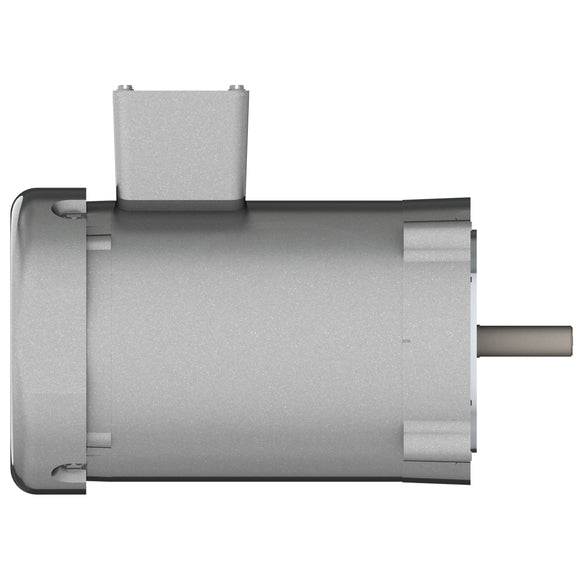

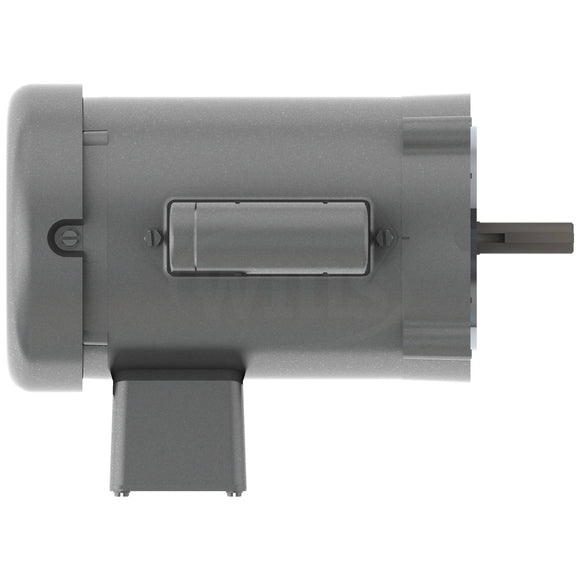

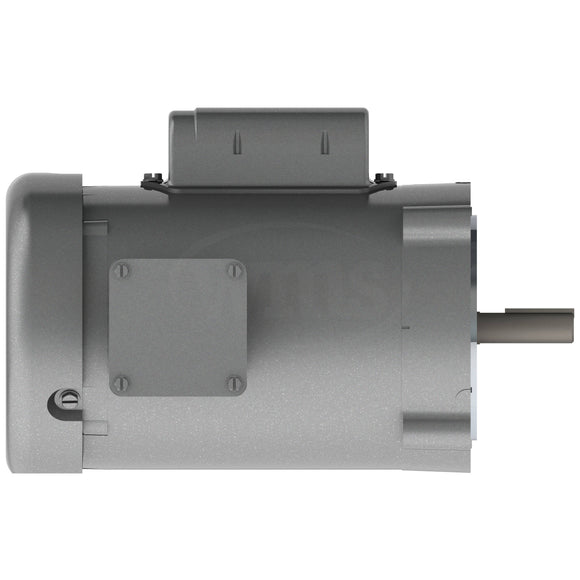

VL3505 Baldor 1/2HP Electric Motor, 1200RPM

$977.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: VL3505 Barcode: 781568109045

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56C Frame, 115/230VAC 60Hz Single Phase, 3528L, C-Face, Footless, Rolled Steel, 35C013N457G1, 5/8" Keyed Shaft

Description Product Specs Manufacturer

Specifications

Specs

Output0.500 hp
Phase1
Synchronous Speed1,200 rpm
Frequency60.00 Hz
Voltage115 V
230 V
Frame MaterialSteel
Frame56C
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorNo Mounting
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current7.8 A @ 115 V
4.5 A @ 208 V
3.9 A @ 230 V
Design CodeN
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load62.5%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps3.9 A
Insulation ClassF
Inverter CodeNot inverter
KVA CodeL
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size6 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3528L
Number of Poles6
Overall Length13.25 in
Power Factor65
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeC-Face
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusRoHS Compliant
Service Factor1.25
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1,140 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

  • Gear reducers
  • Material handling
  • Machine tools
  • Conveyors
  • Pumps
  • Fans

Features

  • Locked DE bearing to allow mounting in any configuration
  • Low noise vibration dampening base
  • Dynamically balanced rotor to increase bearing life
  • Superior switch design provides optimized torque profiles
  • Robust heavy gauge steel design

Nameplate

Nameplate

CAT.NO. VL3505
SPEC. 35C013N457G1
HP .5
VOLTS 115/230
AMP 7.8/3.9
RPM 1140
FRAME 56C HZ 60 PH 1
SER.F. 1.25 CODE L DES N CLASS F
NEMA-NOM-EFF 62.5 PF 65
RATING 40C AMB-CONT
CC USABLE AT 208V 4.5
DE 6205 ODE 6203
ENCL TEFC SN
SFA 9/4.5
NP1256L

Performance

Performance

Performance at 230 V, 60 Hz, 0.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C4.9379 Ohms A Ph / 2.7993 Ohms B Ph
Temp. Rise @ Rated Load65° C
Temp. Rise @ S.F. Load91° C
Start ConfigurationDOL
Break-Down Torque4.88 LB-FT
Pull-Up Torque4.01 LB-FT
Locked-Rotor Torque6.91 LB-FT
Starting Current21.6 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 20.0 33.0 46.0 57.0 65.0 72.0 76.0 72.0
Efficiency 0.0 39.6 54.5 61.1 62.7 61.8 58.1 61.8
Speed (RPM) 1,199 1,188 1,177 1,166 1,152 1,135 1,108 1,135
Line Amps 2.84 2.90 3.12 3.44 3.91 4.54 5.46 4.54

Performance Curves

Performance at 115 V, 60 Hz, 0.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C1.23 Ohms A Ph / 2.86 Ohms B Ph
Temp. Rise @ Rated Load65° C
Temp. Rise @ S.F. Load79° C
Start ConfigurationDOL
Break-Down Torque4.88 LB-FT
Pull-Up Torque4.01 LB-FT
Locked-Rotor Torque6.91 LB-FT
Starting Current43.2 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 19.0 32.0 46.0 56.0 65.0 71.0 76.0 80.0
Efficiency 0.0 39.7 54.6 60.9 62.8 61.9 58.2 82.4
Speed (RPM) 1,199 1,188 1,177 1,166 1,152 1,135 1,108 1,442
Line Amps 5.68 5.80 6.24 6.88 7.82 9.08 10.90 2.95

Performance Curves

  • 115VAC
  • 230VAC
  • Electric Motor
  • 56C
  • TEFC
  • Single Phase
  • 1/2HP
  • 1200RPM
