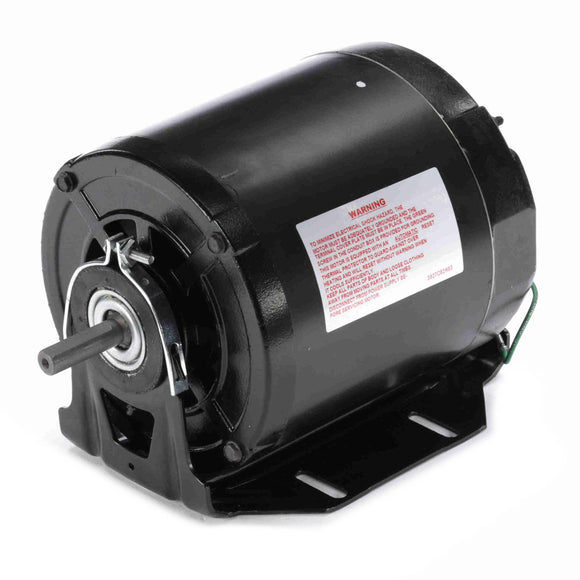

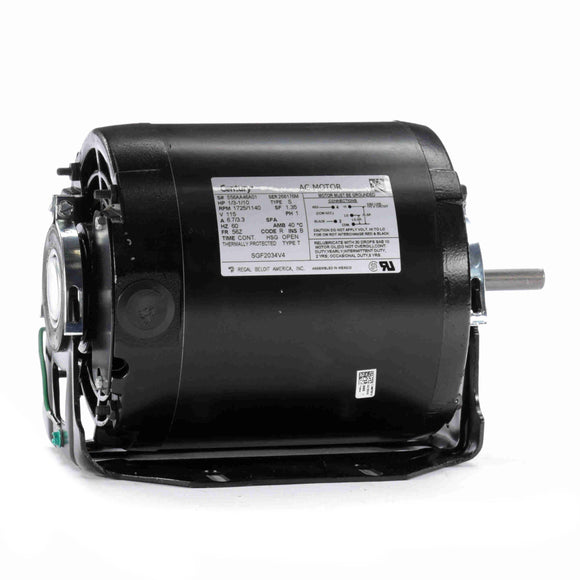

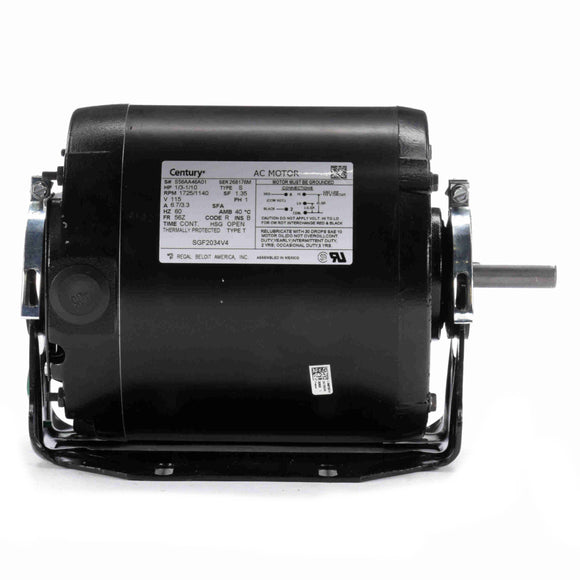

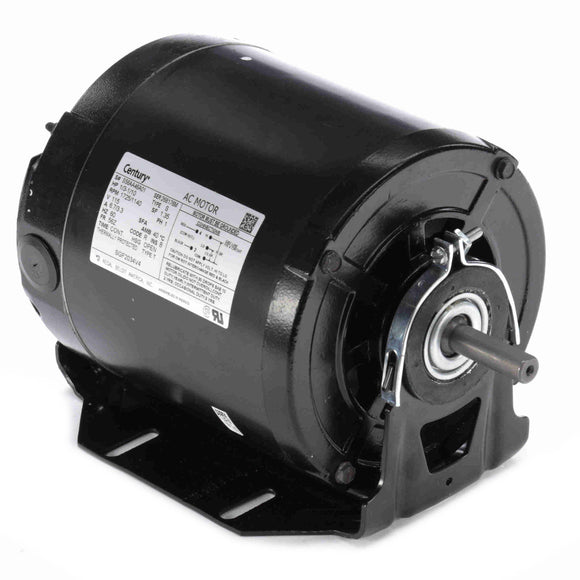

SGF2034V4 Century 1/3-1/10HP Belt Drive Electric Motor, 1725/1140RPM

$359.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: SGF2034V4 Barcode: 786674030924

30 Day
Return Policy

Ships Fast
in 24 hours

2-Speed, Open, 56Z Frame, 115V Single Phase 60Hz, Resilient Base

Description Product Specs Manufacturer

Features

Features
  • Resilient Base
  • Continuous duty
  • Single and two speed

General Specifications

General Specifications
Model : Catalog No : SGF2034V4
Part Description : 1/3-1/10,1725,OPEN,56Z,1/60/115 Category : Belt Drive
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 1/3-1/10 HP Output KW : 0.25 kW
Frequency : 60 Hz Voltage : 115 V
Current : 6.7/3.3 A Speed : 1725/1140 RPM
Service Factor : 1.35 Phase : 1
Duty : Continuous Insulation Class : B
Frame : 56Z Enclosure : Open Enclosed
Overload Protector : Automatic Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Nameplate Specifications
Output HP : 1/3-1/10 HP Output KW : 0.25 kW
Frequency : 60 Hz Voltage : 115 V
Current : 6.7/3.3 A Speed : 1725/1140 RPM
Service Factor : 1.35 Phase : 1
Duty : Continuous Insulation Class : B
Frame : 56Z Enclosure : Open Enclosed
Overload Protector : Automatic Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Speed & Load Characteristics

  • Electric Motor
  • 56Z
  • Open
  • Single Phase
  • 1/3HP
  • 1/10HP
  • 1725RPM
  • 1140RPM

Century Electric Motor (Regal Rexnord)
