Features

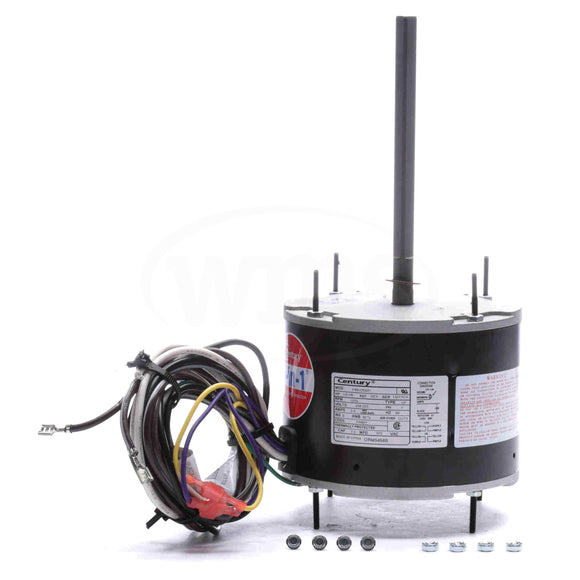

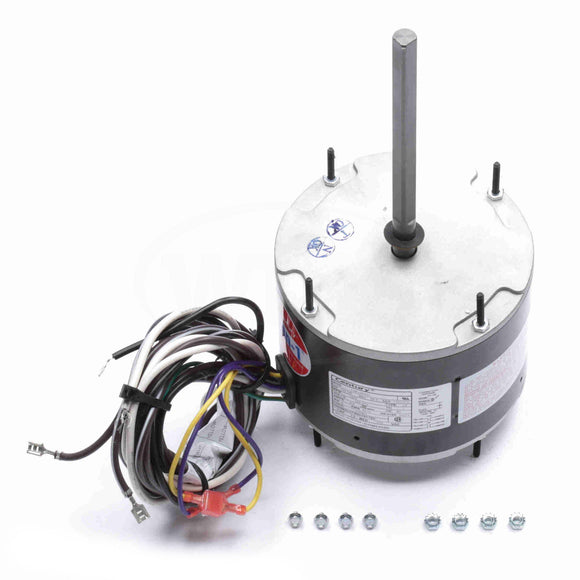

- 4-in-1 - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, Belly Band
General Specifications
| UPC: | 786674028280 | Weight: | 12.00 LB |
| Packaged Length: | 13.78 IN | Packaged Width: | 6.42 IN |
| Packaged Height: | 6.81 IN |
Nameplate Specifications
| Output HP: | 1/3-1/6 Hp | Output KW: | 0.25 kW |
| Frequency: | 60 Hz | Voltage: | 208-230 V |
| Current: | 2.0 A | Speed: | 1075 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 48 | Enclosure: | Totally Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 60 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Induction Run |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Extended Studs | Motor Orientation: | Any |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | Double Flat |
| Overall Length: | 11.68 in | Frame Length: | 3.50 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 6.6 in |
Speed & Load Characteristics
