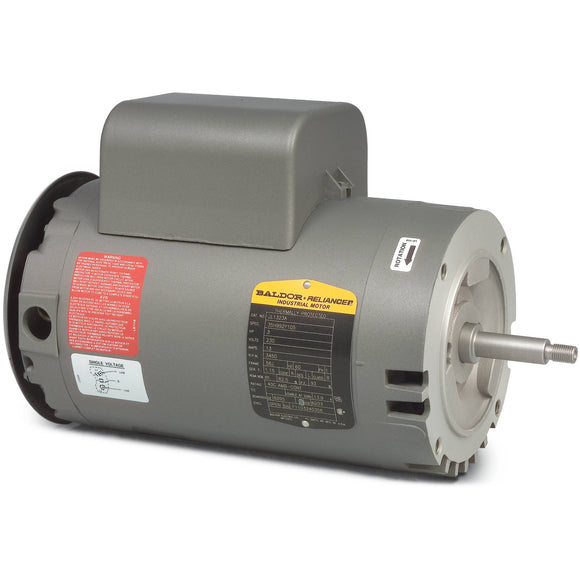

JL1313A Baldor 1.5HP Jet Pump Electric Motor, 3450RPM

$701.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: JL1313A Barcode: 781568112823

30 Day
Return Policy

Ships Fast
in 24 hours

Open, 56J Frame, 115/230VAC 60Hz Single Phase, Round Body, Rolled Steel, C-Face, 5/8" Shaft

Description Product Specs Manufacturer

Specifications

Specs

Catalog NumberJL1313A
EnclosureOPEN
Frame56J
Frame MaterialSteel
Frequency60.00 Hz
Output @ Frequency1.500 HP @ 60 HZ
Phase1
Synchronous Speed @ Frequency3600 RPM @ 60 HZ
Voltage @ Frequency115.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and GroupNone
XP DivisionNot Applicable
Agency ApprovalsUR
CSA
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorNo Mounting
Bearing Grease TypePolyrex EM (-20F +300F)
BlowerNone
Current @ Voltage13.000 A @ 115.0 V
6.500 A @ 230.0 V
Design Code-
Drip CoverDrip Cover
Duty RatingCONT
Efficiency @ 100% Load78.5 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps6.5 a
Front Face CodeDrip Cover Mounting
Front Shaft IndicatorNone
Heater IndicatorNo Heater
Insulation ClassB
Inverter CodeNot Inverter
KVA CodeH
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead ExitTerminal Panel Or Lead Hole
Motor Lead TerminationFlying Leads With QC
Motor Lead Quantity/Wire Size4 @ 16 AWG, A&J
Motor Type3432LC
Mounting ArrangementF1
Number of Poles2
Overall Length13.89 IN
Power Factor95
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeC-Face
Pulley Shaft IndicatorExt Thread
Rodent ScreenNone
RoHS StatusROHS COMPLIANT
Service Factor1.30
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationFixed Opposite Standard
Shaft Slinger IndicatorNo Slinger
Speed3450 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1Automatic Thermal Overload
Winding Thermal 1 LocationSB
Winding Thermal 2None

Applications

Features

Nameplate

Nameplate

CAT.NO. JL1313A
SPEC. 34F531X598
HP 1.5
VOLTS 115/230
AMP 13/6.5
RPM 3450
FRAME 56J HZ 60 PH 1
SER.F. 1.30 CODE H DES - CL B
NEMA-NOM-EFF 78.5 PF 95
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6203 ODE 6203
ENCL OPEN SN
SFA 17/8.5
NP1257L

Performance

Performance

Performance at 230 V, 60 Hz, 1.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C1.58 Ohms A Ph / 1.44 Ohms B Ph
Temp. Rise @ Rated Load38° C
Temp. Rise @ S.F. Load53° C
Start ConfigurationDOL
Break-Down Torque6.2 LB-FT
Pull-Up Torque5 LB-FT
Locked-Rotor Torque6.7 LB-FT
Starting Current43.5 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 40.0 81.0 90.0 93.0 95.0 95.0 95.0 95.0
Efficiency 0.0 60.5 76.2 77.7 78.5 77.2 75.3 76.8
Speed (RPM) 3,599 3,566 3,534 3,498 3,455 3,403 3,343 3,391
Line Amps 1.65 2.45 3.65 5.00 6.50 8.25 10.25 8.65

Performance Curves

  • 115VAC
  • 230VAC
  • Electric Motor
  • 56J
  • Open
  • Single Phase
  • 1.5HP
  • 3450RPM

Baldor Electric Company
