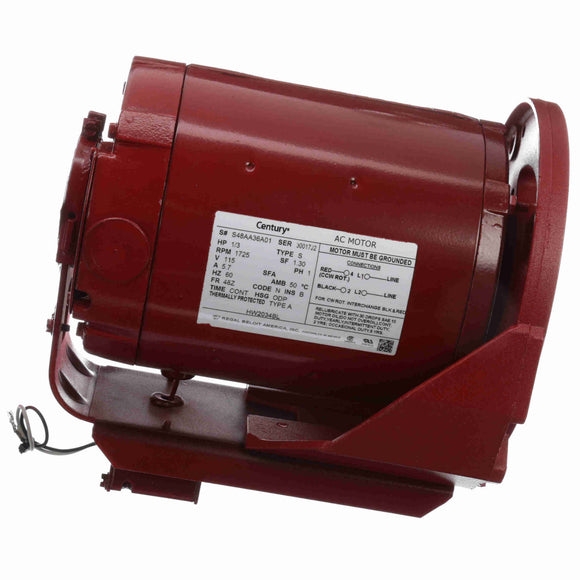

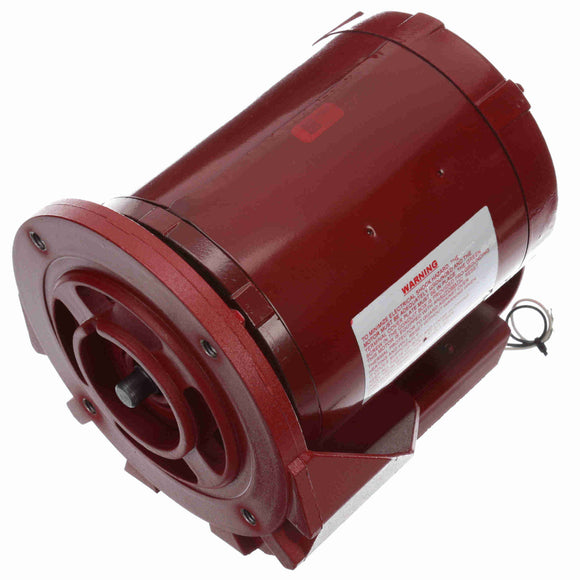

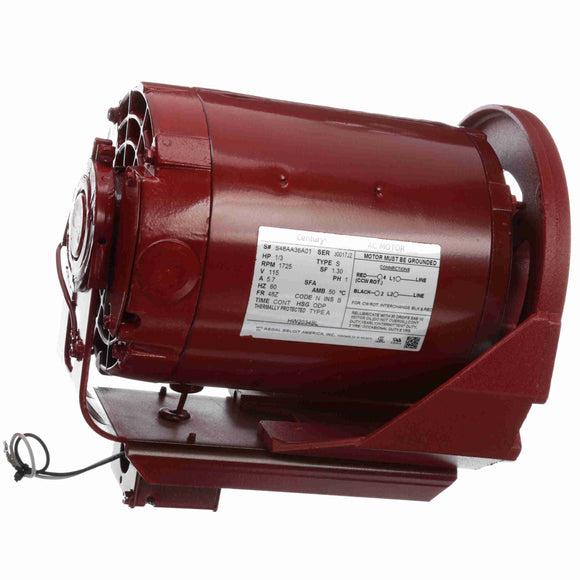

HW2034BL Century 1/3HP Circulator Pump Electric Motor, 1800RPM

$297.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: HW2034BL Barcode: 786674025357

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 48Z Frame, 115VAC 60Hz Single Phase, Resilient Base, Rolled Steel, 1/2" Shaft

Description Product Specs Manufacturer





Features






  • Automatic reset thermal protector





General Specifications























UPC: 786674025357 Weight: 17.00 LB
Packaged Length: 10.88 IN Packaged Width: 10.81 IN
Packaged Height: 9.81 IN


Nameplate Specifications



























































Output HP: 1/3 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 115 V
Current: 5.7 A Speed: 1725 rpm
Service Factor: 1.3 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48Z Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y
CE: N


Technical Specifications















































Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4 Rotation: Clockwise
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Spot Drill Overall Length: 8.96 in
Frame Length: 5.59 in Shaft Diameter: 0.500 in
Shaft Extension: 0.6 in



  • Electric Motor
  • 48Z
  • ODP
  • Single Phase
  • 1/3HP
  • 1800RPM

Century Electric Motor (Regal Rexnord)
