Features
Features
- Suitable for belted loads
- Automatic reset thermal protector
- Fully gasketed
General Specifications
General Specifications
| Model : | Catalog No : | F501 | |
| Part Description : | 1/2,1725,TEAO,56Z,1/60/230/115 | Category : | Belt Drive Fan |
| Stock : | Yes |

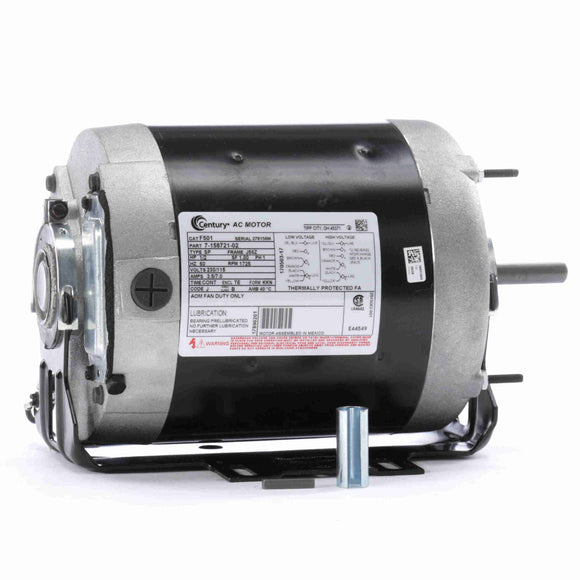

Nameplate Specifications
Nameplate Specifications
| Output HP : | 1/2 HP | Output KW : | 0.37 kW |
| Frequency : | 60 Hz | Voltage : | 230/115 V |
| Current : | 3.5/7.0 A | Speed : | 1725 RPM |
| Service Factor : | 1 | Phase : | 1 |
| Duty : | Continuous | Insulation Class : | B |
| Frame : | J56Z | Enclosure : | Totally Enclosed Air Over |
| Overload Protector : | Thermally Protected | Ambient Temperature : | 40 °C |
| UL : | Recognized | CSA : | Y |
| CE : | N |
Technical Specifications
Technical Specifications
| Electrical Type : | Split Phase, Induction Run, Single Or Dual Voltage | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Reversible Counterclockwise |
| Mounting : | Cushion Base | Drive End Bearing : | Ball |
| Opp Drive End Bearing : | Ball | Frame Material : | Rolled Steel |
| Shaft Type : | Flat | Overall Length : | 11.07 in |
| Frame Length : | 5.13 in | Shaft Diameter : | 0.500 in |
| Shaft Extension : | 1.88 in | UPC : | 786674020109 |
| Weight : | 24.00 LB |
Speed & Load Characteristics
