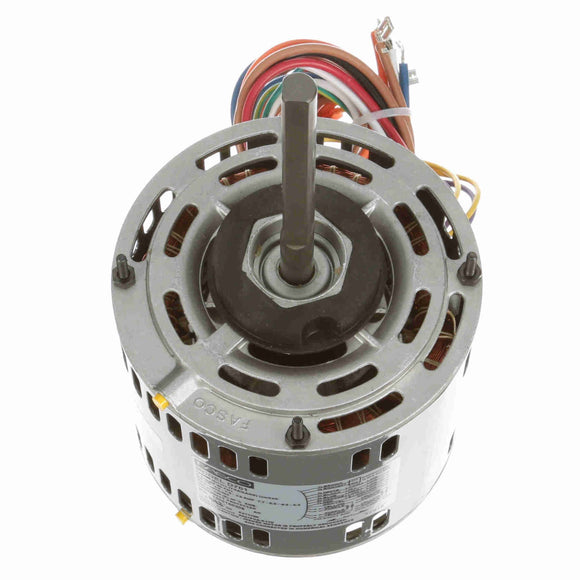

Features
- Direct Drive Fan and Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads
- Extended Studs Shaft End, Resilient Ring Mounting, Belly Band
General Specifications
| UPC: | 818508021201 | Weight: | 15.00 LB |
| Packaged Length: | 15 IN | Packaged Width: | 5.63 IN |
| Packaged Height: | 5.63 IN |
Nameplate Specifications
| Output HP: | 1/2-1/3-1/4-1/5 Hp | Output KW: | 0.37 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 7.7-5.5-4.2-3.3 A | Speed: | 1075 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | 48 | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 4 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Rolled Steel |
| Shaft Type: | Double Flat | Frame Length: | 5.39 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 5.43 in |
