Features

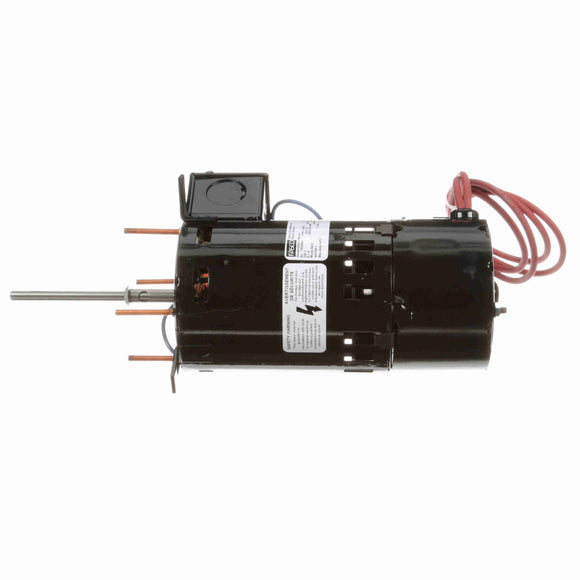

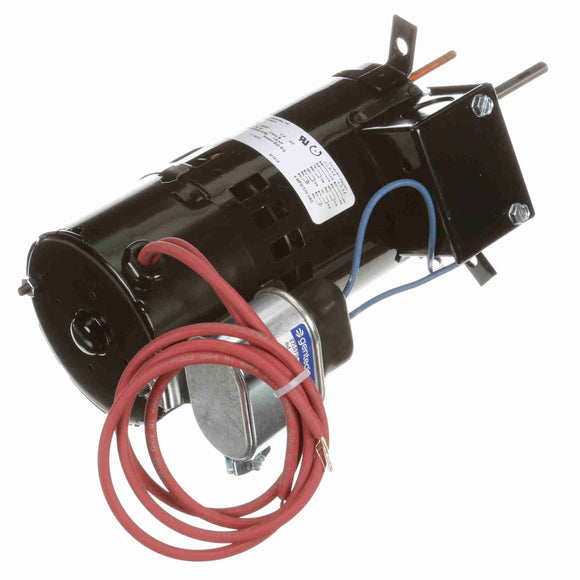

- Draft Inducer Motor
- 3.3" Diameter
- Permanent Split Capacitor
- Thermally Protected
- Open Shell, Enclosed Shaft End End-Frame and Lead, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/4" Diameter Shaft with Flat
- 21" Leads, 21" Switch Leads
- Extended Studs Shaft End, Lug Mount
General Specifications
| UPC: | 815585029908 | Weight: | 6 LB |
| Packaged Length: | 13 IN | Packaged Width: | 5.5 IN |
| Packaged Height: | 4.56 IN |
Nameplate Specifications
| Output HP: | 1/9 Hp | Output KW: | 0.08 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | .7 A | Speed: | 3000/2500 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Reversible |
| Mounting: | Extended Studs | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 10.57 in |
| Frame Length: | 4.50 in | Shaft Diameter: | 0.250 in |
| Shaft Extension: | 3.80 in |
