Features
Features

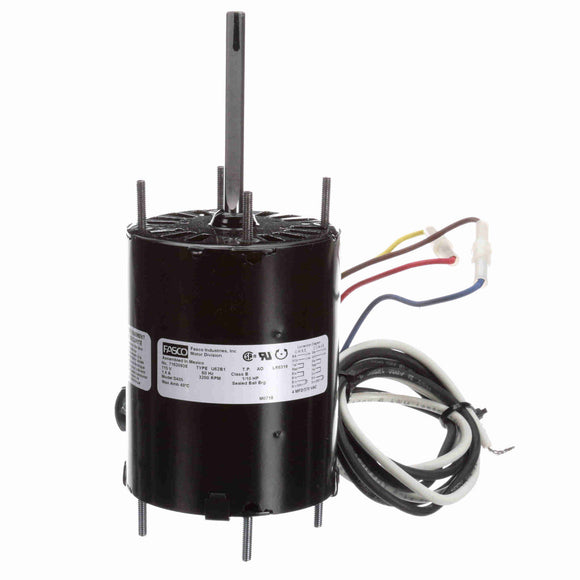

- OEM Direct Replacement Motor
- 3.3" Diameter
- Permanent Split Capacitor
- Thermally Protected
- Open Opposite Lead End End-Frame, Enclosed Lead End End-Frame and Shell, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 36" Leads
- Extended Studs Shaft End and Opposite Shaft End
General Specifications
General Specifications
|
Model : |
Catalog No : |
D405 | |
|
Part Description : |
71620938.MOTOR.3.30" DIA..1/10 HP.1 SPD. |
Category : |
OEM Replacement |
|
Stock : |
No |
Nameplate Specifications
Nameplate Specifications
|
Output HP : |
1/10 HP |
Output KW : |
0.07 kW |
|
Frequency : |
60 Hz |
Voltage : |
115 V |
|
Current : |
1.4 A |
Speed : |
3200 RPM |
|
Service Factor : |
1 |
Phase : |
1 |
|
Duty : |
Air Over |
Insulation Class : |
B |
|
Frame : |
3.3 |
Enclosure : |
Open Air Over |
|
Overload Protector : |
Thermally Protected |
Ambient Temperature : |
40 °C |
|
UL : |
Recognized |
CSA : |
Y |
|
CE : |
N |
Technical Specifications
Technical Specifications
|
Electrical Type : |
Permanent Split Capacitor |
Starting Method : |
Across The Line |
|
Poles : |
2 |
Rotation : |
Reversible |
|
Mounting : |
Extended Studs |
Drive End Bearing : |
Ball |
|
Opp Drive End Bearing : |
Ball |
Frame Material : |
Steel |
|
Shaft Type : |
Flat |
Overall Length : |
7.80 in |
|
Frame Length : |
4.01 in |
Shaft Diameter : |
0.312 in |
|
Shaft Extension : |
3.25 in |
UPC : |
815585029878 |
|
Weight : |
5.00 LB |
Speed & Load Characteristics
