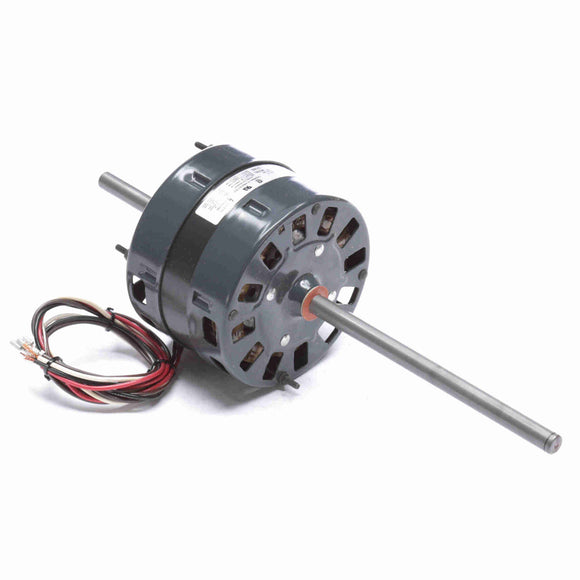

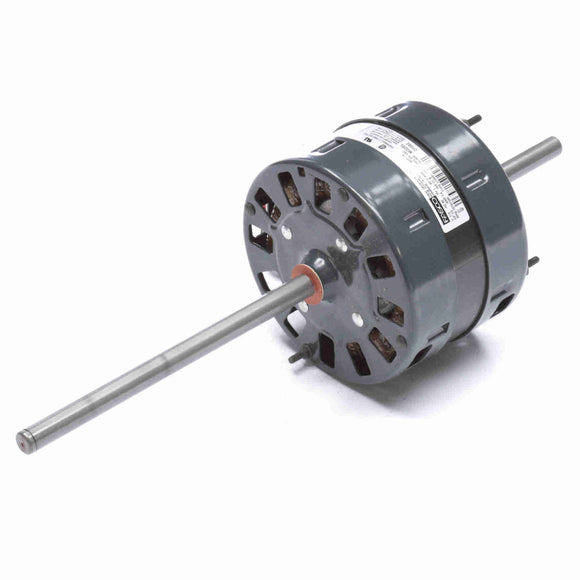

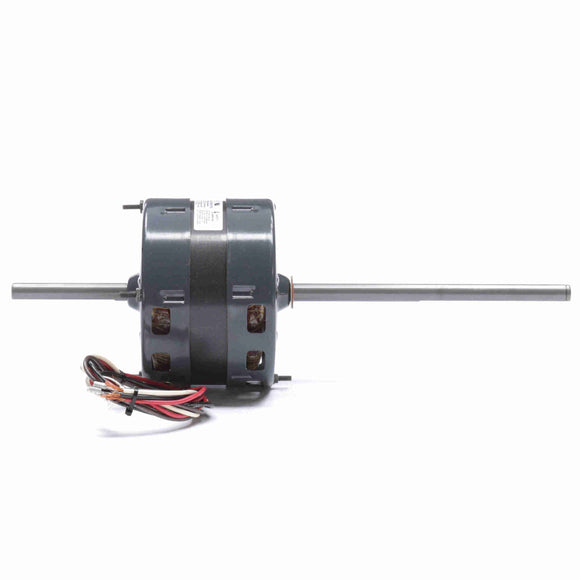

Features
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 23" Leads
- (4) Extended Studs Lead End, (1) Extended Stud Opposite Lead End
General Specifications
| UPC: | 815585028116 | Weight: | 10 LB |
| Packaged Length: | 5.13 IN | Packaged Width: | 5.13 IN |
| Packaged Height: | 22 IN |
Nameplate Specifications
| Output HP: | 1/3 Hp | Output KW: | 0.25 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 3.4 A | Speed: | 1675/1080 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | 42 | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 15.02 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 7.92 in |
