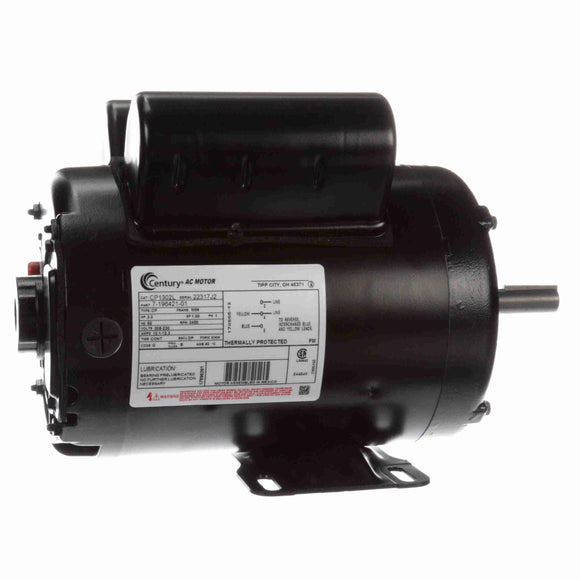

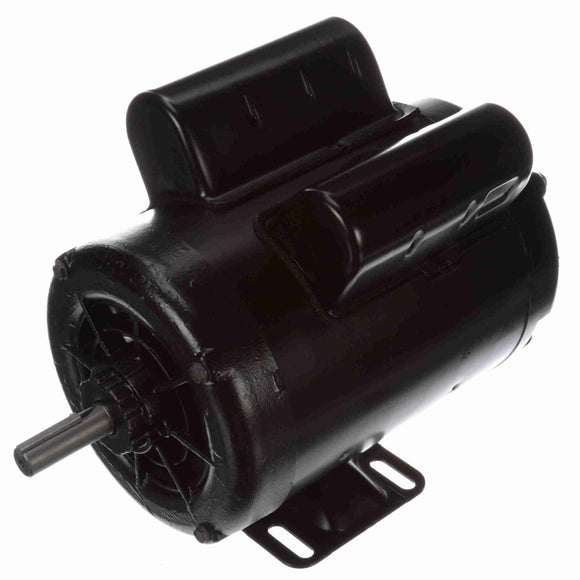

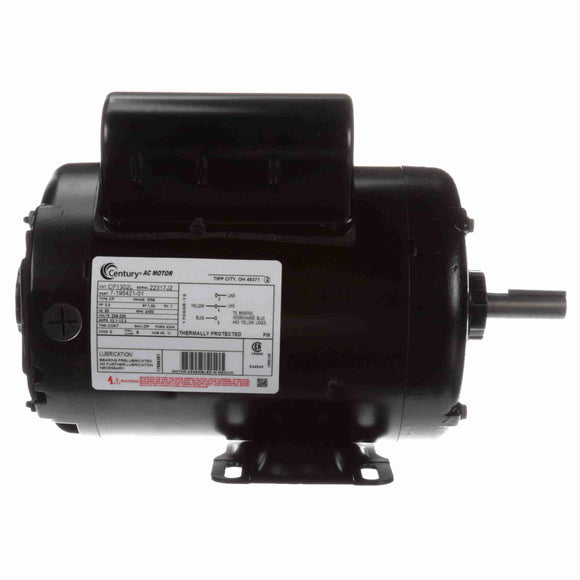

CP1302L Century 3HP Compressor Duty Electric Motor, 3450RPM

$487.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: CP1302L Barcode: 786674017215

30 Day
Return Policy

Ships Fast
in 24 hours

DP, 56 Frame, 208-230VAC Single Phase 60Hz, Rigid Base, Rolled Steel, 5/8" Shaft

Description Product Specs Manufacturer





Features




Features


  • High starting and breakdown torque

  • Heavy gauge steel frame and base






General Specifications





General Specifications






























Model :

Catalog No :
CP1302L

Part Description :
3,3450,DP,56,1/60/208-230
Category :
Air Compressor

Stock :
Yes






Nameplate Specifications





Nameplate Specifications

























































Output HP :
3.0 HP
Output KW :
2.2 kW

Frequency :
60 Hz
Voltage :
208-230 V

Current :
13.1-12.3 A
Speed :
3450 RPM

Service Factor :
1
Phase :
1

Duty :
Continuous
Insulation Class :
B

Frame :
M56
Enclosure :
Drip Proof

Overload Protector :
Thermally Protected
Ambient Temperature :
40 °C

UL :
Recognized
CSA :
Y

CE :
N






Technical Specifications





Technical Specifications




















































Electrical Type :
Capacitor Start, Capacitor Run, Single Or Dual Voltage
Starting Method :
Across The Line

Poles :
2
Rotation :
Reversible Counterclockwise

Mounting :
Rigid Base
Drive End Bearing :
Ball

Opp Drive End Bearing :
Ball
Frame Material :
Rolled Steel

Shaft Type :
Keyed
Overall Length :
12.69 in

Frame Length :
6.75 in
Shaft Diameter :
0.625 in

Shaft Extension :
1.94 in
UPC :
786674017215

Weight :
33.00 LB






Speed & Load Characteristics








  • Electric Motor
  • 56
  • DP
  • Single Phase
  • 3HP
  • 3450RPM
  • Air Compressor

Century Electric Motor (Regal Rexnord)
