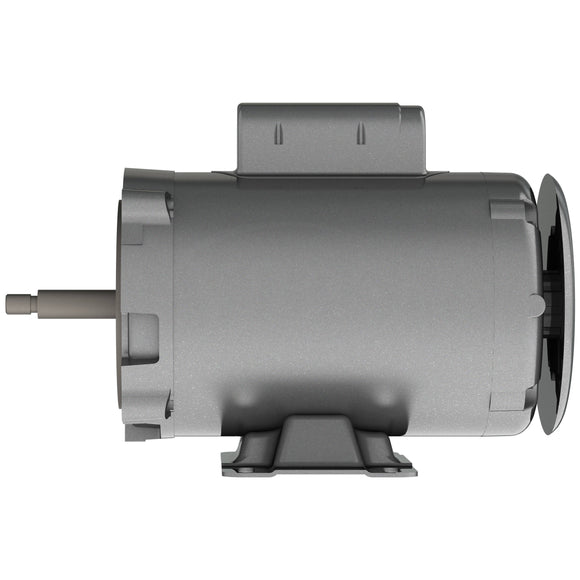

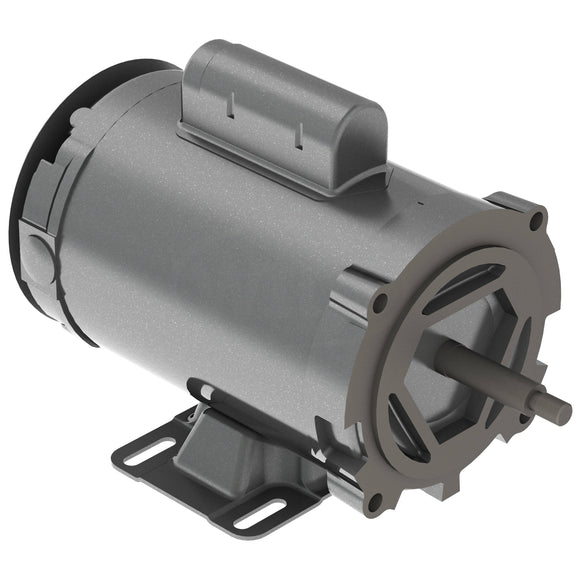

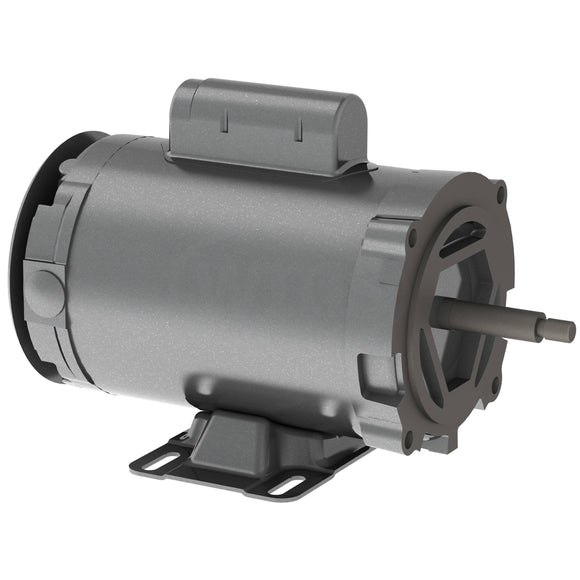

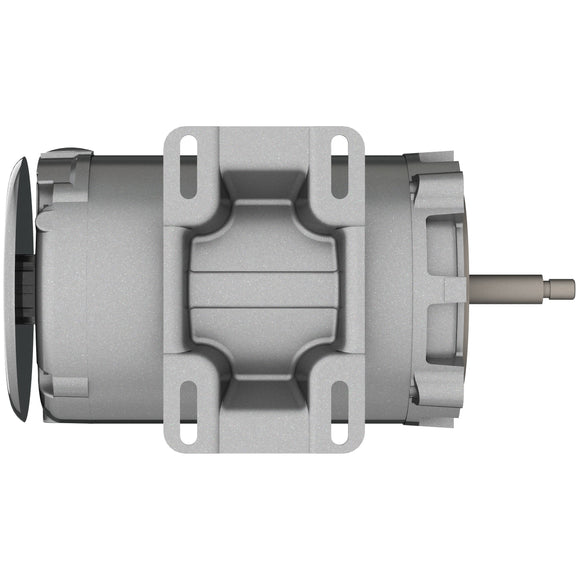

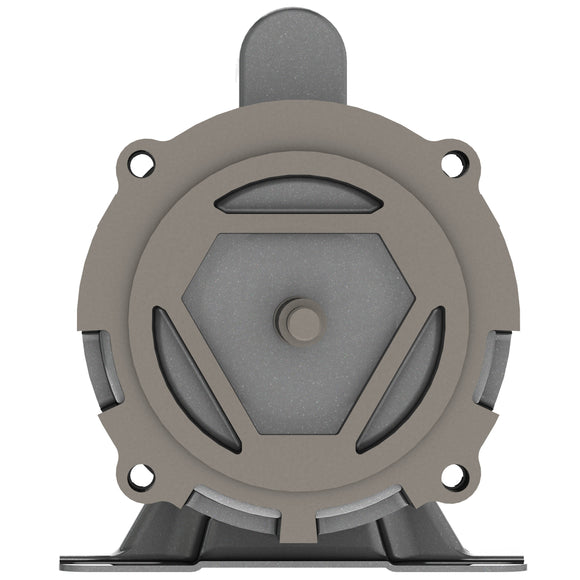

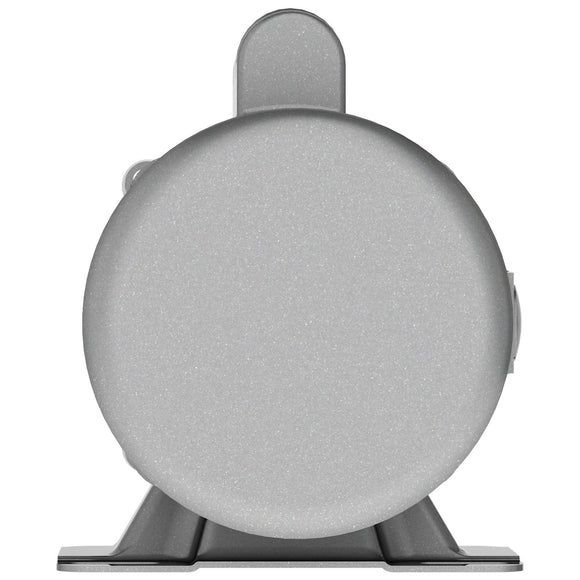

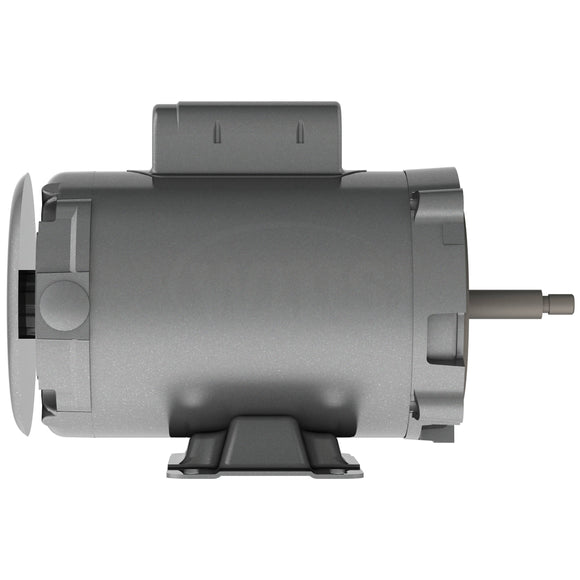

CJL1301A Baldor 1/3HP Jet Pump Electric Motor, 1725 RPM

$560.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: CJL1301A Barcode: 781568112854

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56J Frame, 115/208-230VAC 60Hz, Single Phase, C-Face, Foot Mounted, Rolled Steel, 3414L, 34F492-5599G1

Description Product Specs Manufacturer

Specifications

Specs

Output0.330 hp
Phase1
Synchronous Speed1,800 rpm
Frequency60.00 Hz
Voltage115 V
208 V
230 V
Frame MaterialSteel
Frame56J
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current6.0 A @ 115 V
3.2 A @ 208 V
3.6 A @ 208 V
3.0 A @ 230 V
Design CodeN
Drip CoverDrip Cover
Duty RatingCONT
Efficiency @ 100% Load60.0%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeDrip Cover Mounting
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps3.0 A
Insulation ClassB
Inverter CodeNot inverter
KVA CodeL
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead ExitTerminal Panel or Lead Hole
Motor Lead Quantity/Wire Size6 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3414L
Number of Poles4
Overall Length11.89 in
Power Factor60
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeC-Face
Pulley Shaft IndicatorExt Thread
Rodent ScreenNone
RoHS StatusRoHS Compliant
Service Factor1.35
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationFixed Opposite Standard
Shaft Slinger IndicatorNo Slinger
Speed1,725 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNONE (OLD)
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1Automatic Thermal Overload
Winding Thermal 1 LocationSB
Winding Thermal 2None

Applications

  • Industrial pumps
  • Swimming pool pumps
  • General purpose pumps
  • Commercial machinery
  • • Food and beverage
  • Wastewater
  • Agricultural

Features

  • Automatic thermal overload protection
  • Corrosion resistant stainless steel shaft extension
  • Slotted opposite DE shaft for easy installation
  • Superior switch design provides optimized torque profiles
  • Dynamically balanced rotor to reduce noise and increase bearing life

Nameplate

Nameplate

CAT.NO. CJL1301A
SPEC. 34F492-5599G1
HP .33
VOLTS 115/208-230
AMP 6/3.2-3
RPM 1725
FRAME 56J HZ 60 PH 1
SER.F. 1.35 CODE L DES N CL B
NEMA-NOM-EFF 60 PF 60
RATING 40C AMB-CONT
CC USABLE AT 208V 3.6
DE 6203 ODE 6203
ENCL OPEN SN
SFA 6.8/3.6-3.4
NP1257L

Performance

Performance

Performance at 230 V, 60 Hz, 0.33 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C6.32 Ohms A Ph / 4.93 Ohms B Ph
Temp. Rise @ Rated Load43° C
Temp. Rise @ S.F. Load53° C
Start ConfigurationDOL
Break-Down Torque2.95 LB-FT
Pull-Up Torque2.55 LB-FT
Locked-Rotor Torque3.6 LB-FT
Starting Current13 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 20.0 31.0 41.0 51.0 60.0 66.0 72.0 70.0
Efficiency 0.0 34.0 49.0 56.0 60.0 62.0 63.0 63.0
Speed (RPM) 1,795 1,783 1,765 1,745 1,730 1,710 1,680 1,695
Line Amps 2.60 2.60 2.70 2.80 3.00 3.30 3.70 3.40

Performance Curves

  • Electric Motor
  • 56J
  • TEFC
  • Single Phase
  • 1/3HP
  • 1725RPM

Baldor Electric Company
