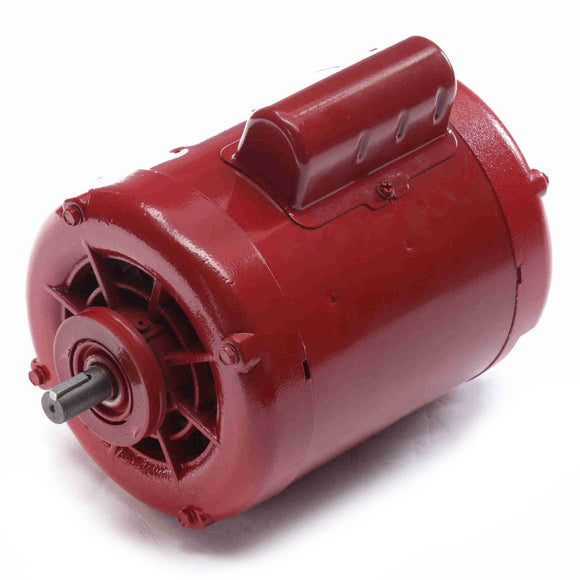

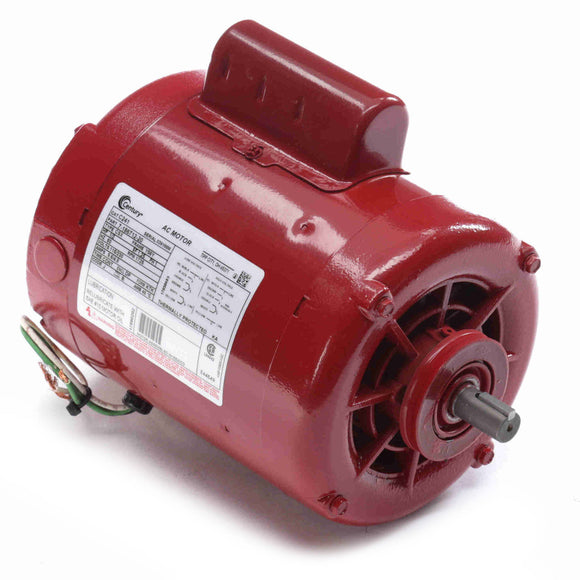

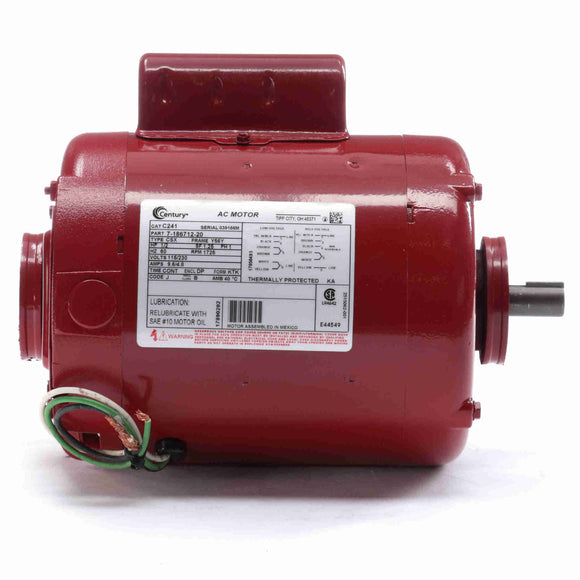

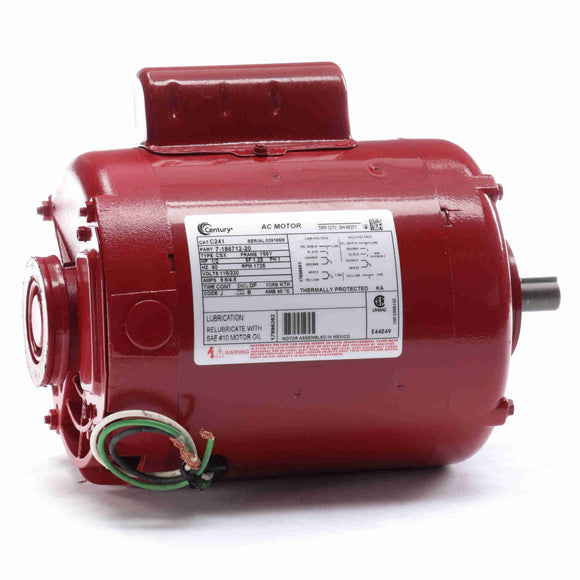

C241 Century 1/2HP Hot Water Circulator Pump Electric Motor, 1725RPM

$121.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: C241 Barcode: 786674015518

30 Day
Return Policy

Ships Fast
in 24 hours

Drip Proof, 56Y Frame, 115/230VAC Single Phase 60Hz, Cushion Ring

Description Product Specs Manufacturer

Features

Features
  • Automatic reset thermal protector

General Specifications

General Specifications
C241
1/2,1725,DP,56Y,1/60/115/230 Circulator pump
Yes

Nameplate Specifications

Nameplate Specifications
1/2 HP 0.37 kW
60 Hz 115/230 V
9.6/4.8 A 1725 RPM
1.25 1
Continuous B
Y56Y Drip Proof
Thermally Protected 40 °C
Recognized Y
N

Technical Specifications

Technical Specifications
Capacitor Start, Induction Run, Low Starting Torque, Single Or Dual Voltage Across The Line
4 Clockwise
Cushion Ring Sleeve
Sleeve Rolled Steel
Keyed 10.53 in
5.29 in 0.625 in
1.18 in 786674015518
24.00 LB

Speed & Load Characteristics

  • Electric Motor
  • 56Y
  • DP
  • Single Phase
  • 1/2HP
  • 1725RPM

Century Electric Motor (Regal Rexnord)
