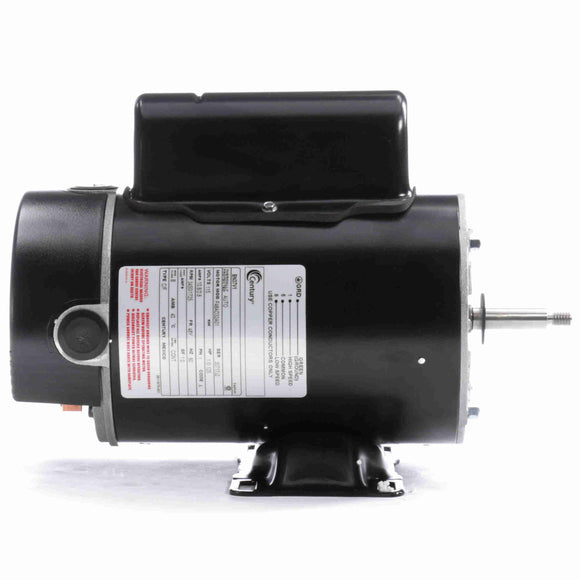

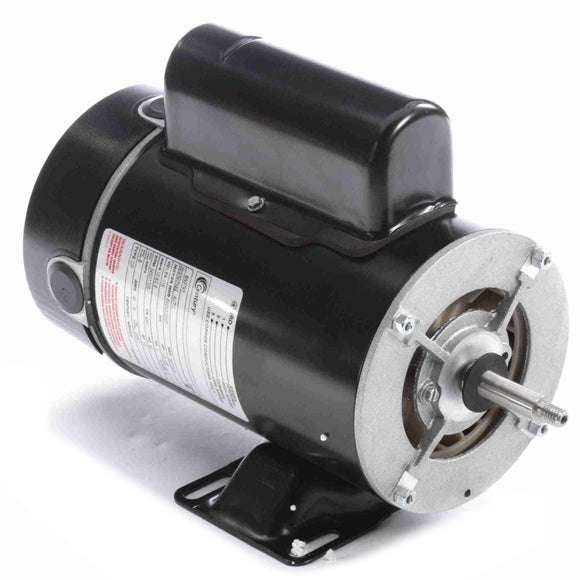

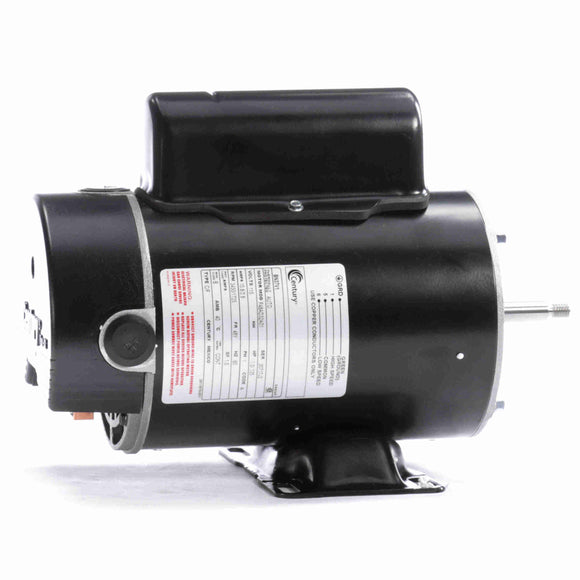

BN37V1 Century 1.0/0.12HP Pool Pump Electric Motor, 3600RPM

$339.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: BN37V1 Barcode: 786674057310

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 48Y Frame, 115VAC 60Hz Single Phase, 2 Speed, Rolled Steel Housing, Threaded Shaft, CCW Pump End

Description Product Specs Manufacturer





Features






  • Two Speed

  • 12 & 3 O'clock Conduit Entries

  • 3-1/2" Shaft Height

  • 40°C Ambient

  • Four Thru Bolts on a 5.146 Bolt Circle

  • Flex 48 LASAR Line Low Amp Start and Run with 48/56 Base Mounting

  • 48/56 Base Mounting

  • Threaded Shaft

  • Rigid Base

  • Energy Efficient





General Specifications























UPC: 786674057310 Weight: 25 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 11 IN


Nameplate Specifications























































Output HP: 1.0/.125 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 115 V
Current: 10.8/2.8 A Speed: 3450/1725 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48Y Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y


Technical Specifications















































Electrical Type: Cap Start Low Speed, Psc High Speed Poles: 2/4
Rotation: Counterclockwise Pump End Mounting: Thru Bolt
Motor Orientation: Horizontal Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 12.71 in
Frame Length: 7.50 in Shaft Diameter: 0.500 in
Shaft Extension: 2.375 in


  • Electric Motor
  • 48Y
  • ODP
  • Single Phase
  • 1HP
  • 0.12HP
  • 3600RPM
  • Pool Pump

Century Electric Motor (Regal Rexnord)
