Features
- Heavy gauge steel frame and base
- Thermal protection, as noted
- Capacitor start design for high starting torque
- Capacitor start/capacitor run design for higher efficiency, as noted
- 48Y and 48YZ frame have 48/56 frame mounting holes
General Specifications
|

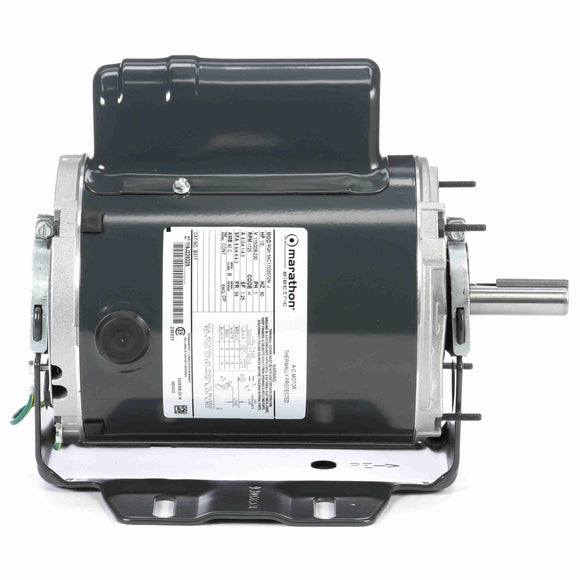

Model : |
056C17D2072 |
Catalog No : |
B317 |
|
Part Description : |
1/2,1725,DP,56,1/60/115/208-230 |
Category : |
Open Drip Proof (ODP) |
|
Stock : |
Yes |
Nameplate Specifications
|
Output HP : |
0.50 Hp |
Output KW : |
0.37 kW |
|
Frequency : |
60 Hz |
Voltage : |
115/208-230 V |
|
Current : |
8.0/4.1-4.0 A |
Speed : |
1725 rpm |
|
Service Factor : |
1.25 |
Phase : |
1 |
|
Efficiency : |
66 % |
Duty : |
Continous |
|
Insulation Class : |
B |
Design Code : |
NO DESIGN CODE |
|
KVA Code : |
H |
Frame : |
56 |
|
Enclosure : |
Drip Proof |
Overload Protector : |
Automatic |
|
Ambient Temperature : |
40 °C |
Drive End Bearing Size : |
6203 |
|
Opp Drive End Bearing Size : |
6203 |
UL : |
Recognized |
|
CSA : |
Y |
CE : |
N |
|
IP Code : |
22 |
Technical Specifications
|
Electrical Type : |
Capacitor Start Induction Run |
Starting Method : |
Across The Line |
|
Poles : |
4 |
Rotation : |
Selective Counterclockwise |
|
Mounting : |
Resilient Base - Extended Studs |
Motor Orientation : |
Horizontal |
|
Drive End Bearing : |
Ball |
Opp Drive End Bearing : |
Ball |
|
Frame Material : |
Rolled Steel |
Shaft Type : |
T |
|
Overall Length : |
10.32 in |
Shaft Diameter : |
0.625 in |
|
Shaft Extension : |
1.88 in |
Assembly/Box Mounting : |
F1 Only |
|
UPC : |
722856023179 |
Weight : |
20.00 LB |
