Features
Features

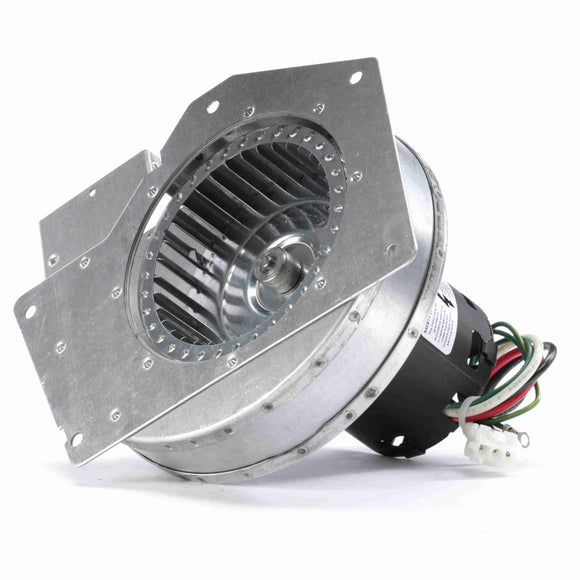

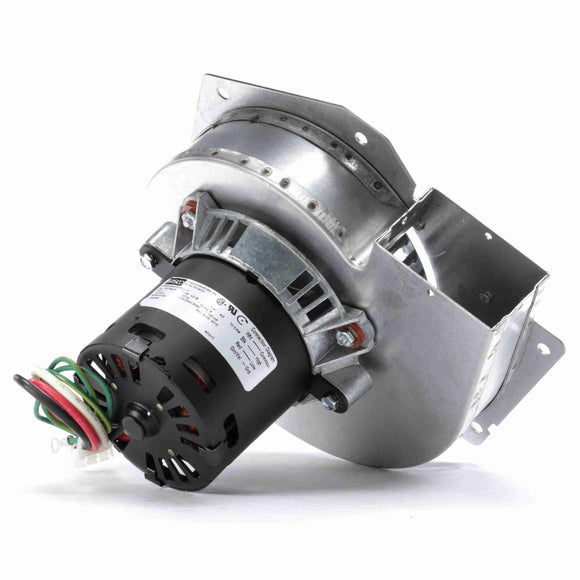

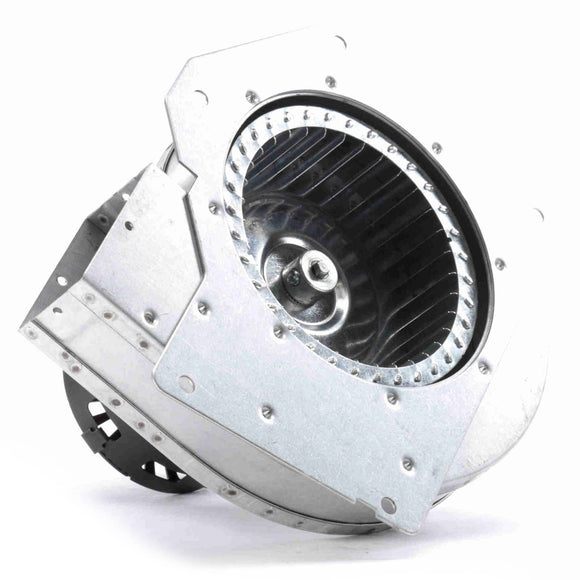

- OEM Direct Replacement - Draft Inducer Blower
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 6" Leads with Pin Housing Terminal
- 70 CFM
General Specifications
General Specifications
|
Model : |
Catalog No : |
A146 | |
|
Part Description : |
70219416.BLOWER...2 SPD. |
Category : |
Draft Inducer |
|
Stock : |
Yes |
Nameplate Specifications
Nameplate Specifications
|
Voltage : |
115 V |
Motor Type : |
Shaded Pole |
|
Overload Protector : |
Thermally |
Speed : |
3000/2300 RPM |
|
Current : |
1.0/.35 A |
Number of Speeds : |
2 |
|
Frequency : |
60 Hz |
Phase : |
1 |
|
Ambient Temperature : |
40 °C |
UL : |
Yes |
|
Insulation Class : |
B |
CSA : |
Yes |
Technical Specifications
Technical Specifications
|
Blower Outlet Shape : |
Rectangle |
Motor Enclosure : |
Open |
|
Blower Outlet Flange : |
No |
Bearing Type : |
Sleeve |
|
UPC : |
815585026501 |
Weight : |
6.00 LB |
