Features
Features

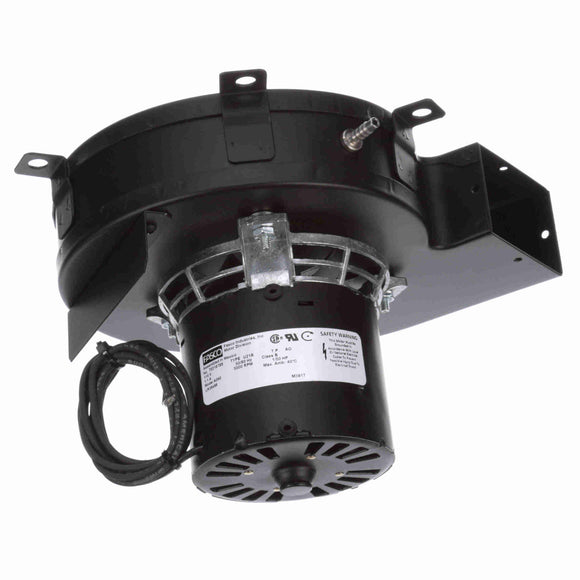

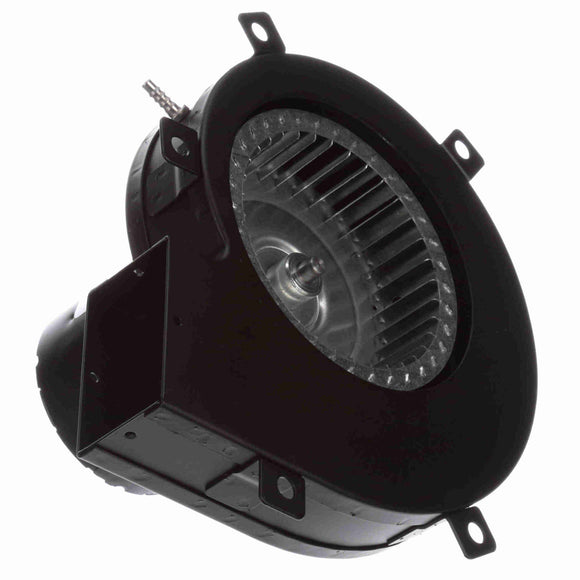

- OEM Direct Replacement - Draft Inducer Blower
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- (1) 22" & (1) 31" Lead with Stripped ends
General Specifications
General Specifications
|
Model : |
Catalog No : |
A090 | |
|
Part Description : |
70218788.BLOWER...1 SPD. |
Category : |
Draft Inducer |
|
Stock : |
Yes |
Nameplate Specifications
Nameplate Specifications
|
Voltage : |
115 V |
Motor Type : |
Shaded Pole |
|
Overload Protector : |
Thermally |
Speed : |
3000 RPM |
|
Current : |
1.1 A |
Number of Speeds : |
1 |
|
Frequency : |
50/60 Hz |
Phase : |
1 |
|
Ambient Temperature : |
40 °C |
UL : |
Yes |
|
Insulation Class : |
B |
CSA : |
Yes |
Technical Specifications
Technical Specifications
|
Blower Outlet Shape : |
Rectangle |
Motor Enclosure : |
Open |
|
Blower Outlet Flange : |
No |
Bearing Type : |
Sleeve |
|
UPC : |
815585025702 |
Weight : |
5.00 LB |
Speed & Load Characteristics
CFM At Static Pressure
| 0.0 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 |
| 90 | 86 | 84 | 78 | 73 | 66 |
