Features

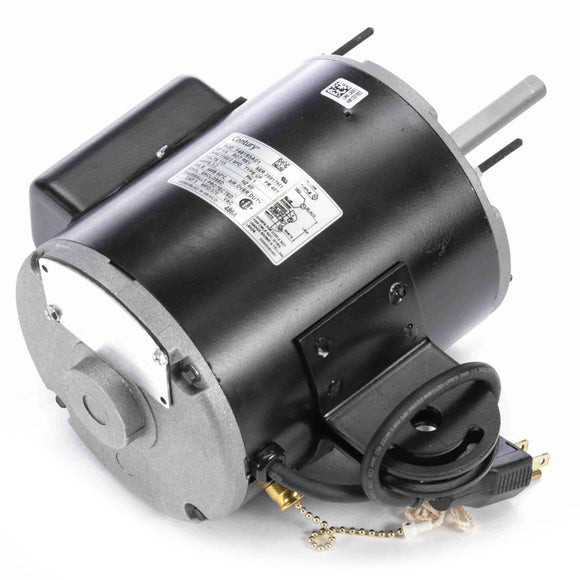

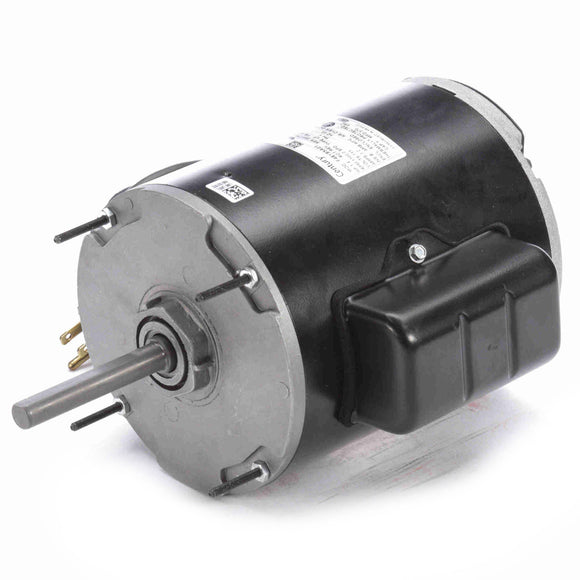

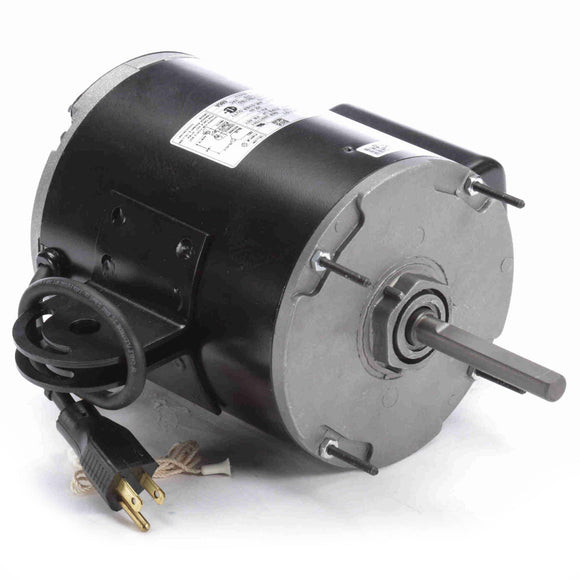

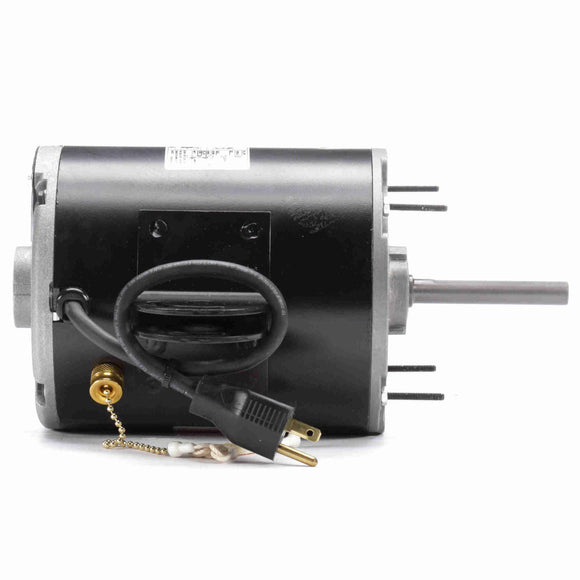

- Pedestal Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 12" Leads with Molded Plug
- Yoke Mount
General Specifications
| UPC: | 786674010223 | Weight: | 21.00 LB |
| Packaged Length: | 11.7 IN | Packaged Width: | 7.3 IN |
| Packaged Height: | 10.3 IN |
Nameplate Specifications
| Output HP: | 1/4 Hp | Output KW: | 0.19 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 3.2 A | Speed: | 1100 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 48Y | Enclosure: | Totally Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 60 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Induction Run |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Yoke | Motor Orientation: | Horizontal |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | Flat |
| Overall Length: | 10.65 in | Frame Length: | 6.00 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 3.5 FLAT in |
Speed & Load Characteristics
