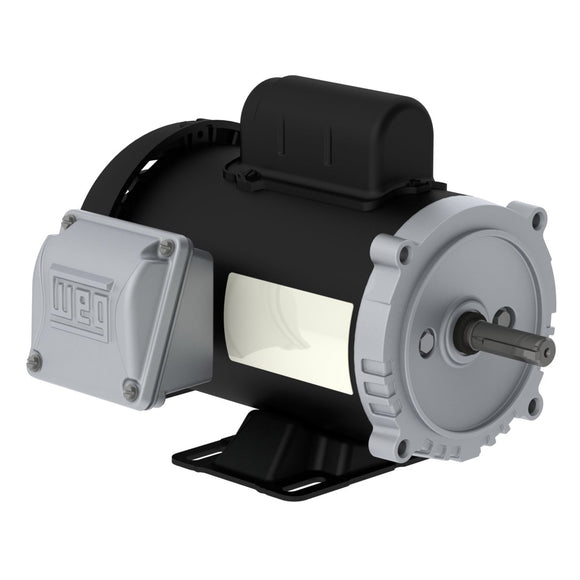

Electric Motors
| Frame | W56C |
|---|---|
| Output | 0.25 HP (0.18 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3485 rpm |
| Slip | 3.19 % |
| Rated voltage< | 115/208-230 V |
| Rated current | 4.20/2.32-2.10 A |
| L. R. Amperes< | 27.7/15.3-13.8 A |
| LRC | 6.6x(Code P) |
| No load current< | 3.20/1.38-1.60 A |
| Rated torque | 0.372 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 300 % |
| Locked rotor time | 19s (cold) 11s (hot) |
| Moment of inertia (J) | 0.0147 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 66.0 dB(A) |
| Approx. weight³ | 17.3 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 35.0 | 44.0 | 50.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.60 | 0.68 | 0.74 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 0.881" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Plastic |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | Not Balanced |
| Drip Cover | Without |
| Resilient Base | Without |
