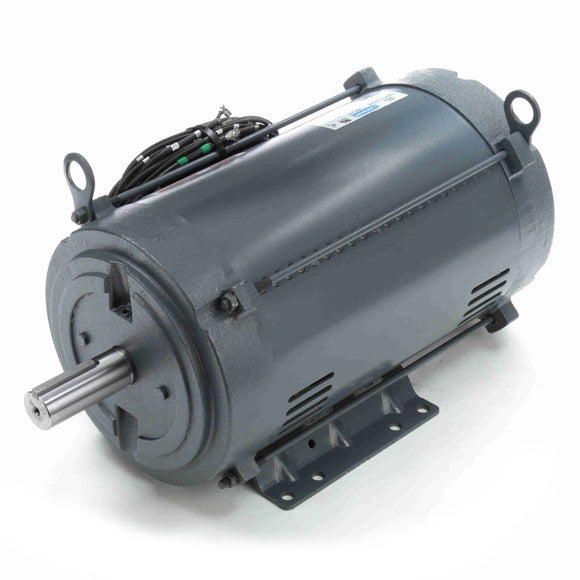

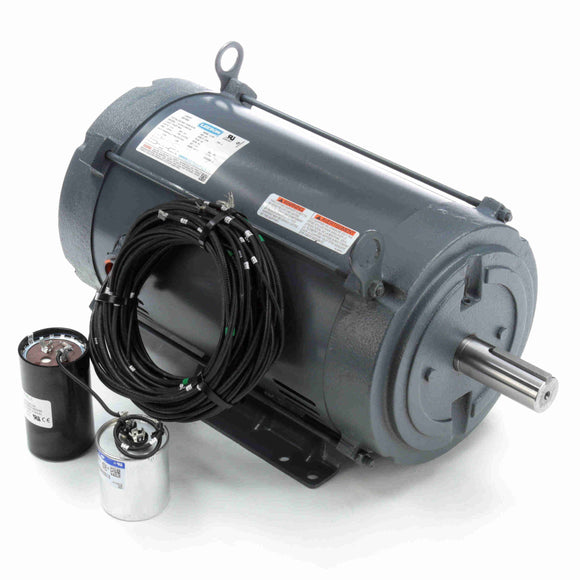

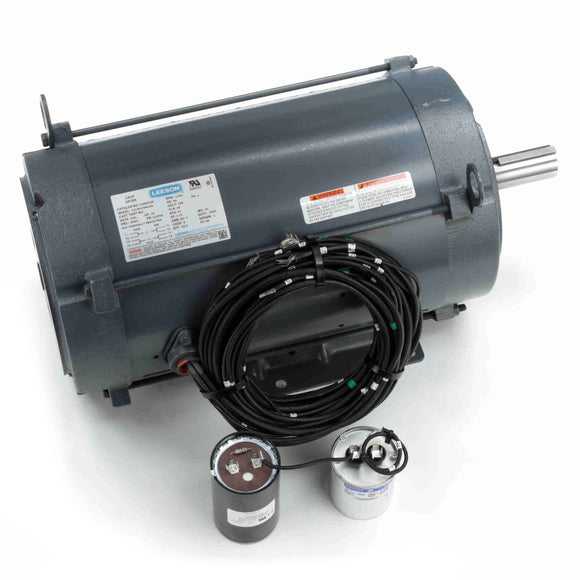

140816.00 10HP Leeson Ag-Duty Tobacco Barn Motor

$1,514.97 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 140816.00 Barcode: 691720053669

30 Day
Return Policy

Ships Fast
in 24 hours

DPAO, 215TVZ Frame, 230VAC Single Phase 60Hz, C215K17DB13A, Rigid Base, Rolled Steel, 1-3/8" Keyed Shaft

Description Product Specs Manufacturer
Used in Tobacco Barns and other applications that require a fan motor in a high ambient condition. Features: • Drip-proof airover designs • Class H insulation for high ambient conditions • 80° C ambient rated • 120 inch leads • Oversized double sealed bearings • 1/4-20 tapped hole at end of shaft
Volts 230   Volts   Volts
FL Amps 44   FL Amps   FL Amps
SF Amps 51   SF Amps   SF Amps
RPM 1800   Hertz 60
HP 10   Duty CONTINUOUS   Type KD
KW 7.5   SF 1.15   Phase 1
Frame 215TVZ   Design L   KVA Code G
Ambient 80   Protection NOT   Therm.Prot.
Insulation Class H   Eff(75%)   PF 89
Eff(100%) 82.5   CSA Y   Bearing OPE 6206
UL Y-(LEESON UL REC)   CE N   Bearing PE 6307
CC Number EXEMPT   Inverter Type   Speed Range NONE
LOad Type
Motor Wt. 150 LB   Enclosure DPAO   Lubrication DC 44M
Nameplate   Mounting RIGID   Rotation SELECTIVE CCW
Shaft Diam.   Cust Part No.   Packaging F
    Winding BK104121   Carton Label
    Group 2   Iris
Paint GRAY - LEESON (EPOXY)   Hazardous Location NONE   Test Card
  • Electric Motor
  • 215TVZ
  • DPAO
  • Single Phase
  • 10HP
  • 1800RPM

Leeson Electric (Regal Rexnord)
