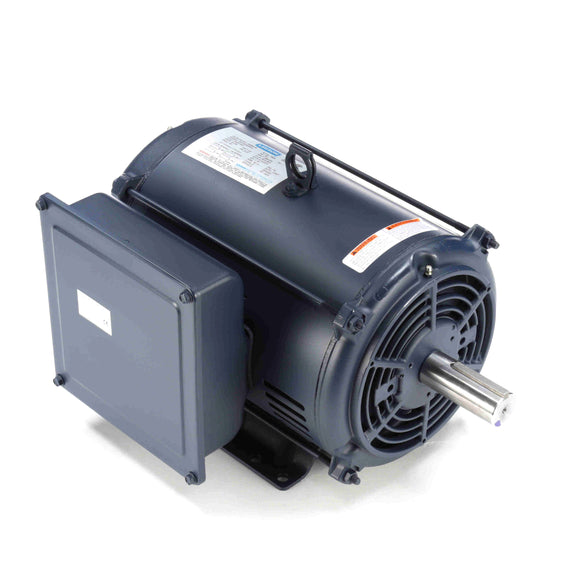

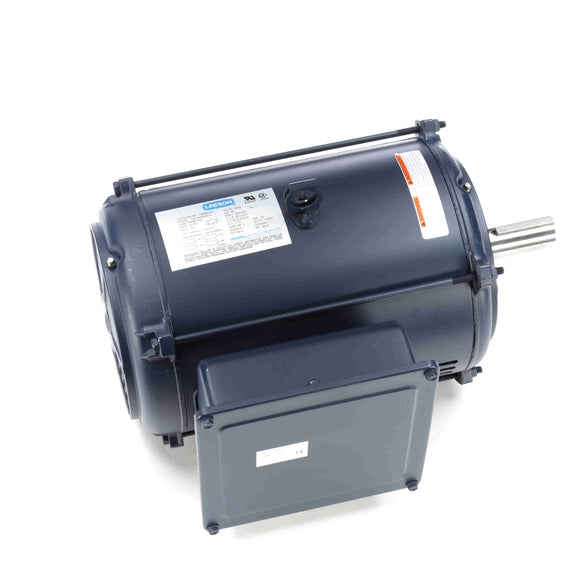

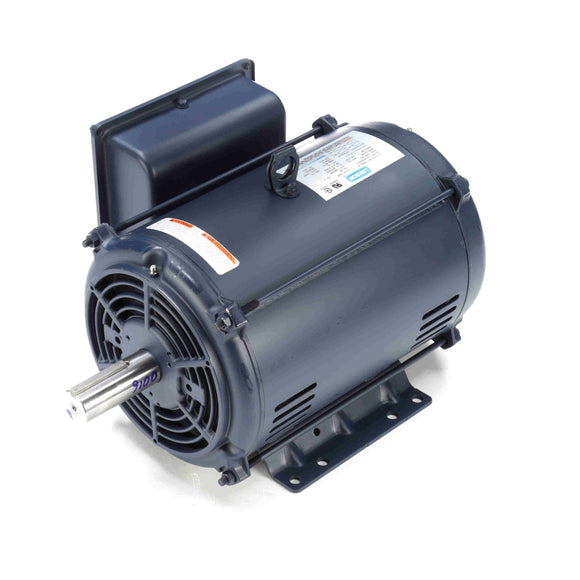

Features
- Double shielded ball bearings
- Designed for belted loads
- High efficient copper windings
- High starting and breakdown torque
- Dual rotation
General Specifications
| Model : | C213K34DB1A | Catalog No : | 140680.00 |
| Part Description : | ..7 1/2HP..3520RPM.213T.DP.208-230V.1PH.60HZ.CONT.40C.1.15SF.RIGID.C213K34DB1A.....GENERAL PURPOSE.NOT....... | Category : | Air Compressor |
| Stock : | No |
Nameplate Specifications
| Output HP : | 7.5 Hp | Output KW : | 5.6 kW |
| Frequency : | 60 Hz | Voltage : | 208-230 V |
| Current : | 32.5-29.5 A | Speed : | 3520 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 87.5 % | Duty : | CONTINUOUS |
| Insulation Class : | F | Design Code : | NO DESIGN CODE |
| KVA Code : | H | Frame : | 213T |
| Enclosure : | DP | Overload Protector : | NOT |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 307 |
| Opp Drive End Bearing Size : | 206 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 22 |
Technical Specifications
| Electrical Type : | CAP START CAP RUN | Starting Method : | ACROSS THE LINE |
| Poles : | 2 | Rotation : | SELECTIVE CCW |
| Mounting : | RIGID | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | ROLLED STEEL | Shaft Type : | T |
| Overall Length : | 18.04 in | Frame Length : | 11.15 in |
| Shaft Diameter : | 1.38 in | Shaft Extension : | 3.38 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720252246 |
| Weight : | 115.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 223.00 | 362.00 | 3,232.0 | 0 | 7.50 | |||
| Full Load | 29.50 | 11.20 | 100.0 | 3,524 | 7.50 | |||
| Break-Down | 130.00 | 32.00 | 286.0 | 3,110 | 7.50 | |||
| Pull-Up | 216.00 | 25.30 | 226.0 | 230 | 7.50 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 6.10
- 0.480
- 0.0
- 34.2
- 3,597
- 0.0
- 0.00
- 25 %
- 9.90
- 1.800
- 79.2
- 79.1
- 3,581
- 0.0
- 2.80
- 50 %
- 15.80
- 3.245
- 85.8
- 89.3
- 3,564
- 0.0
- 5.50
- 75 %
- 22.30
- 4.750
- 89.1
- 92.6
- 3,545
- 0.0
- 8.40
- 100 %
- 29.50
- 6.340
- 88.5
- 93.5
- 3,520
- 27.0
- 11.20
- 115 %
- 33.90
- 7.120
- 88.1
- 93.8
- 3,510
- 0.0
- 12.70
- 125 %
- 37.10
- 8.030
- 87.4
- 94.1
- 3,502
- 0.0
- 14.10
- 150 %
- 45.60
- 9.820
- 85.5
- 93.6
- 3,477
- 0.0
- 17.00
