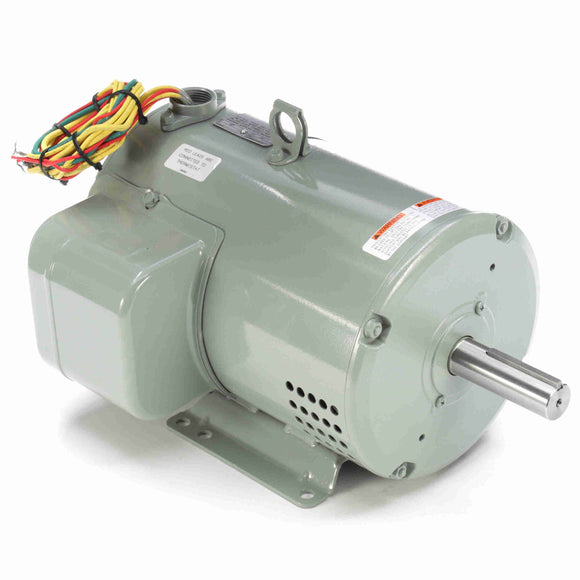

Used on Crop Dryers with air over/fan on shaft designs
Features:
• Class “F†insulation system
• Overload protected
• Keyed shaft with 1/4-20 UNC tapped hole on end
• 34†long leads
• Motor venting protected against insects and rodents
• Double sealed ball bearings
Features
Class “F†insulation system
Overload protected
34†long leads
Motor venting protected against insects and rodents
Double sealed ball bearings
General Specifications
UPC:
691720154458 Weight:
98.00 LB
Packaged Length:
17.94 IN Packaged Width:
13.06 IN
Packaged Height:
12.88 IN
Nameplate Specifications
Output HP:
7.50 Hp Output KW: 5.6 kW
Frequency:
60 Hz Voltage:
230 V
Current:
31.0 A Speed:
3450 rpm
Service Factor:
1 Phase:
1
Efficiency:
82.5 % Power Factor:
93.5
Duty:
Continuous Insulation Class:
F
Design Code:
L KVA Code:
G
Frame:
182TZ Enclosure:
Drip Proof Air Over
Thermal Protection:
Thermostats 140 deg. C (N/C) Ambient Temperature:
40 °C
Drive End Bearing Size:
6206 Opp Drive End Bearing Size:
6205
UL:
Recognized CSA:
Y
CE:
N IP Code:
22
Number of Speeds:
1
Technical Specifications
Electrical Type:
Capacitor Start Capacitor Run Starting Method:
Across The Line
Poles:
2 Rotation:
Selective Counterclockwise
Resistance Main:
.214 Ohms Mounting:
Rigid Base
Motor Orientation:
Horizontal Drive End Bearing:
Ball
Opp Drive End Bearing:
Ball Frame Material:
Rolled Steel
Shaft Type:
Single Special Extension Overall Length:
16.44 in
Frame Length:
11.50 in Shaft Diameter:
1.125 in
Shaft Extension:
3.5 in Assembly/Box Mounting:
F1 ONLY
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (LB-FT)
Torque (%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Break-Down
130.00
419.0
30.00
269.0
3,100
0.00
0.0
7.50
Pull-Up
233.00
752.0
24.20
217.0
30
0.00
0.0
7.50
Locked-Rotor
235.00
758.0
22.00
195.0
0
0.00
0.0
7.50
Full Load
31.00
100.0
11.17
100.0
0
0.00
0.0
7.50
Load Characteristics
% of Rated Load
0 %
25 %
50 %
75 %
100 %
115 %
125 %
150 %
Current (Amps)
7.60
11.20
17.10
23.60
31.00
35.40
38.60
47.10
Rated Output (KW)
0.62
2.11
3.62
5.15
6.78
7.85
8.60
10.48
Efficiency (%)
0.0
67.5
78.3
82.0
82.5
81.9
81.1
79.8
Power Factor (%)
35.6
81.8
91.9
92.5
93.5
97.0
96.9
96.7
Speed (RPM)
3,598
3,580
3,561
3,541
3,515 3,505
3,496
3,467
Temp. Rise @ FL
0.0
0.0
0.0
0.0
53.0
70.0
0.0
0.0
Torque (LB-FT)
0.00
2.80
5.60
8.40
11.17
12.92
14.05
16.98
Leeson Electric (Regal Rexnord)
