Features
Features

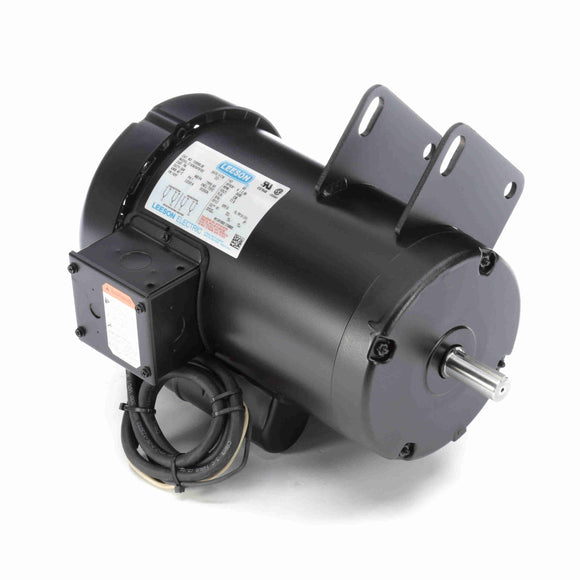

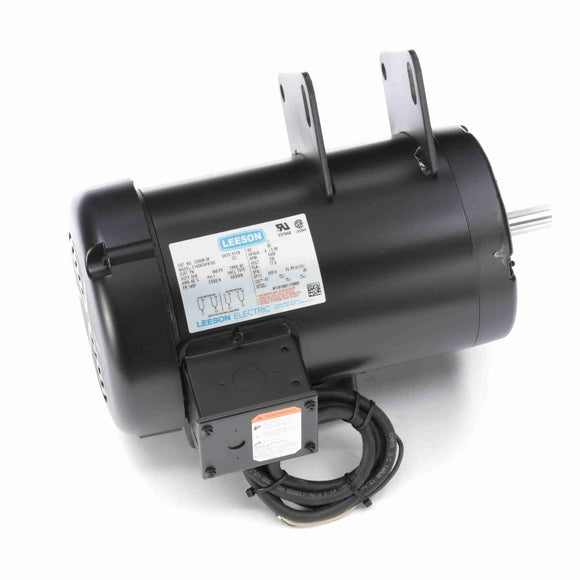

- Motor pivots on rod for belt tensioning
- Extra high breakdown torques for maximum cutting power
- 3/4†Dia. Shaft, 1-3/4†long with keyway
- Includes 54 inch cord
General Specifications
General Specifications
| Model : | C145K34FB16E | Catalog No : | 120998.00 |
| Part Description : | 4HP..3450RPM.145.TEFC./230V.1PH.60HZ.SAW.NOT.40C.1.0SF.ROUND.WOODWORKING.C145K34FB16E | Category : | Other Purpose |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 4 Hp | Output KW : | 3.0 kW |
| Frequency : | 60 Hz | Voltage : | 230 V |
| Current : | 17.6 A | Speed : | 3450 rpm |
| Service Factor : | 1 | Phase : | 1 |
| Efficiency : | 84 % | Duty : | Saw |
| Insulation Class : | F | Design Code : | NO DESIGN CODE |
| KVA Code : | H | Frame : | 145Y |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 43 |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Fixed Counterclockwise |
| Mounting : | Round | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | Single Special Extension |
| Overall Length : | 12.86 in | Frame Length : | 8.50 in |
| Shaft Diameter : | 0.750 in | Shaft Extension : | 1.75 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720016497 |
| Weight : | 51.00 LB |
