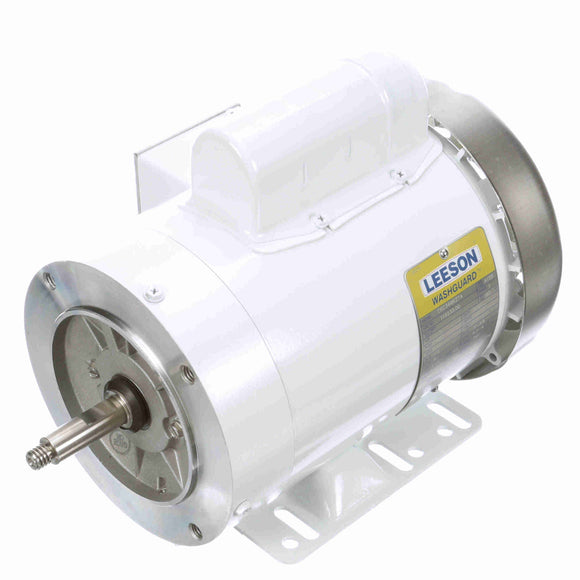

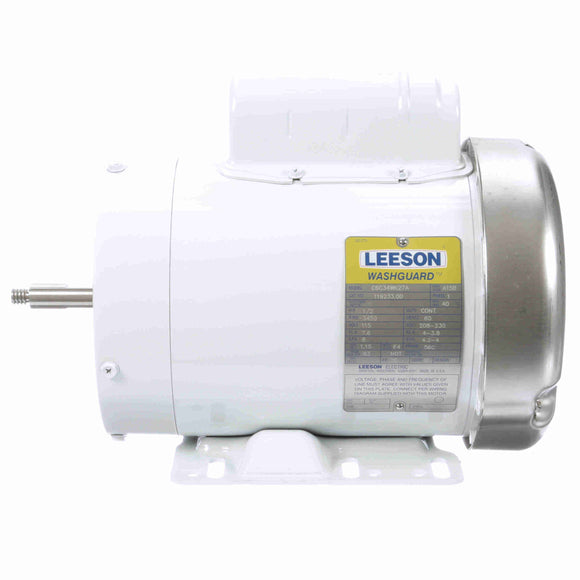

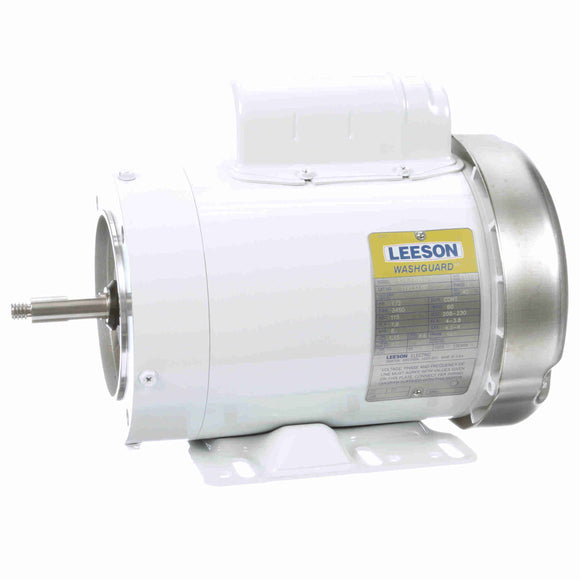

Features:
• Replacements for SURGE® milk pumps
• WASHGUARD® motor features for high pressure washdown applications
• Epoxy painted and stainless ratings available for corrosion protection
• Solid state encapsulated starting switch on capacitor start motors
Features
Replacements Motors for BouMatic Milk Pumps
WASHGUARD® motor features for high pressure washdown applications
Epoxy painted and stainless ratings available for corrosion protection
Single phase motors are capacitor start - induction run designs
Solid state encapsulated starting switch on single phase motors
Three phase motors are inverter rated
General Specifications
UPC:
691720053775 Weight:
30.00 LB
Packaged Length:
14.44 IN Packaged Width:
10.44 IN
Packaged Height:
10.88 IN
Nameplate Specifications
Output HP:
0.50 Hp Output KW:
0.37 kW
Frequency:
60 Hz Voltage:
115/208-230 V
Current:
7.6/4.0-3.8 A Speed:
3450 rpm
Service Factor:
1.15 Phase:
1
Efficiency:
63 % Power Factor:
70
Duty:
Continuous Insulation Class:
F
Design Code:
N KVA Code:
M
Frame:
56CZ Enclosure:
Totally Enclosed Fan Cooled
Thermal Protection:
No Ambient Temperature:
40 °C
Drive End Bearing Size:
6205 Opp Drive End Bearing Size:
6203
UL:
Recognized CSA:
Y
CE:
N IP Code:
43
Technical Specifications
Electrical Type:
Capacitor Start Induction Run Starting Method:
Across The Line
Poles:
2 Rotation:
Selective Clockwise
Resistance Main:
4.42 Ohms Mounting:
Rigid base
Motor Orientation:
HORIZONTAL Drive End Bearing:
BALL
Opp Drive End Bearing:
BALL Frame Material:
Rolled Steel
Shaft Type:
JET PUMP SPL EXT Overall Length:
12.62 in
Frame Length:
6.50 in Shaft Diameter:
0.625 in
Shaft Extension:
2.19 in Assembly/Box Mounting:
F1 Only
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
Torque (%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Locked-Rotor
22.00
45.00
375.0
0
0.50
Break-Down
0.00
32.00
267.0
0
0.50
Pull-Up
0.00
32.00
267.0
0
0.50
Load Characteristics
% of Rated Load
0 %
25 %
50 %
75 %
100 %
125 %
150 %
Current (Amps)
2.80
2.88
3.09
3.34
3.69
4.18
4.74
Rated Output (KW)
0.16
0.26
0.37
0.47
0.59
0.72
0.86
Efficiency (%)
0.0
36.0
51.1
59.3
63.0
64.9
65.1
Power Factor (%)
24.8
39.3
51.6
61.6
70.0
74.9
79.0
Speed (RPM)
3,598
3,564
3,538
3,515
3,486
3,456
3,420
Temp. Rise @ FL
0.0
0.0
0.0
0.0
46.0
0.0
0.0
Torque (ft-lbs)
0.00
2.96
5.97
8.99
12.09
15.23
18.45
Leeson Electric (Regal Rexnord)
