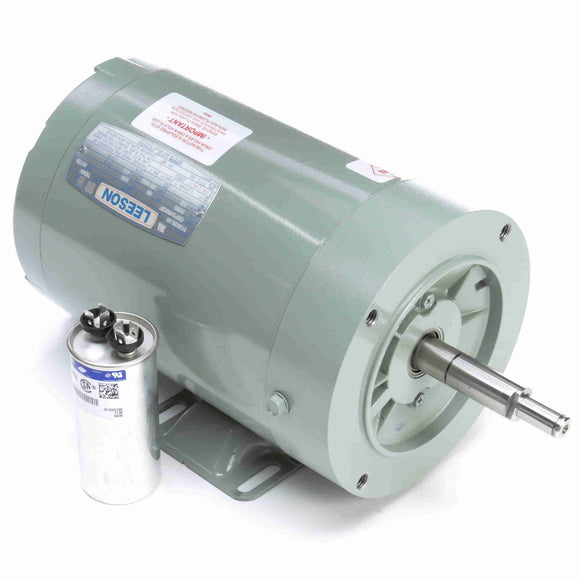

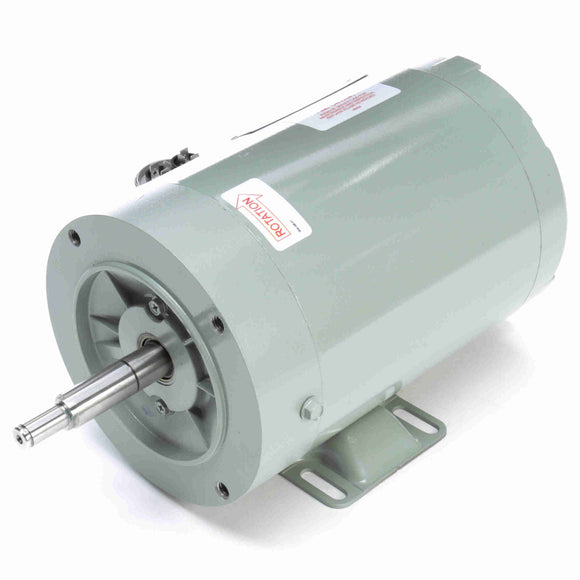

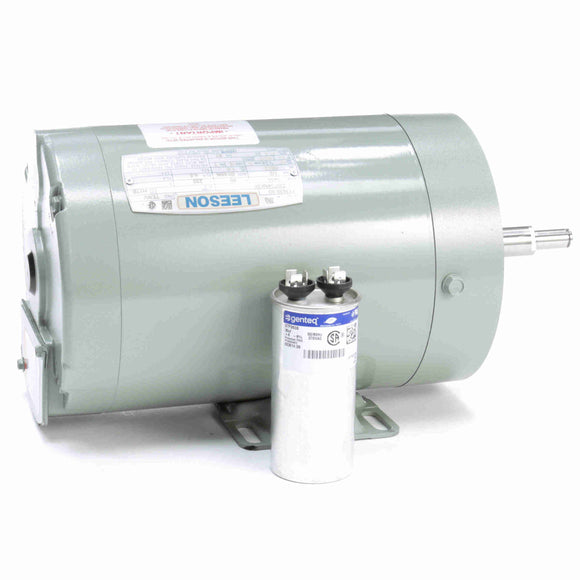

Milk Transfer motor
Totally enclosed non-ventilated design. Direct replacement for Surge milk pumps, Babson motor #27732. 1-phase, ½ HP, 3450 RPM. Epoxy painted.
Catalog No113939.00ModelC6P34NK5F
Product typeAC MOTORStockStock
Description
1/2HP..3450RPM.56.TENV./230V.1PH.60HZ.60 MIN.NOT.40C.SPECSF.RIGID C.AG - MILK TRANSFER.C6P34NK5F
Features
- Replacements for SURGE® milk pumps
- WASHGUARD® motor features for high pressure washdown applications
- Epoxy painted and stainless ratings available for corrosion protection
- Solid state encapsulated starting switch on capacitor start motors
- Three phase motor is inverter rated
General Specifications
| UPC: |
691720013038 |
Weight: |
39.00 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
7.94 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
230 V |
| Current: |
4.5 A |
Speed: |
3450 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
57.5 % |
Power Factor: |
67 |
| Duty: |
60 Minute |
Insulation Class: |
F |
| Design Code: |
N |
KVA Code: |
H |
| Frame: |
56CZ |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
2 |

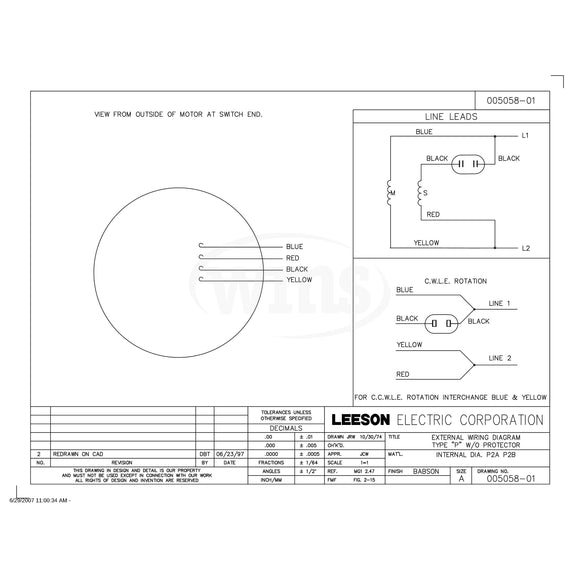

Rotation: |
Selective Counterclockwise |
| Resistance Main: |
2.455 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |

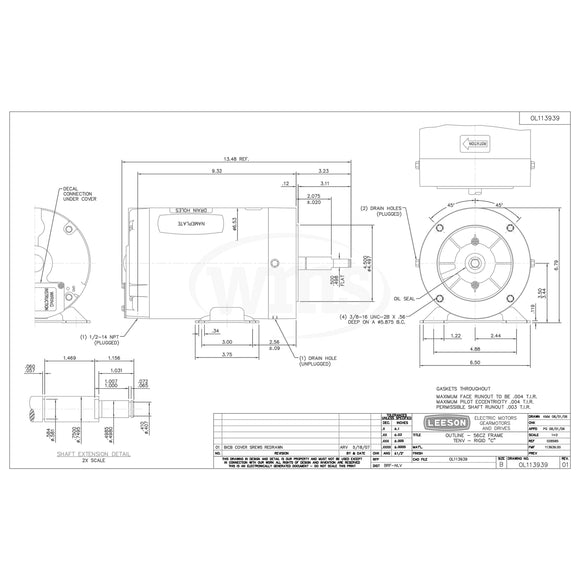

Overall Length: |
13.48 in |
| Frame Length: |
7.00 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
3.11 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
Torque (%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
0.00 |
|
56.00 |
467.0 |
2,650 |
|
|
0.50 |
| Locked-Rotor |
15.00 |
|
20.00 |
167.0 |
0 |
|
|
0.50 |
| Full Load |
4.50 |
|
12.00 |
100.0 |
3,497 |
|
|
0.50 |
| Pull-Up |
0.00 |
|
19.00 |
158.0 |
200 |
|
|
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
3.60 |
3.74 |
3.91 |
4.09 |
4.33 |
4.51 |
4.73 |
| Rated Output (KW) |
0.38 |
0.47 |
0.55 |
0.61 |
0.67 |
0.81 |
0.90 |
| Efficiency (%) |
0.0 |
19.8 |
34.3 |
46.4 |
56.0 |
57.8 |
62.5 |
| Power Factor (%) |
45.9 |
54.6 |
61.2 |
64.3 |
67.1 |
77.9 |
82.5 |
| Speed (RPM) |
3,570 |
3,547 |
3,531 |
3,514 |
3,497 |
3,478 |
3,456 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
100.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
2.95 |
6.02 |
9.00 |
12.04 |
15.13 |
18.28 |
Leeson Electric (Regal Rexnord)
