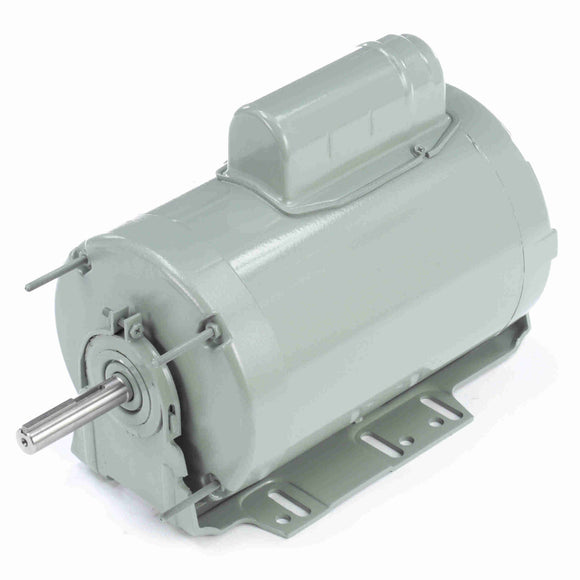

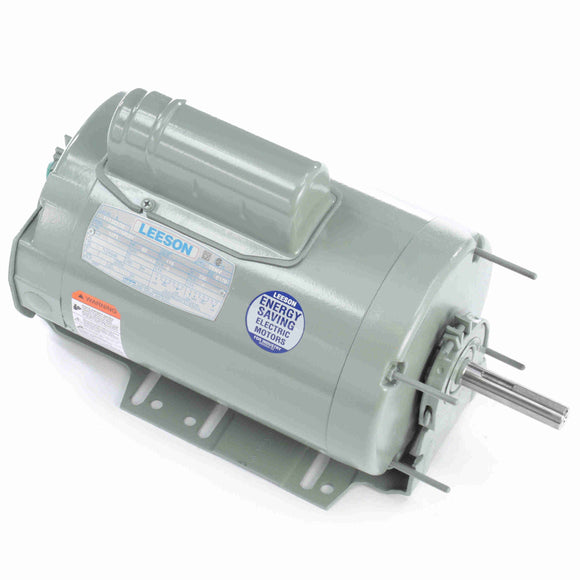

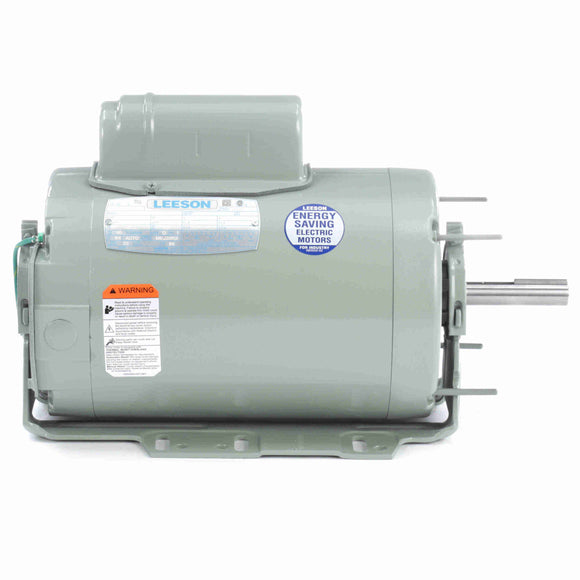

111322.00 Leeson 3/4HP 2-Winding Agricultural Fan Duty Electric Motor, 1075RPM

$402.38 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 111322.00 Barcode: 691720009857

30 Day
Return Policy

Ships Fast
in 24 hours

TEAO, 56HZ Frame, 115/230VAC Single Phase 60Hz, A6P11NR2H, Resilient Base

Description Product Specs Manufacturer
Volts 115   Volts 230   Volts
FL Amps 8   FL Amps 4   FL Amps
SF Amps   SF Amps   SF Amps
RPM 1075   Hertz 60
HP 3/4   Duty AIROVER   Type PN
KW .56   SF 1.0   Phase 1
Frame 56HZ   Design NO DESIGN CODE   KVA Code D
Ambient 40   Protection AUTOMATIC   Therm.Prot. MEJ26RX
Insulation Class B   Eff(75%)   PF 84
Eff(100%) 70   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE N   Bearing PE 6203
CC Number EXEMPT   Inverter Type   Speed Range NONE
LOad Type
Motor Wt. 47 LB   Enclosure TENV   Lubrication POLYREX EM
Nameplate 004004   Mounting RESILIENT BASE   Rotation SELECTIVE CCW
Shaft Diam. 5/8 IN   Cust Part No.   Packaging B
    Winding P63637   Carton Label Leeson Farm Duty
    Group 3   Iris
Paint GRAY - LIGHT (EPOXY)   Hazardous Location NONE   Test Card 02
  • Electric Motor
  • 56HZ
  • TEAO
  • Single Phase
  • 3/4HP
  • 1075RPM

Leeson Electric (Regal Rexnord)
