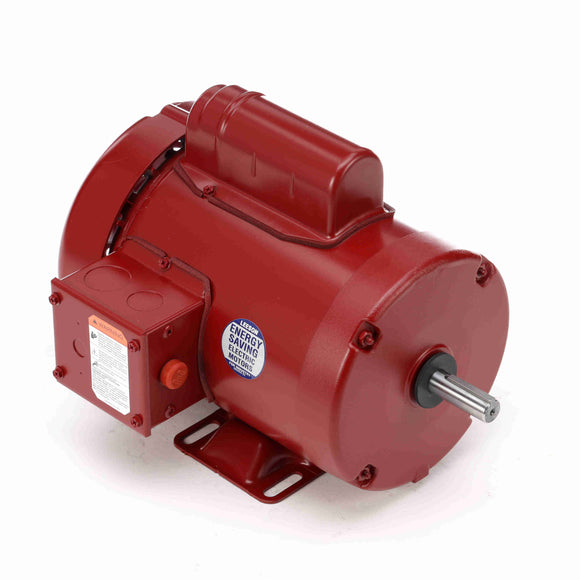

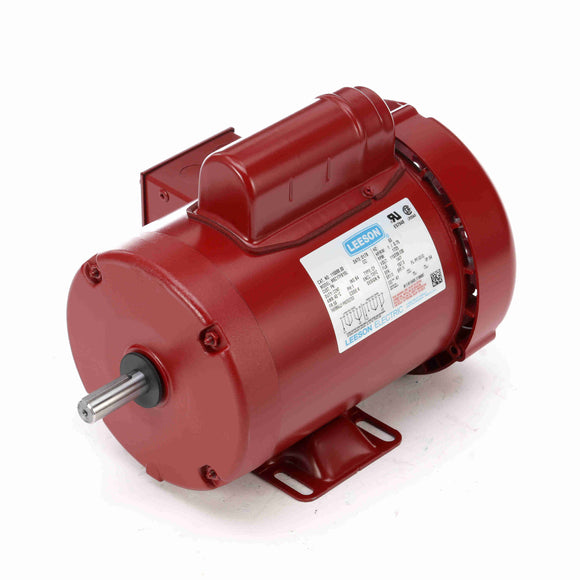

110088.00 1HP Leeson Farm Duty Electric Motor

$379.52 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 110088.00 Barcode: 691720007808

30 Day
Return Policy

Ships Fast
in 24 hours

General Purpose Electric Motor, High Torque, Tefc, 1725 Rpm, 56 Frame, 1 Phase, 115/208-230V,

4 In Stock!

Description Product Specs Manufacturer

Product Features
Catalog No 110088.00 Model M6C17FB10L
Product type AC MOTOR Stock Stock
Description ..1HP..1725RPM.56.TEFC.115/208-230VAC.1PH.60HZ.CONT.40C.1.15SF.RIGID.M6C17FB10L.....AG - FARM DUTY/GENERAL PURPOSE.MANUAL.......
Information shown is for current motor's design
 Engineering Data
Volts 115 Volts 208-230 Volts
F.L. Amps 14 F.L. Amps 7 F.L. Amps
S. F Amps 15 S. F Amps 7.5 S. F Amps
RPM 1800 Hertz 60
HP 1 Duty CONTINUOUS TYPE CF
KW 0.75
Frame 56 Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection MANUAL Therm.Prot. CED2797
Eff 100% 74 Eff 75% PF 63
UL Yes CSA Yes Bearing OPE 6203
CC Number CE No Bearing PE 6203
Load Type Inverter Type Speed Range NONE
Motor Wt. 33 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW

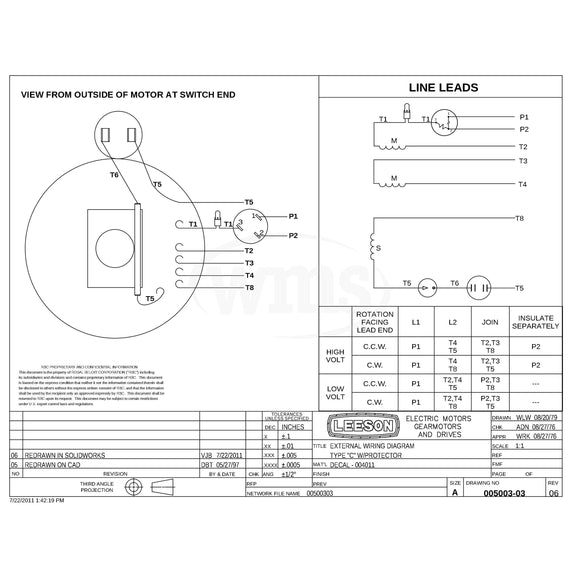

Assembly 042545 Shaft Dia. 5/8 IN Ext. Diag. 005003.03

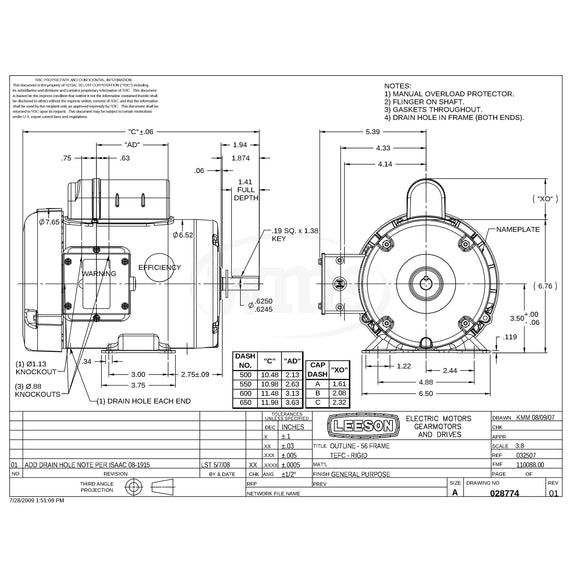

Cust Part No Outline 028774-650B Ext. Diag2
Packaging B Winding C634259
Carton Label Leeson Farm Duty     GROUP: 3
Iris Paint RED (ENAMEL) Test Card 04
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM OZ-FT Inertia (WK²) .099 LB-FT^2
Torque 48.16(Full Load) 132.6(Break Down) 117.6(Pull Up) 141.8(Locked Rotor)
CURRENT (amps) 7.01(Full Load) 17.9(Break Down) 29(Pull Up) 37.3(Locked Rotor)
Efficiency (%) 0(Full Load) 67.8(75% Load) 61.6(50% Load) 46.6(25% Load)
PowerFactor 0(Full Load) 57.8(75% Load) 46.9(50% Load) 33.3(25% Load)
Load Curve Data @60 Hz, 230 Volts, 1 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 4.85 0.206 1797 0.0 0.0 0.0 0.0 -
0.25 5.24 0.401 1787 11.74 46.6 33.3 0.0 -
0.5 5.61 0.606 1776 23.67 61.6 46.9 0.0 -
0.75 6.2 0.825 1764 35.74 67.8 57.8 0.0 -
1.0 7.01 1.063 1751 48.16 70.4 65.9 88.6 47.2
1.15 7.56 1.208 1743 55.44 71.0 69.4 102.0 56.3
1.25 7.97 1.312 1738 60.47 71.1 71.5 0.0 -
1.5 9.14 1.586 1722 73.28 70.6 75.5 0.0 -
SOURCE: CALCULATED GROUP: 3


  • Electric Motor
  • 56
  • TEFC
  • Single Phase
  • 1HP
  • 1800RPM
  • Farm Duty
  • Red

Leeson Electric (Regal Rexnord)
