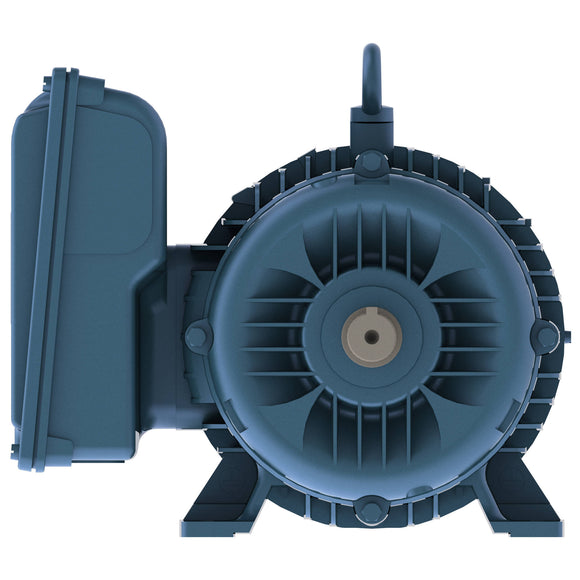

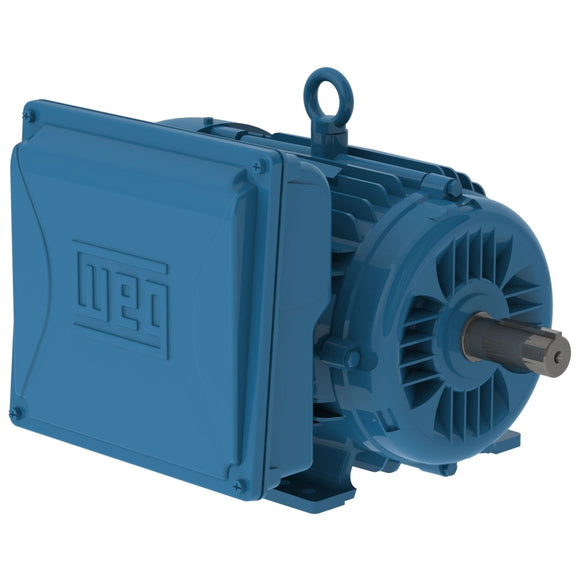

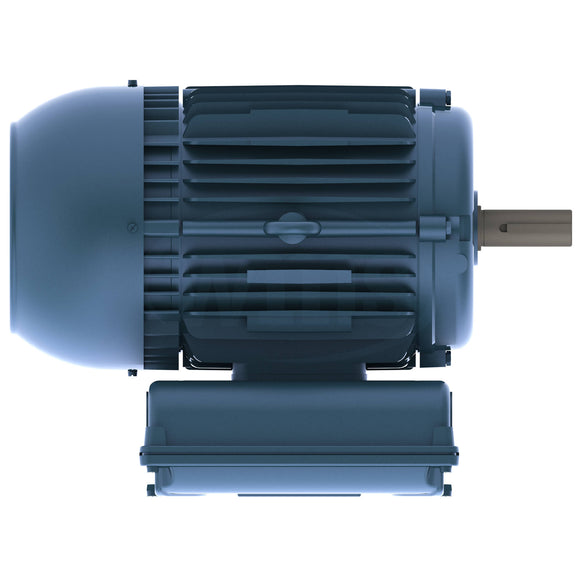

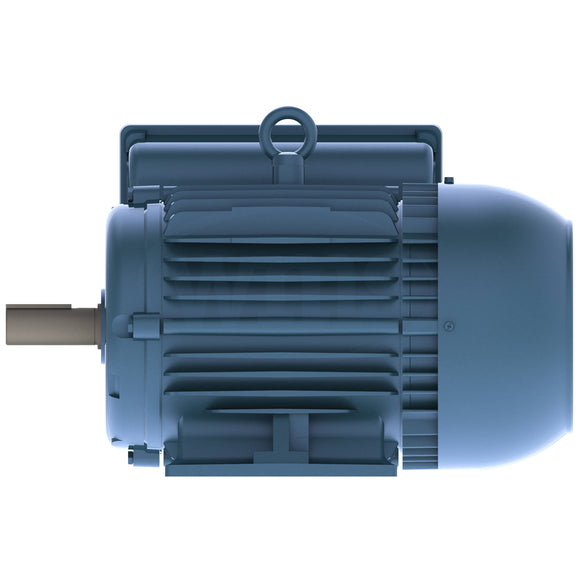

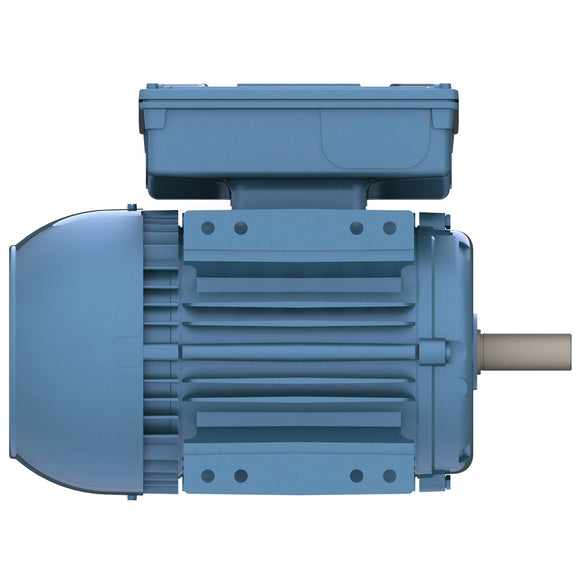

00536ES1B184T-W22 WEG 5HP Electric Motor, 3600RPM

$925.60 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00536ES1B184T-W22 Barcode: 7909323683354

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, IP55, 182T/184T Frame, 115/208-230VAC 60Hz Single Phase, 14165571, Foot Mount, Cast Iron Frame, 1-1/8" Keyed Shaft

Description Product Specs Manufacturer



Electric Motors





































Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 115/208-230 V
Rated current 41.1/22.1-20.8 A
L. R. Amperes 358/192-181 A
LRC 8.7x(Code K)
No load current 15.0/0.000-7.50 A
Rated torque 7.47 ft.lb
Locked rotor torque 320 %
Breakdown torque 320 %

































Locked rotor time 10s (cold) 6s (hot)
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 103 lb






(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

78.0
82.5
84.0



Power factor















50% 75% 100%

0.78
0.87
0.89








About this Product




V-Ring Seal



V-Ring Seal to keep liquids and dust out of the motor.





Capacitor



Available with a run capacitor, run and start capacitor or start capacitor.




        Cast Iron Frame



          • FC-200 (EN GJL 200) cast iron frames meet impact
            level IK08 (5J) ensuring superior mechanical strength
            for the most demanding applications.
          • Solid motor feet provide excellent rigidity, allowing
            easier alignment and installation.




        Cooling System



          • The cooling system (fan, non drive endshield and fan cover)
            is designed to minimize noise level and improve thermal efficiency.
          • Steel plate fan cover provides high mechanical strength,
            corrosion resistance and extended lifetime.



        Centrifugal Switch



          • The starting system of W22 single phase motors
            was completely redesigned to improve functionality,
            thus increasing system reliability and lifespan.





  • 230VAC
  • 208VAC
  • 115VAC
  • Electric Motor
  • 182T
  • 184T
  • TEFC
  • Single Phase
  • 5HP
  • 3600RPM
