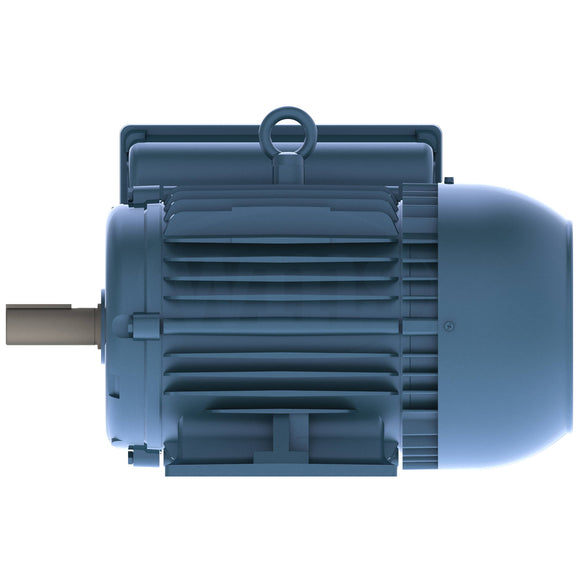

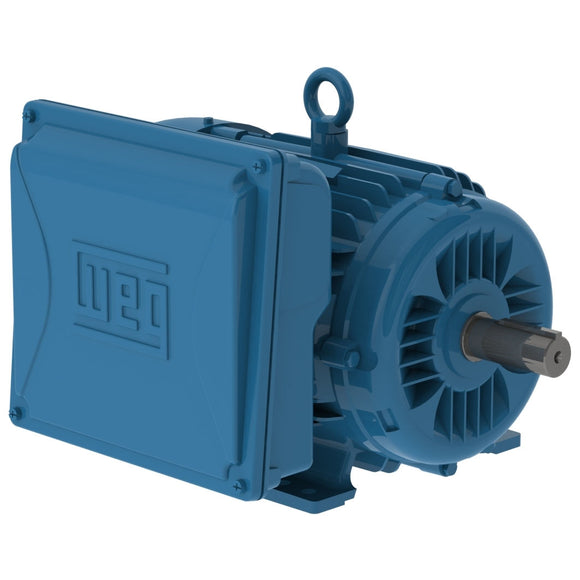

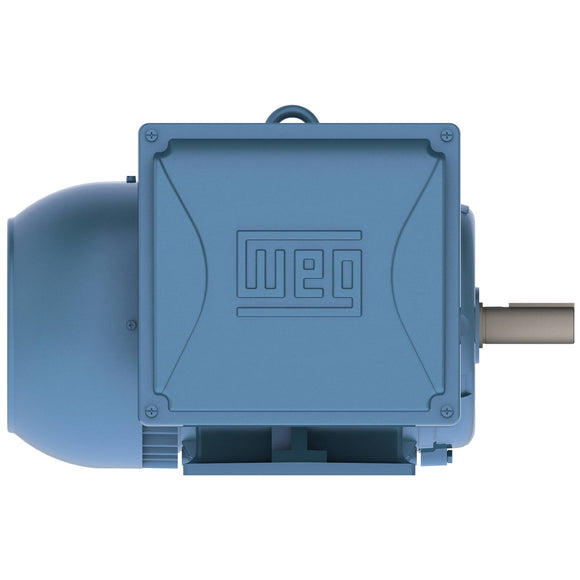

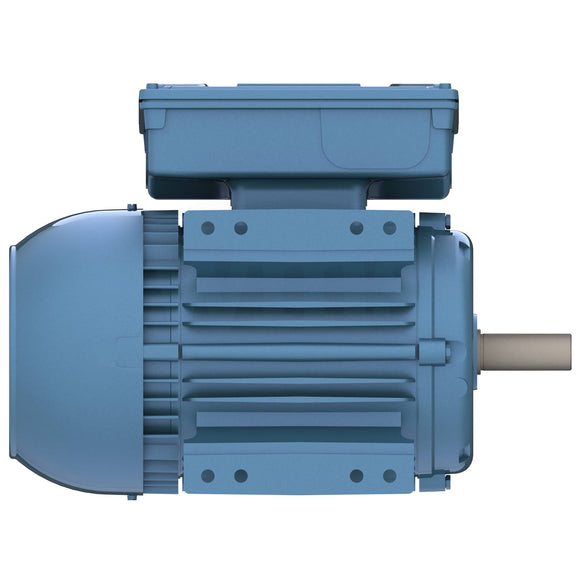

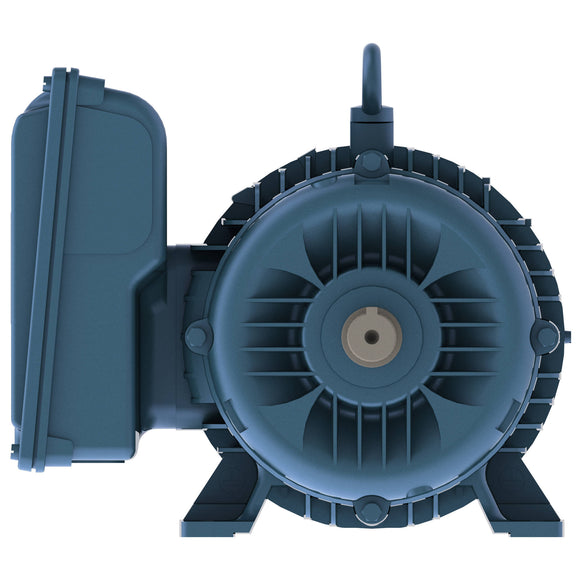

Electric Motors
| Frame | 182/4T |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1745 rpm |
| Slip | 3.06 % |
| Rated voltage | 208-230/460 V |
| Rated current | 14.5-13.8/6.90 A |
| L. R. Amperes | 112-106/53.1 A |
| LRC | 7.7x(Code K) |
| No load current | 5.78-6.70/3.35 A |
| Rated torque | 9.03 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 270 % |
| Locked rotor time | 14s (cold) 8s (hot) |
| Moment of inertia (J) | 0.3735 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 103 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
65.0 |
74.0 |
77.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.79 |
0.87 |
0.90 |
About this Product
V-Ring Seal
V-Ring Seal to keep liquids and dust out of the motor.
Capacitor
Available with a run capacitor, run and start capacitor or start capacitor.
- FC-200 (EN GJL 200) cast iron frames meet impact
level IK08 (5J) ensuring superior mechanical strength
for the most demanding applications. - Solid motor feet provide excellent rigidity, allowing
easier alignment and installation.
Cast Iron Frame
- The cooling system (fan, non drive endshield and fan cover)
is designed to minimize noise level and improve thermal efficiency. - Steel plate fan cover provides high mechanical strength,
corrosion resistance and extended lifetime.
Cooling System
- The starting system of W22 single phase motors
was completely redesigned to improve functionality,
thus increasing system reliability and lifespan.
Centrifugal Switch
