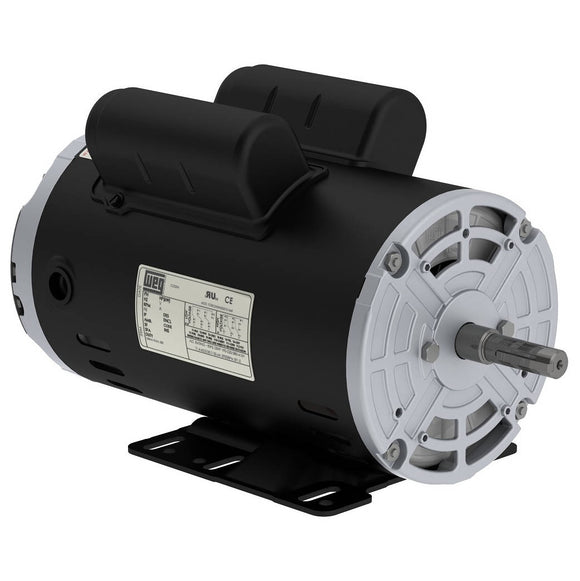

Electric Motors
| Frame | 56HZ |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1730 rpm |
| Slip | 3.89 % |
| Rated voltage | 115/208-230 V |
| Rated current | 17.7/9.50-8.87 A |
| L. R. Amperes | 115/61.7-57.7 A |
| LRC | 6.5x(Code H) |
| No load current | 6.20/2.67-3.10 A |
| Rated torque | 6.07 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 225 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 0.1614 sq.ft.lb |
|---|---|
| Design | L |
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | CCW |
| Noise level² | 52.0 dB(A) |
| Approx. weight³ | 52.1 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
83.0 |
84.0 |
84.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.75 |
0.83 |
0.87 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Automatic |
