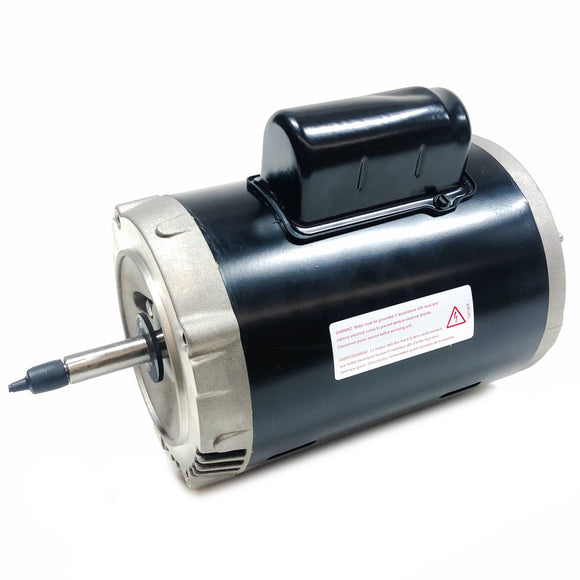

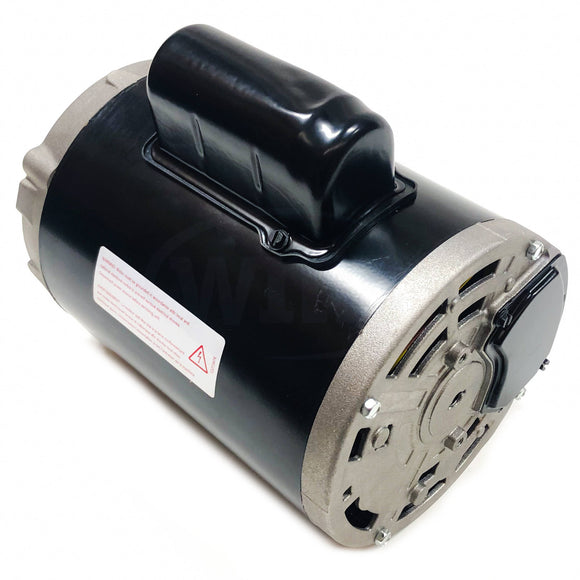

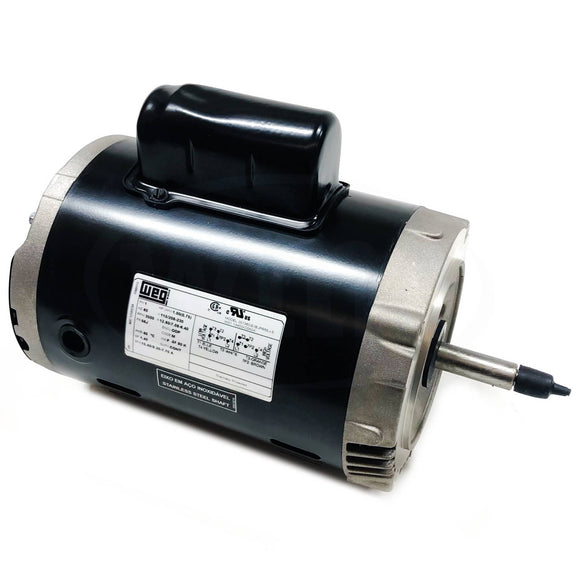

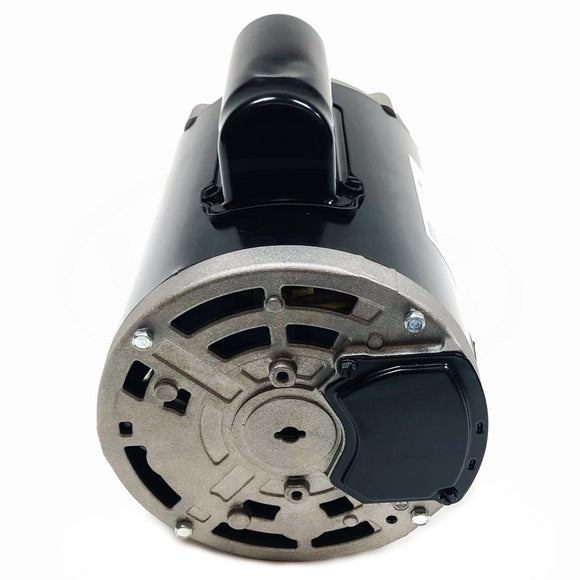

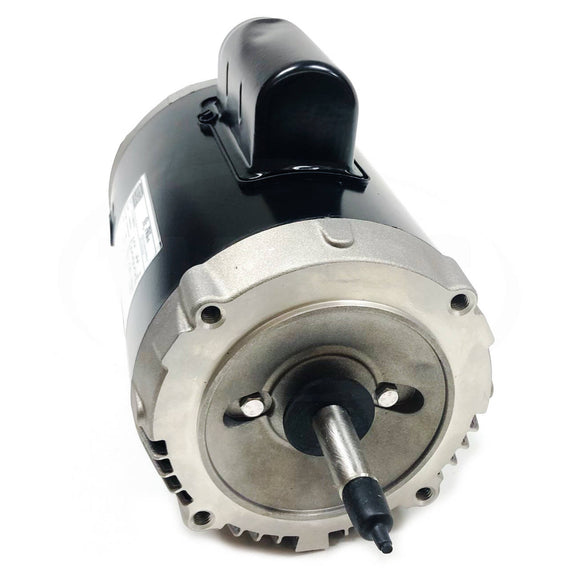

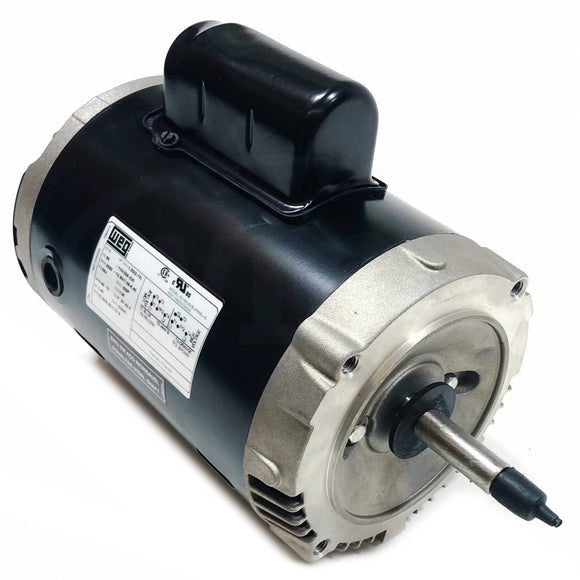

Electric Motors
| Frame | 56J |
|---|---|
| Output | 1 HP (0.75 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3500 rpm |
| Slip | 2.78 % |
| Rated voltage | 115/208-230 V |
| Rated current | 12.8/7.08-6.40 A |
| L. R. Amperes | 88.3/48.9-44.2 A |
| LRC | 6.9x(Code M) |
| No load current | 8.40/3.62-4.20 A |
| Rated torque | 1.48 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 280 % |
| Locked rotor time | 14s (cold) 8s (hot) |
| Moment of inertia (J) | 0.0472 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.40 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | CCW |
| Noise level² | 58.0 dB(A) |
| Approx. weight³ | 26.7 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
60.0 |
65.0 |
68.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.55 |
0.67 |
0.75 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | AISI 304 Stainless Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | Without Key |
| Drip Cover | Without |
| Resilient Base | Without |
