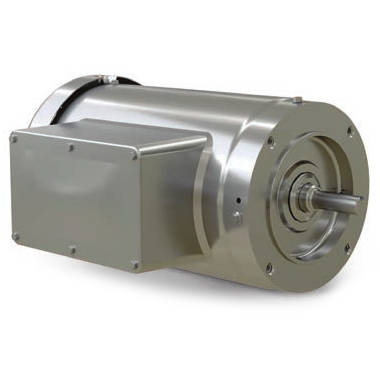

VFSWDL3509 Baldor 1HP Food Safe Stainless Steel Electric Motor, 3600RPM

$1,682.80 USD

Shipping calculated at checkout

Baldor Electric Company SKU: VFSWDL3509 Barcode: 781568862155

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56C Frame, 115/230VAC Single Phase 60Hz, C-Face, Footless

Description Product Specs Manufacturer

Specifications

Specs

Output1.000 hp
Phase1
Synchronous Speed3,600 rpm
Frequency60.00 Hz
Voltage230 V
115 V
Frame MaterialStainless Steel
Frame56C
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorNo Mounting
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current11.6 A @ 115 V
5.8 A @ 230 V
Design CodeN
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load68.0%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps5.8 A
Insulation ClassF
Inverter CodeNot inverter
KVA CodeK
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor FinishUnpainted
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size9 @ 18 AWG
@ 0 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3524L
Number of Poles2
Overall Length13.96 in
Power Factor80
Product FamilyWD All SD Non-Encapsulated
Pulley End Bearing TypeSealed Bearing
Pulley Face CodeC-Face
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusRoHS Compliant
Service Factor1.25
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed3,450 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

  • Food processing
  • High pressure washdown
  • Caustic environment
  • Pumps and wastewater
  • Outdoors
  • Sanitary washdown

Features

  • 300 series stainless steel
  • Individually welded feet for ease of cleaning
  • Welded & polished conduit box
  • Smooth heads on external drains & hardware
  • O-ring sealed endplates
  • Laser etched nameplate
  • Removable condensate drains in each endplate
  • Internal & external shaft sealing
  • No crevices for food to collect
  • 3 year warranty

Nameplate

Nameplate

CAT.NO. VFSWDL3509
SPEC. 35E4628L350G1
HP 1
VOLTS 115/230
AMP 11.6/5.8
RPM 3450
FRAME 56C HZ 60 PH 1
SER.F. 1.25 CODE K DES N CLASS F
NEMA-NOM-EFF 68 PF 80
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6205 ODE 6205
ENCL TEFC SN
SFA 13.8/6.9
NP1951A13

Performance

Performance

Performance at 230 V, 60 Hz, 1 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C2.097 Ohms A Ph / 1.1004 Ohms B Ph
Temp. Rise @ Rated Load75° C
Temp. Rise @ S.F. Load100° C
Start ConfigurationDOL
Break-Down Torque4.11 LB-FT
Pull-Up Torque3.53 LB-FT
Locked-Rotor Torque5.64 LB-FT
Starting Current39.5 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 40.0 57.0 69.0 77.0 81.0 85.0 87.0 85.0
Efficiency 0.0 36.9 52.1 60.8 65.3 66.8 66.9 66.8
Speed (RPM) 3,597 3,565 3,547 3,529 3,511 3,486 3,458 3,486
Line Amps 3.55 3.96 4.63 5.38 6.19 7.28 8.44 7.28

Performance Curves

Promo Video

  • 115VAC
  • 230VAC
  • Electric Motor
  • 56C
  • TEFC
  • 1HP
  • 3600RPM
