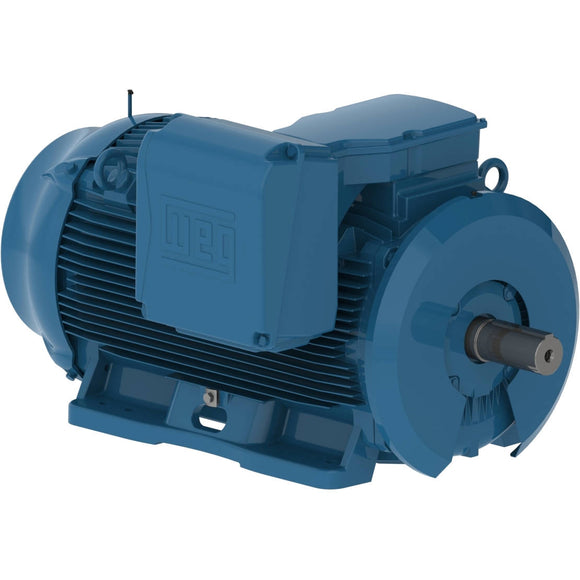

75018ET3G588/9-W22 WEG 750HP Severe Duty Electric Motor, 1800RPM

$65,882.25 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 75018ET3G588/9-W22 Barcode: 7909323667057

IC411 - TEFC, IP55, 588T/589T Frame, 460VAC 60Hz 3 Phase, 14157409, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-7/8" Keyed Shaft

Description Product Specs Manufacturer

Electric Motors

Frame 588/9T
Output 750 HP (560 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1790 rpm
Slip 0.56 %
Rated voltage 460 V
Rated current 855 A
L. R. Amperes 6156 A
LRC 7.2x(Code H)
No load current 320 A
Rated torque 2200 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 52s (cold) 29s (hot)
Moment of inertia (J) 347 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 5761 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
96.3  96.6  96.7

Power factor

50% 75% 100%
0.70  0.80  0.85
Frame 588/9T
Output 640 HP (470 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1490 rpm
Slip 0.67 %
Rated voltage 380 V
Rated current 871 A
L. R. Amperes 6271 A
LRC 7.2x(Code H)
No load current 315 A
Rated torque 2260 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 347 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 5761 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
96.2  96.5  96.5

Power factor

50% 75% 100%
0.71  0.81  0.85
Frame 588/9T
Output 640 HP (470 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1490 rpm
Slip 0.67 %
Rated voltage 400 V
Rated current 837 A
L. R. Amperes 6780 A
LRC 8.1x(Code J)
No load current 343 A
Rated torque 2260 ft.lb
Locked rotor torque 250 %
Breakdown torque 260 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 347 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 5761 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
96.2  96.5  96.5

Power factor

50% 75% 100%
0.67  0.78  0.84
Frame 588/9T
Output 640 HP (470 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1490 rpm
Slip 0.67 %
Rated voltage 415 V
Rated current 826 A
L. R. Amperes 7186 A
LRC 8.7x(Code K)
No load current 366 A
Rated torque 2260 ft.lb
Locked rotor torque 270 %
Breakdown torque 290 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 347 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 5761 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  96.5

Power factor

50% 75% 100%
0.64  0.76  0.82

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System Extended, at Drive end and Non-drive end
Space Heater Voltage 200 - 240 V
Main terminal box hole 2xNPT 4"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Application
  • Severe Duty
Enclosure
  • TEFC
Frame Size
  • 588T/589T
Horsepower
  • 750HP
Input Phase
  • 3-Phase
Input Voltage
  • 460VAC
Series
  • W22
Speed
  • 1800RPM
Type
  • Electric Motor
UPC
  • 7909323667057
Weight
  • 6111.86 lb
Mounting Type
  • Rigid Base
Frame Material
  • Cast Iron
Service Factor
  • 1.00
Full Load Efficiency
  • 96.7%
'C' Dimension
  • 69.381 Inches
