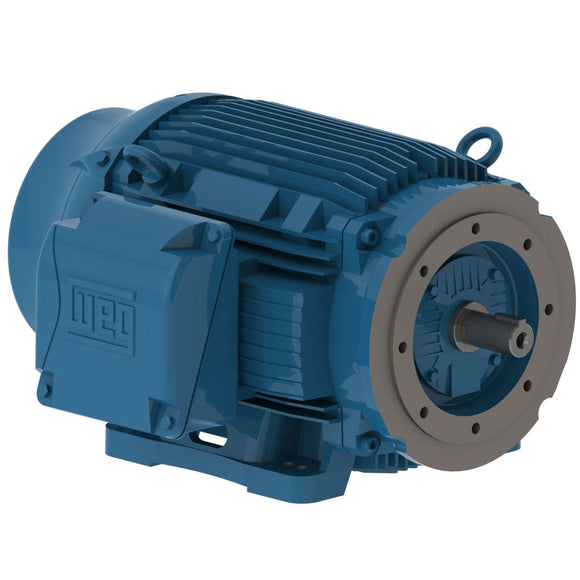

12518ET3E444TC-W22 WEG 125HP Severe Duty Electric Motor, 1800RPM

$14,434.02 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 12518ET3E444TC-W22 Barcode: 7909018220406

IC411 - TEFC, IP55, 444TC/445TC Frame, 230/460/380VAC 50/60Hz 3 Phase, 11953403, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 3-3/8" Keyed Shaft

Description Product Specs Manufacturer

Electric Motors

Frame 444/5TC
Output 125 HP
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 278/139 A
L. R. Amperes 1807/904 A
LRC 6.5x(Code G)
No load current 80.0/40.0 A
Rated torque 369 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 48s (cold) 27s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 1690 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.4  95.4

Power factor

50% 75% 100%
0.74  0.82  0.85
Frame 444/5TC
Output 100 HP (75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 139 A
L. R. Amperes 890 A
LRC 6.4x(Code G)
No load current 40.0 A
Rated torque 355 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1690 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.7  95.1  95.0

Power factor

50% 75% 100%
0.73  0.82  0.86
Frame 444/5TC
Output 100 HP (75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 136 A
L. R. Amperes 952 A
LRC 7.0x(Code H)
No load current 43.0 A
Rated torque 355 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1690 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.6  95.1  95.0

Power factor

50% 75% 100%
0.69  0.80  0.84
Frame 444/5TC
Output 100 HP (75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 132 A
L. R. Amperes 1003 A
LRC 7.6x(Code J)
No load current 45.0 A
Rated torque 354 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1690 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.3  95.1  95.2

Power factor

50% 75% 100%
0.67  0.78  0.83
Frame 444/5TC
Output 125 HP
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 168 A
L. R. Amperes 857 A
LRC 5.1x(Code E)
No load current 40.0 A
Rated torque 445 ft.lb
Locked rotor torque 160 %
Breakdown torque 180 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1690 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  94.5

Power factor

50% 75% 100%
0.79  0.85  0.86
Frame 444/5TC
Output 125 HP
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 160 A
L. R. Amperes 912 A
LRC 5.7x(Code F)
No load current 43.0 A
Rated torque 445 ft.lb
Locked rotor torque 180 %
Breakdown torque 200 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1690 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  94.5

Power factor

50% 75% 100%
0.76  0.83  0.86
Frame 444/5TC
Output 125 HP
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 155 A
L. R. Amperes 961 A
LRC 6.2x(Code F)
No load current 45.0 A
Rated torque 444 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1690 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.0

Power factor

50% 75% 100%
0.74  0.82  0.85

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Application
  • Severe Duty
Enclosure
  • TEFC
Frame Size
  • 444TC/445TC
Horsepower
  • 125HP
Input Phase
  • 3-Phase
Series
  • W22
Speed
  • 1800RPM
Type
  • Electric Motor
UPC
  • 7909018220406
Weight
  • 1690.0 lb
Mounting Type
  • Rigid Base
  • C-Face
Frame Material
  • Cast Iron
Service Factor
  • 1.15
Full Load Efficiency
  • 95.4%
'C' Dimension
  • 45.157 Inches
