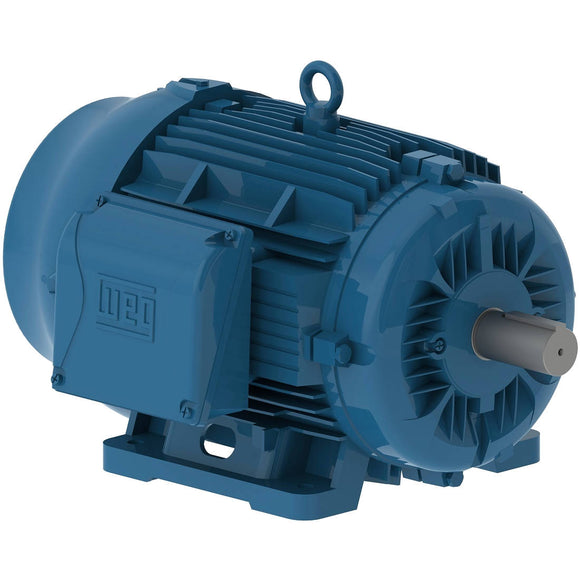

02509ET3E326T-W22 WEG 25HP Severe Duty Electric Motor, 900RPM

$6,510.35 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 02509ET3E326T-W22 Barcode: 7891327160200

IC411 - TEFC, IP55, 324T/326T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11441523, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft

Description Product Specs Manufacturer

Electric Motors

Frame 324/6T
Output 25 HP (18.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 71.8/35.9 A
L. R. Amperes 373/187 A
LRC 5.2x(Code G)
No load current 40.0/20.0 A
Rated torque 149 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 555 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.5  91.0  91.0

Power factor

50% 75% 100%
0.51  0.64  0.71
Frame 324/6T
Output 20 HP (15 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 35.3 A
L. R. Amperes 177 A
LRC 5.0x(Code G)
No load current 19.6 A
Rated torque 144 ft.lb
Locked rotor torque 190 %
Breakdown torque 229 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 555 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.3  90.1  89.6

Power factor

50% 75% 100%
0.51  0.64  0.71
Frame 324/6T
Output 20 HP (15 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 400 V
Rated current 35.6 A
L. R. Amperes 192 A
LRC 5.4x(Code H)
No load current 22.2 A
Rated torque 144 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 555 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.2  89.1  89.6

Power factor

50% 75% 100%
0.46  0.59  0.67
Frame 324/6T
Output 20 HP (15 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 735 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 36.4 A
L. R. Amperes 200 A
LRC 5.5x(Code J)
No load current 24.6 A
Rated torque 143 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 555 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.2  88.6  89.6

Power factor

50% 75% 100%
0.42  0.55  0.64
Frame 324/6T
Output 25 HP (18.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 42.3 A
L. R. Amperes 178 A
LRC 4.2x(Code E)
No load current 19.6 A
Rated torque 181 ft.lb
Locked rotor torque 150 %
Breakdown torque 180 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 555 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.5  90.2  88.5

Power factor

50% 75% 100%
0.58  0.70  0.75
Frame 324/6T
Output 25 HP (18.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 41.4 A
L. R. Amperes 190 A
LRC 4.6x(Code F)
No load current 22.2 A
Rated torque 181 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 555 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  89.5

Power factor

50% 75% 100%
0.53  0.66  0.72
Frame 324/6T
Output 25 HP (18.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 41.1 A
L. R. Amperes 197 A
LRC 4.8x(Code G)
No load current 24.6 A
Rated torque 180 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 555 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  89.5  89.5

Power factor

50% 75% 100%
0.49  0.62  0.70

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Application
  • Severe Duty
Enclosure
  • TEFC
Frame Size
  • 324T
  • 326T
Horsepower
  • 25HP
Input Phase
  • 3-Phase
Series
  • W22
Speed
  • 900RPM
Type
  • Electric Motor
UPC
  • 7891327160200
Weight
  • 595.25 lb
Mounting Type
  • Rigid Base
Frame Material
  • Cast Iron
Service Factor
  • 1.25
Full Load Efficiency
  • 91.0%
'C' Dimension
  • 31.116 Inches
