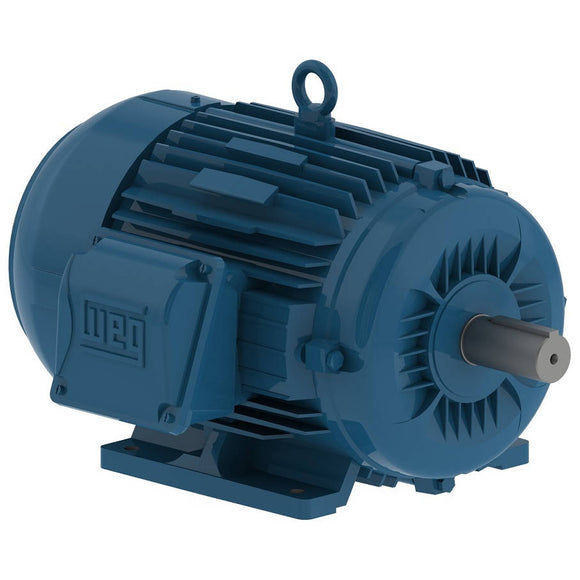

00336ET3H182T-W22 WEG 3HP Severe Duty Electric Motor, 3600RPM

$679.07 USD $763.00 USD Save $83.93 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00336ET3H182T-W22 Barcode: 7909158051441

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
With cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Complies with NEMA Premium efficiency level and carry CSA Certified for Division 2 on the Nameplate as standard.
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Electric Motors

Frame 182/4T
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 575 V
Rated current 2.90 A
L. R. Amperes 25.0 A
LRC 8.6x(Code K)
No load current 1.04 A
Rated torque 4.42 ft.lb
Locked rotor torque 250 %
Breakdown torque 360 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 0.1889 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 86.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  86.5  86.5

Power factor

50% 75% 100%
0.75  0.84  0.88
