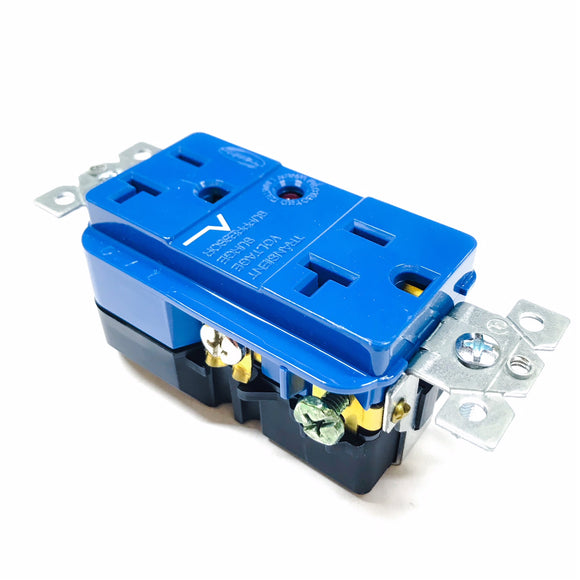

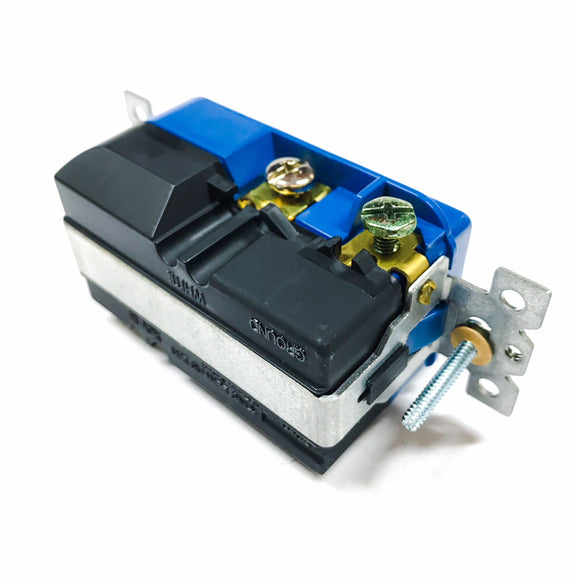

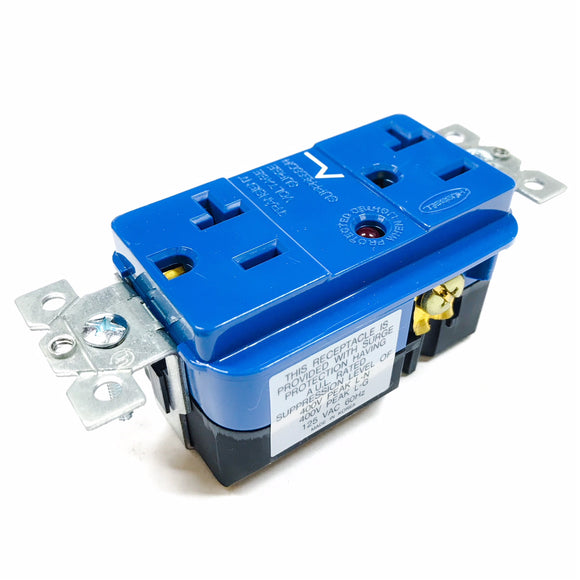

HBL5360S Hubbell Receptacle 20 Amps 125VAC

Product Details
General
Application Decorator Duplex
Color Blue
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Indicator(s) Type LED and Audible Alarm
Item Type Surge Protection Receptacles
Material Composite
Material - Mounting Hardware Mounting Screws
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Outlet Straight Blade
Performance
Electrical - Protection Modes - Normal and Common Modes
Electrical - Response Time - Approximately 5 ns
Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs)
Electrical - Voltage - 120V AC + 10% - 15%
Environmental - Flammability - UL 94V-2
Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
Response Time 5
Series Specification Grade
Type Duplex
UPC 783585060231
Dimensions
Display Size Standard
Electrical Ratings
Amperage Rating 20 A
Connectivity Terminal Screws
Current / Amperage Rating 20 A
Current Rating 20
Frequency Rating 60 Hz
Phase Single Phase
Voltage Rating 125 V
Voltage Rating Description 125 V
