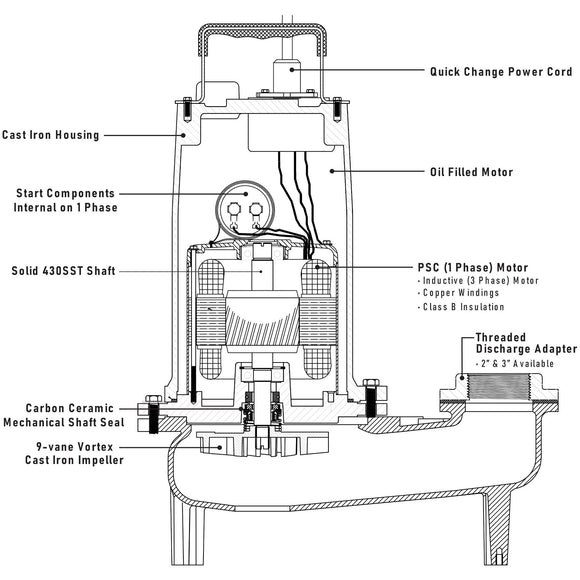

Features
- Heavy duty cast iron construction
- Oil-filled continuous duty rated PSC/Induction motor
- 9 Vane Vortex cast iron impeller
- 3” Flanged discharge, 2” NPT adapter
- 2” Solids handling
Specifications
| Brand | Ashland Pump |
|---|---|
| Model | SWH50M3-20 |
| Switch Type | Manual |
| HP | 1/2HP |
| Voltage | 230VAC 60Hz 3 Phase |
| RPM | 3450 RPM |
| NEMA Start Code | P |
| Full Load Amps | 4.0 Amps |
| Cord Power Size | 16AWG/4C |
| Cord Type | SOW |
| Cord O.D. | 0.46" |
| Discharge Size | 2" Flanged with 2" & 3" NPT Adapters |
| Impeller Type | 9 Vane Vortex Cast Iron |
| Cable Length | 20' |
| Solids Handling | 2" |
| Maximum Liquid Temperature | 104°F - Intermittent |
| Acceptable pH Range | 6 - 8 |
| Motor Housing | Cast Iron |
| Casing | Cast Iron |
| Impeller | Cast Iron |
| Motor Shaft | SS416 |
| Hardware | SST |
| O-Rings | NBR |
| Mechanical Seal | Single Mechanical Carbon Ceramic |
| Upper Bearing | 6203 |
| Lower Bearing | 6203 |
| RPM | 3450 RPM |
| Motor Type | PSC/Induction |
| Gen Insulation Class | B |
| Stator Winding Class | B |
| Maximum Stator Temperature | 130°C |
| Voltage Tolerance | +/-10% |
| Motor Protection | Thermally Protected |
| HP | 1/2HP |
| Service Factor | 1.00 |
Dimensions
Performance Curve
Links
Ashland SWH50 Electrical Data (PDF, 1 page, 82KB)
Ashland SWH50 Performance Data (PDF, 1 page, 82KB)
Ashland SWH50 Technical Data (PDF, 1 page, 80KB)
Ashland SWH50, SWH100, SWH150, SWH200, SWHD100, SWHD150 & SWHD200 Operation, Performance, Specifications and Parts Manual (PDF, 51 pages, 2.67MB)
Ashland SWH50 Catalog Sheet (PDF, 2 pages, 483KB)
Ashland SWH50 Dimensional Data (PDF, 1 page, 125KB)
