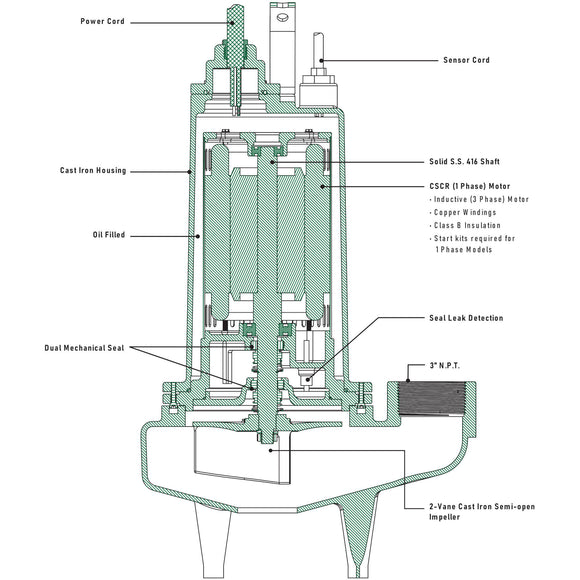

Features
- Heavy duty cast iron construction
- Oil-filled continuous duty CSCR (Single Phase) or PSC (3 Phase) Motor
- 2-Vane Semi-open Cast Iron Impeller
- 2” Solids handling
Specifications
| Brand | Ashland Pump |
|---|---|
| Model | SWFD300M6-20 |
| Switch Type | Manual |
| Power | 3 HP |
| Voltage | 208VAC 60Hz 3 Phase |
| RPM | 1750 RPM |
| Full Load Amps | 18.0 Amps |
| NEMA Start Code | D |
| Cord Type | SOW |
| Cord Power Size | 12AWG/4C |
| Cord O.D. | 0.70" |
| Discharge Size | 3" NPT |
| Impeller Type | 2-Vane Semi-Open Cast Iron |
| Cable Length | 20' |
| Solids Handling | 2" |
| Maximum Liquid Temperature | 104°F - Intermittent |
| Acceptable pH Range | 6 - 8 |
| Motor Housing | Cast Iron |
| Casing | Cast Iron |
| Impeller | Cast Iron |
| Motor Shaft | SS416 |
| Hardware | SST |
| O-Rings | NBR |
| Mechanical Seal | Dual Mechanical Carbon Ceramic |
| Upper Bearing | 6203 |
| Lower Bearing | 6206 |
| RPM | 1750 RPM |
| Motor Type | CSCR (Single Phase) Induction (3 Phase) |
| Gen Insulation Class | B |
| Stator Winding Class | B |
| Maximum Stator Temperature | 130°C |
| Voltage Tolerance | +/-10% |
| HP | 3HP |
| Service Factor | 1.00 |
Dimensions
Performance Curve
Links
Ashland SWFD300 Electrical Data (PDF, 1 page, 71KB)
Ashland SWFD300 Features (PDF, 1 page, 128KB)
Ashland SWFD300 Performance Data (PDF, 1 page, 80KB)
Ashland SWFD300 Technical Data (PDF, 1 page, 77KB)
Ashland SWFD300 Catalog Sheet (PDF, 2 pages, 485KB)
Ashland SWFD300 Dimensional Data (PDF, 1 page, 125KB)
