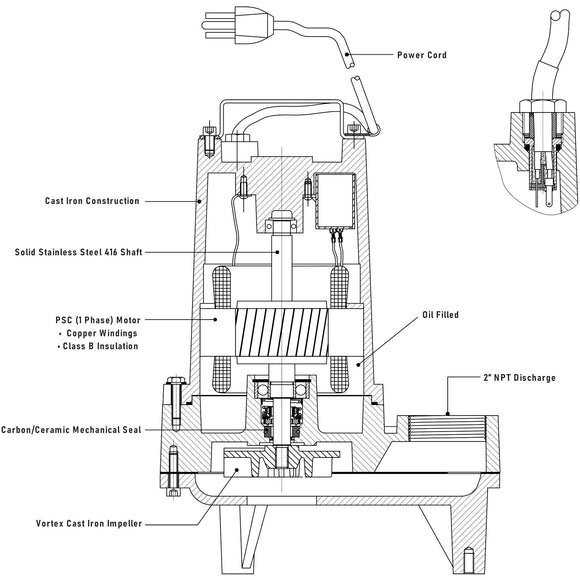

Features
- Heavy duty cast iron construction
- Oil-filled continuous duty rated PSC motor
- Recessed vortex cast iron impeller
- Upper and lower ball bearing design
- 3/4” solids handling
- 2” NPT discharge
Specifications
| Brand | Ashland Pump |
|---|---|
| Model | EP100M2-20 |
| Switch Type | Manual |
| HP | 1HP |
| Voltage | 230VAC 60Hz Single Phase |
| RPM | 3450 RPM |
| Full Load Amps | 11.8 Amps |
| NEMA Start Code | H |
| Cord Type | SOW |
| Cord Power Size | 16AWG/3C |
| Cord O.D. | 0.385-0.430" |
| Breaker Size | 15 Amps |
| Run Capacitor | 450VAC 35MFD +/-5% |
| Discharge Size | 2" NPT |
| Impeller Type | 2-Vane Cast Iron Closed |
| Cable Length | 20' |
| Maximum Liquid Temperature | 104°F Intermittent |
| Acceptable pH Range | 6 - 8 |
| Maximum Stator Temperature | 130°C |
| Sensor Cord Type | 16/3C |
| Motor Housing | Cast Iron |
| Casing | Cast Iron |
| Impeller | Cast Iron |
| Motor Shaft | Stainless Steel 430 |
| Hardware | SST |
| O-Rings | NBR |
| Mechanical Seal | Single Mechanical Carbon Ceramic |
| Upper Bearing | 6203 |
| Lower Bearing | 6203 |
Dimensions
Performance Curve
Links
Ashland EP100 Electrical Data (PDF, 1 page, 43KB)
Ashland EP100 Features Data (PDF, 1 page, 92KB)
Ashland EP100 Performance Data (PDF, 1 page, 48KB)
Ashland EP100 Technical Data (PDF, 1 page, 49KB)
Ashland EP50, EP75, EP100 & EP150 Operation, Performance, Specifications and Parts Manual (PDF, 39 pages, 2.42MB)
Ashland EP100 Catalog Sheet (PDF, 2 pages, 323KB)
Ashland EP100 Dimensional Data (PDF, 1 page, 188KB)
