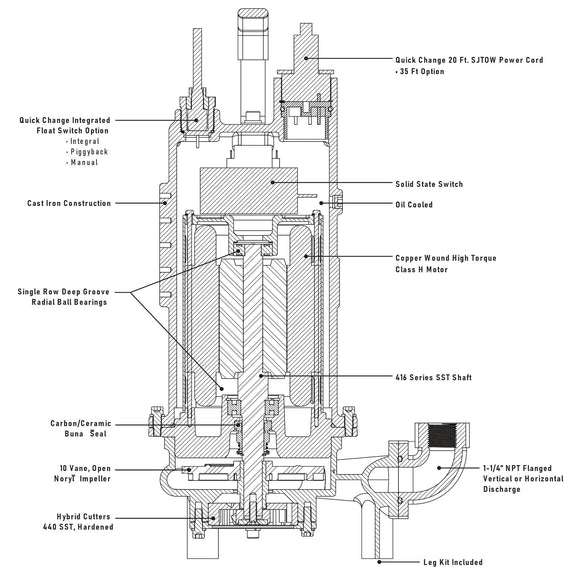

Features
- Heavy duty cast iron construction
- Single Carbon/Ceramic Buna-N Seal
- 10 vane, open Noryl impeller
- Quick change power cords
- Quick change Integrated Float Switch Options
- Single row deep groove radial ball bearings
- 440C SS Hybrid cutting system
- Vertical or horizontal discharge
Specifications
| Brand | Ashland Pump |
|---|---|
| Model | AGPR200M2-35 |
| HP | 3/4HP |
| Voltage | 230VAC 60Hz Single Phase |
| RPM | 3450 RPM |
| Full Load Amps | 15 Amps |
| NEMA Start Code | G |
| Cord Type | SJTOW |
| Cord Power Size | 14 AWG/3C |
| Cord O.D. | 0.36-0.37" |
| Solid State Relay | SAMUSCO ESC225P |
| Start Capacitor | Mars 11068 |
| Run Capacitor | Mars 12248 |
| Switch Type | N/A |
| Discharge Size | 1-1/4" NPT + Flanged Horizontal with Vertical Adapter |
| Impeller Type | 10-Vane Noryl |
| Cable Length | 35' |
| Solids Composition | Domestic Wastewater with Fibrous Solids |
| Maximum Liquid Temperature | 140°F - Intermittent 104°F - Continuous |
| Acceptable pH Range | 6 - 8 |
| Winding Insulation | 145°C |
| Insulation Class | H |
| Sensor Cord Type | 14AWG/3C (Single Phase) |
| Motor Housing | Cast Iron |
| Casing | Cast Iron |
| Impeller | Noryl |
| Motor Shaft | Stainless Steel 416 |
| Hardware | SS |
| O-Rings | BUNA-N |
| Mechanical Seal | Carbon Ceramic |
| Upper Bearing | 6203 |
| Lower Bearing | 6205 |
| Cutters | 440 Stainless Steel – Case Hardened 58-60 Rockwell |
| Motor Type | CSCR (Single Phase) |
| Voltage Tolerance | +/-10% |
| Service Factor | 1.42 |
Links
Ashland AGPR Electrical Data (PDF, 1 page, 40KB)
Ashland AGPR Features Data (PDF, 1 page, 194KB)
Ashland AGPR Performance Data (PDF, 1 page, 109KB)
Ashland AGPR Technical Data (PDF, 1 page, 46KB)
Ashland APGR Catalog Sheet (PDF, 2 pages, 896KB)
Ashland APGR Dimensional Data (PDF, 1 page, 105KB)
Minimum Submergence Level Recommendations (PDF, 1 page, 162KB)
