Description
Industry Standard
- Used for years by pool pump manufacturers

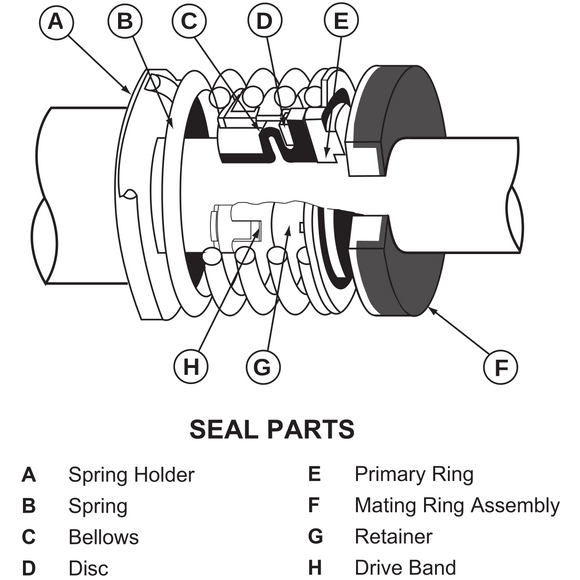

- Materials of Construction: Buna Elastomers, Molded Plastic Primary Ring, Ceramic Seat, Stainless Steel Hardware
- Proven Reliability in residential chlorine pools
- Good For low temperatures
Specifications

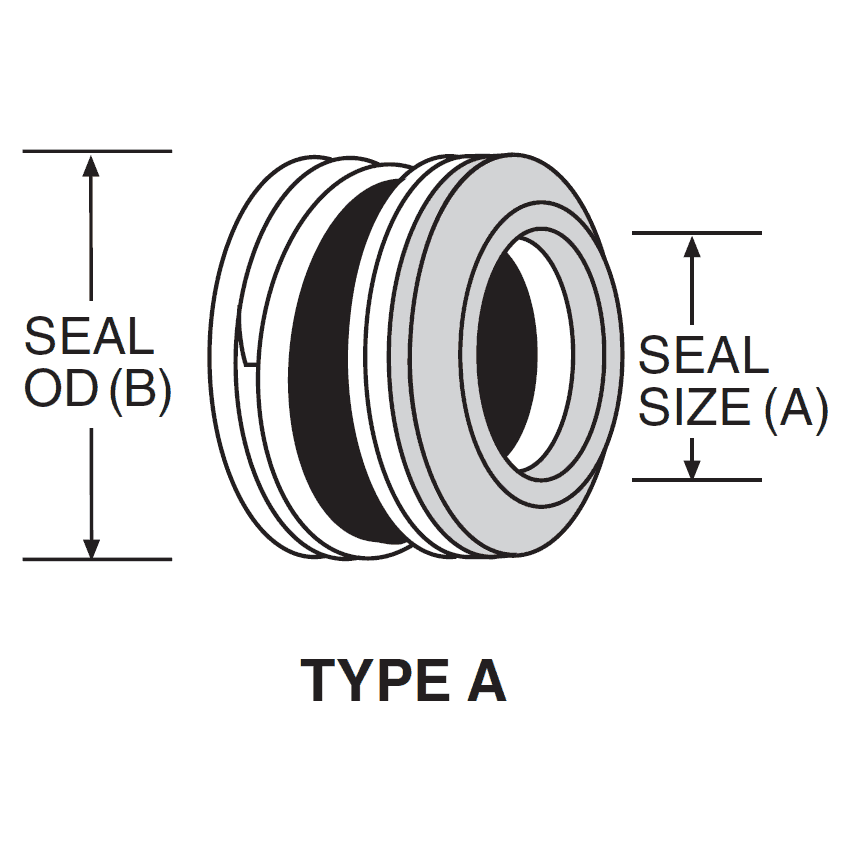

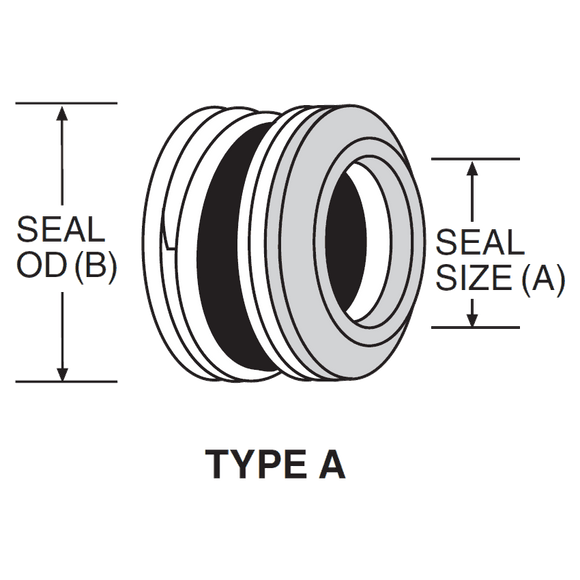

| Seal Size | 5/8" |
|---|---|
| Head Figure | A |
| Head Outside Diameter | 1.218" |
| Head Operating Height | 0.718" |
| Mating Ring Figure | 1 |
| Mating Ring Bore | 1.25" |
| Mating Ring Thickness | 0.406" |
| Material Code | BMFJF Buna Secondary Seals Molded Plastic Primary Rings Stainless Steel Metal Parts Ceramic Mating Rings Stainless Steel Springs |
| Notes | |
| UPC | 852661157087 |
| Weight | 0.12 lbs |
| Pressure Rating | PSI |
| Temperature | °F to 225°F |
| Country of Origin | Mexico |
| U.S. Seal Manufacturer Part Number(s) | PS-200 (General Service) PS-3960 (Carbon Upgrade) PS-3867 (Ozone / Salt Service) PS-1901 (SCS Series) VG-200 (Value Guard) |
| Pump Nameplate Data Cross Reference | A-C PUMP C1, CR, DDH, DG, DGH, HH, HHS, R, RH, RHS, RS, WH ARNESON PRODUCTS, INC. Pool Sweep ASTRAL POOL Astramax BERKELEY New Style Mid-Jet S4, HS, CIMPS, CIMPHS, CIXPS, CIXPRS, C1-1/4MPS, B1-1/2APKS, D1-1/2MPKS CARVER PUMP CO. B20-1, B1-2-1-1/4 CRANE-DEMING Fig. 4910-63, 4357, 4358 FAIRBANKS MORSE H, HC, HV GECKO ALLIANCE, INC. Circ-Master®, Dominator® High Head, Dominator® Medium Head, Flo-Master® Pond-Flo, Tub-Master® HAYWARD INDUSTRIES, INC. Cast Iron JACUZZI® Cygnet K,KM, Vector LVLA, J, JCM, LCM, LCU and LR Series KENCO 139A New Style PAC-FAB Challenger®, Dynamite, Dynamo®, Dynatron®, Pinnacle® PEABODY-BARNES MFG. For Comet, Rocket Econo 25, 31, 33, 35, 48, 49, 50, 52, 102DM and 740DM STA-RITE INDUSTRIES Dura-Glas®, Max-E-GlasTM Series PE, PEA, P2R and P2RA WAYNE COMBUSTION SYSTEMS Series SJ-CJX WORTHINGTON 1-1/40CS-5, 1-1/4OM-5 |
| Cross Reference | A-C PUMP 52-104-969-803, 52-104-969-813, 52-104-969-823 AERMOTOR PUMPS SJ-45 AMERICAN MACHINE AND TOOL CO. (AMT) MS-626V ARNESON PRODUCTS, INC. A-8 ASTRAL POOL Series 1800 BAKER-HYDRO 35B1178 BELL & GOSSETT 180013 BERKELEY S08019, S20790 BURKS® PUMPS 17038 CARTER PUMPS, INC. 1S-5005A, 1S-5054 C-B TOOL CO. 2661 CH&E MFG. CO. W105-7 CHAMPION INDUSTRIES 106467 CHICAGO PUMP 2658090 CRANE PUMPS & SYSTEMS 0000015 DEMPSTER INDUSTRIES, LLC 907-06030 DOMESTIC PUMP 180013 DOUGHBOY INDUSTRIES 306-1006 DRESSER INDUSTRIES 125.101/113-1 EVERITE 2544 FAIRBANKS MORSE 82723, 82470-75 FRANKLIN ELECTRIC CO., INC. 1000206, 106196105 FRANKLIN PUMP SYSTEMS 10000206 GECKO ALLIANCE, INC. 92500150, 92500151 GORMAN-RUPP CO. S756, S1531, 12874-010 HAYWARD INDUSTRIES, INC. SPX1250XZ2C HOMELITE CORP. 62729 HYDROMATIC PUMP CO. 00083000, 00083001, 14525A010 INGERSOLL-DRESSER PUMPS AND COMPRESSORS CPM-6252C1, CPM-6258C1 JACUZZI® 10-467, 10-0002-06, 10-1436-00 KNIGHT EQUIPMENT 9600745 LANCASTER PUMP CO. 2661 MONARCH PUMPS 240160 MYERS, F.E. 10840A1, A2, A3, 14525A000, 1425A010, 16275A PAC-FAB 354545 PACIFIC PUMPING CO.SL-7101, SL-7741, K102-1, 91909744 PEABODY-BARNES MFG. 11397-12839, 12703 PEERLESS PUMP CO. 2658090 PENTAIR POOL PRODUCTS 353253S, 354545S RICE 21-024 ROMAR FILTER 618-001 SCOT PUMP 101.000.340 SHERWOOD BRASS 10159 STA-RITE INDUSTRIES 17304-0100, 17304-0100S, 17038 STERLING FLUID SYSTEMS 96667758, 1181377 000 STEVENS PUMP CO. 16-062-03 TACO®, INC. 172-009, 172-017 TEEL PUMP 1R312, 5P405, 5P406 WAYNE COMBUSTION SYSTEMS 15559, 56104 WORTHINGTON 043008-00 |
