Specifications
• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
| Brand | Browning Various |
|---|---|
| Part Number | BK3612 BK36X3/4 |
| Bore | 3/4" |
| Sheave Cross Section | BK |
| Outside Diameter | 3.75" |
| Pulley Diameter “A” | 3.00" |
| Pulley Diameter “B” | 3.40" |
| Type | 2 |
| Pulley Width “F” | 7/8" |
| Dimension “L” | 1-5/32" |
| Dimension “P” | 13/32" |
| Recess Depth “C” | 1/8" |
| Approximate Weight | 1.5 lbs |

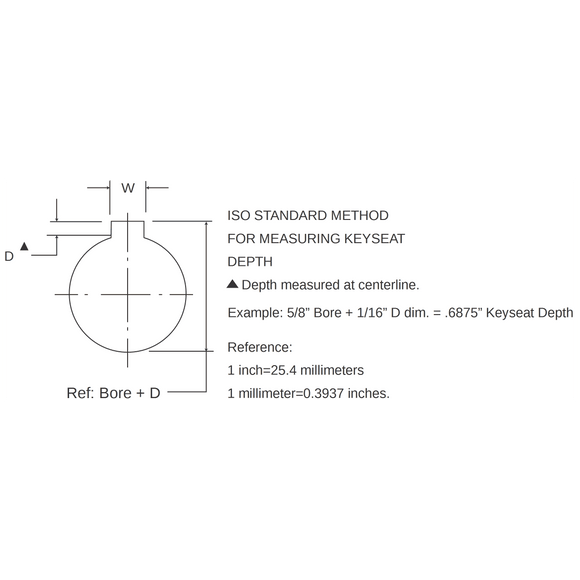

| Keyseat (WxD) | 3/16" x 3/32" |
| Set Screw(s) | Yes, 2 |
| Country of Origin | Various |
