H15 AMEC "H" Style Taper Bushing, 15/16" Bore-1
H15 AMEC "H" Style Taper Bushing, 15/16" Bore-2

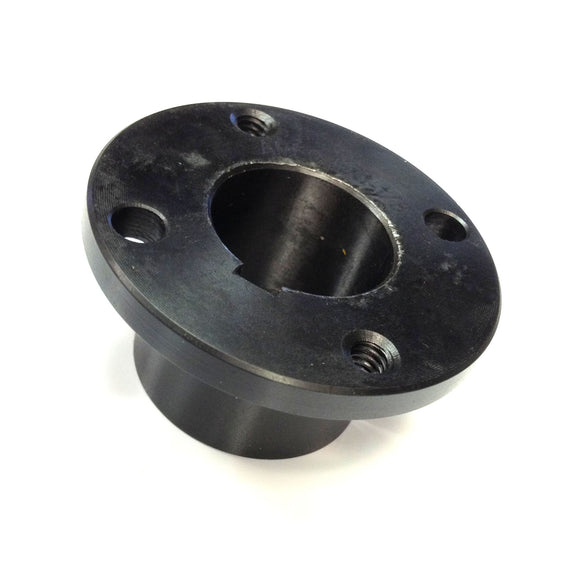

H15 AMEC "H" Style Taper Bushing, 15/16" Bore

$5.90 USD

Shipping calculated at checkout

AMEC Industry, Inc SKU: H15

30 Day
Return Policy

Ships Fast
in 24 hours

7

In stock!

Specifications

Brand Various
AMEC
Part Number H15
H-15
HX15/16
Bore 15/16"
Keyseat 1/4" x 1/8"
UPC
Country of Origin Various

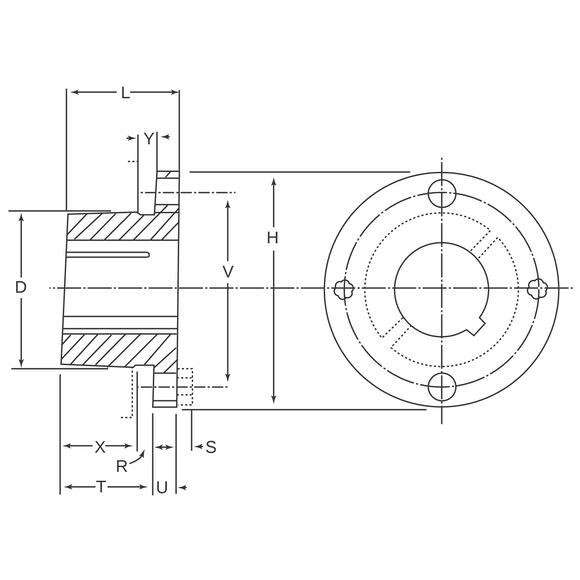

Dimension "L" 1-1/4"
Dimension "U" 1/4"
Dimension "T" 1"
Dimension "D" 1.625" (Large End)
1.570" (Small End)
Dimension "H" 2-1/2"
Dimension "V" 2"
Dimension "X" 7/8"
Dimension "Y" 3/16"
Dimension "R" 1/8"
Dimension "S" 3/16"
Number of Screws/Bolts 2
Screw/Bolt Size 1/4” x 3/4”
Wrench Torque 95 Inch-lbs
