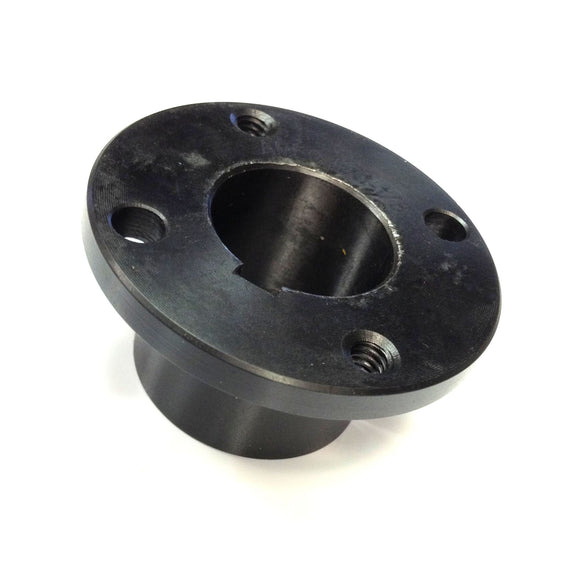

H14 AMEC "H" Style Taper Bushing, 7/8" Bore-1
H14 AMEC "H" Style Taper Bushing, 7/8" Bore-2

H14 AMEC "H" Style Taper Bushing, 7/8" Bore

$8.03 USD

Shipping calculated at checkout

AMEC Industry, Inc SKU: H14

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Specifications

Brand Various
AMEC
Part Number H14
H-14
HX7/8
Bore 7/8"
Keyseat 3/16" x 3/32"
UPC
Country of Origin Various

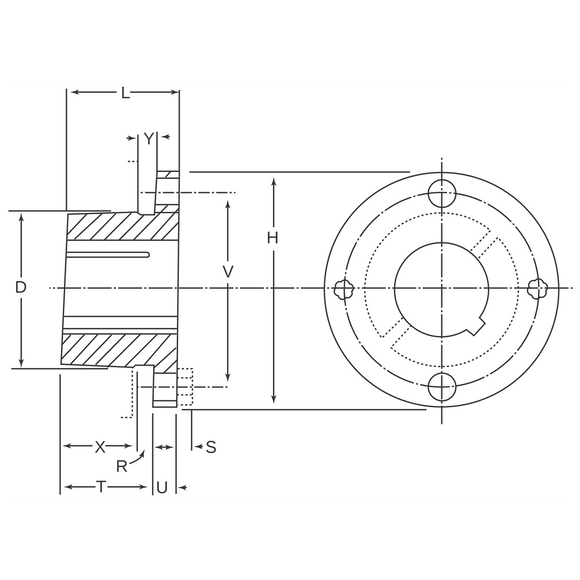

Dimension "L" 1-1/4"
Dimension "U" 1/4"
Dimension "T" 1"
Dimension "D" 1.625" (Large End)
1.570" (Small End)
Dimension "H" 2-1/2"
Dimension "V" 2"
Dimension "X" 7/8"
Dimension "Y" 3/16"
Dimension "R" 1/8"
Dimension "S" 3/16"
Number of Screws/Bolts 2
Screw/Bolt Size 1/4” x 3/4”
Wrench Torque 95 Inch-lbs
