BK3012 3.15" X 3/4" BK Single Groove V-Pulley-1
BK3012 3.15" X 3/4" BK Single Groove V-Pulley-2
BK3012 3.15" X 3/4" BK Single Groove V-Pulley-3

BK3012 3.15" X 3/4" BK Single Groove V-Pulley

$12.38 USD

Shipping calculated at checkout

Browning (Emerson Power Transmission Products) SKU: BK3012

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Browning
Various
Part Number BK3012
BK30X3/4
Bore 3/4"
Sheave Cross Section BK
Outside Diameter 3.15"
Pulley Diameter “A” 2.40"
Pulley Diameter “B” 2.80"
Type 2
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 0.9 lbs

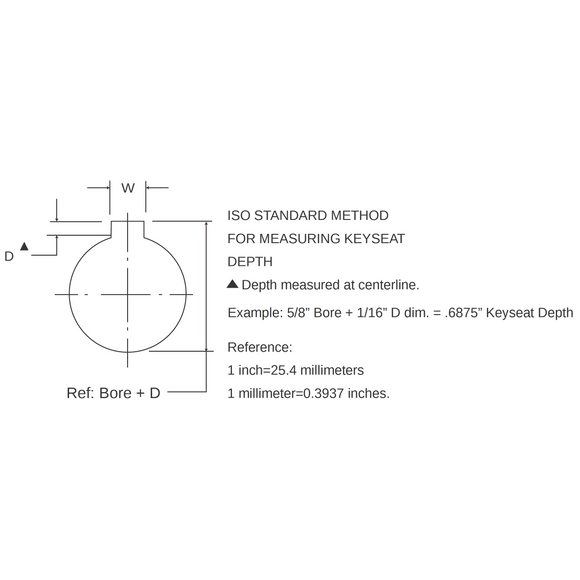

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
