BK3010 AMEC 3.15" X 5/8" BK Single Groove V-Pulley

$12.10 USD

Shipping calculated at checkout

AMEC Industry, Inc SKU: BK3010

30 Day
Return Policy

Ships Fast
in 24 hours

4

In stock!

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Part Number BK30X5/8
BK3010
Bore 5/8"
Sheave Cross Section BK
Outside Diameter 3.15"
Pulley Diameter “A” 2.40"
Pulley Diameter “B” 2.80"
Type 2
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 0.9 lbs

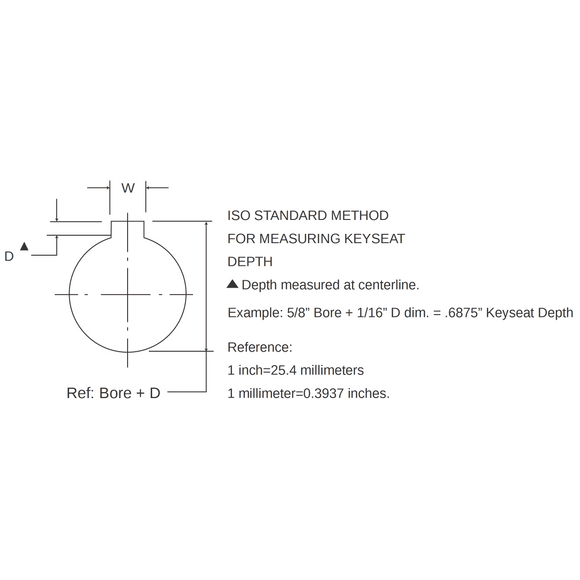

Keyseat (WxD) 3/16" x 3/32"
Set Screw Yes, 2
Country of Origin China
